Home > Products > Sludge treatment equipment > Mud Dehydration Equipment: Trihydrogen Purification Body
Mud Dehydration Equipment: Trihydrogen Purification Body
- 100 Piece / Pieces per Month
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Product Details
Brand Name: | Guan Cheng Heavy Industry | Place of Origin: | China | Model Number: | HJKBNM |
Product Description
Our company has developed a rapid sewage purification equipment -- a trihydrogen purifier -- to deal with the non-treatment, non-recycling and displacing of sand waste water in the sand washing industry, and the severe destruction of water systems in rivers, mountains, cities and villages. The product can be combined with production machinery and equipment to form a zero-emission system production line, which is widely used in the tailwater purification treatment of sand and stone aggregate factory, precious metal processing plant, ceramics, glass and other industries.

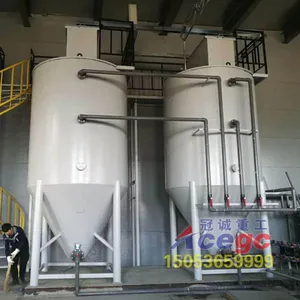

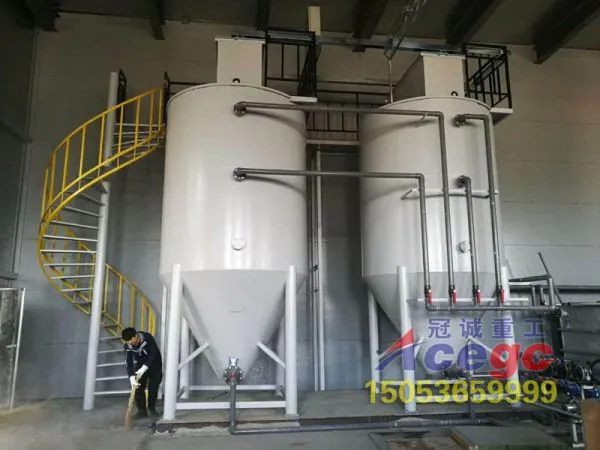

The product equipment is a rapid purification sedimentation device, which can be combined with production machinery and equipment to form a system production line. It is widely used in stone aggregate factory, precious metal processing plant, ceramics, glass and other industries. Based on the traditional vertical sedimentation equipment, the trihydrogen purification body has improved the structure of the internal feed tube, which has greatly improved the sedimentation efficiency. The pool body is circular, and the suspension is deposited into the bottom of the tank under the influence of gravity. In the conical sludge bucket, Clear water is discharged from the overflow Weir around the upper end of the pool. The overflow port is provided with a slag filter device and a baffle to ensure the water quality.
Trihydrogen purification is a solid-liquid separation device based on gravity sedimentation. It can increase the slurry wastewater containing 2 % to 15 % of the solid content through gravity deposition to a concentration of 60 % to 70 % of the mud, and the upper part of the tank can achieve water overflow. In order to achieve the purpose of sewage purification, solid liquid separation. Work flow: wastewater from the treatment material enters the center feed tube through the material channel, and passes through a series of actions such as slow flow, flocculation, etc., so that the thickened bottom flow mud is discharged from the discharge outlet at the bottom of the tank and enters the filter press and other equipment. Filter and other equipment, filter into mud cake. The upper part of the tank produces a clean water(overflow clearance liquid) which is discharged from the top outlet. The clear water can be recycled to achieve zero waste water discharge.
Mud Dehydration Equipment: Instructions for Use and Maintenance of Trihydropurification Bodies
1, the correct use of flocculants: to achieve the correct injection of coagulants, must master the changes in water quality and water quantity. The turbidity, pH, water temperature and alkalinity of the raw material pulp are measured at regular intervals, and the dosage is adjusted according to the changes in water quality and quantity. To prevent the occurrence of drug accidents.
2, timely sludge discharge: According to the slurry concentration calculation of sludge volume, timely sludge disposal, when the sludge should be emptied, use the washing method to clear the mud to avoid excessive accumulation of mud, affecting the water quality.
3, when the purification tank is no longer used, the internal water and mud should be emptied and washed with water
