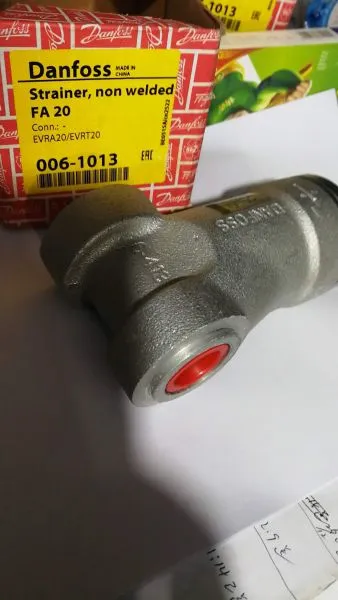

Danfoss Strainer type FA15 FA20 006-1013 Filters product introduction
Strainer type FA with interchangeable filter insert is used in lines carrying fluorinated refrigerants,ammonia, water, brine, oil, and gas.
Danfoss Strainer type FA15 FA20 006-1013 Filters Features
• Retains contaminants,
e.g. slag, and weld beads and swarf.
• Pressure drop insignificant
• Classification: DNV, CRN, BV, EAC etc.
To get an updated list of certification on the
products please contact your local Danfoss
Sales Company.
Danfoss Strainer type FA15 FA20 006-1013 Filters Technical data
• Temperature of media
-50 – +140°C
• Max. working pressure
PS = 28 bar
• Max. test pressure
p' = 42 bar

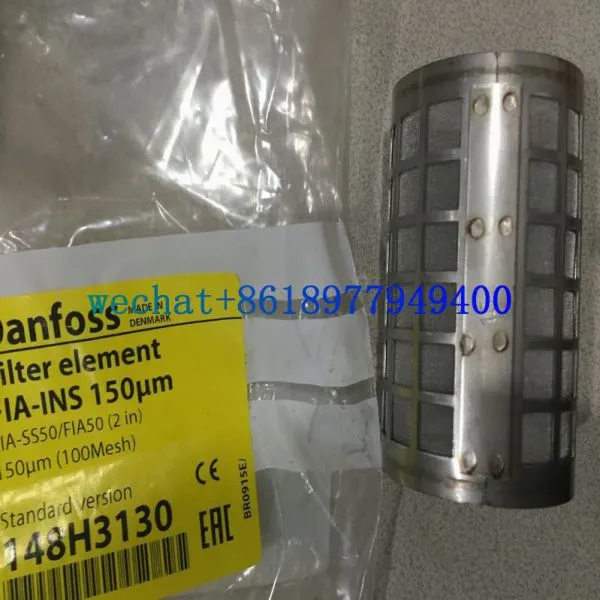

• Filter insert
Stainless steel weave, mesh size 150µ (100
mesh)
Danfoss Strainer type FA15 FA20 006-1013 Filters Technical selection
Type Application
Connection to valve
or pipeline
Strainer area
cm 2
Strainer vol.
cm 3
k v value 1 )
m 3 /h
Staybolts Code no.
FA 15
For direct
fitting on
valve
6 F, TE 12, CVM
40 68
3.3 M12 × 180 006-0040 2 )
TEA 20, TEAT 20, TEVA 20 3.3 M12 × 170 006-0042 2 )
EVR 15, EVRA 3 3.3 M12 × 188 006-0043 2 )
EVRA/T 10-15 3.3 M12 × 107 006-1012 2 )
FA 20
EVR 20
60 145
7.0 M12 × 240 006-0046 2 )
TEA 85, TEAT 85, TEVA 85 7.0 M12 × 206 006-0048 2 )
EVRA/T 20 7.0 M12 × 127 006-1013 2 )
FA 15
For fitting
in
pipelines
1 / 4 in. weld flanges
40 68
1.9 M12 × 127 006-0050 3 )
3 / 8 in. weld flanges
2.6 M12 × 127 006-0051 3 )
1 / 2 in. weld flanges
3.5 M12 × 127 006-0052 3 )
3 / 4 in. weld flanges
3.5 M12 × 127 006-0053 3 )
1 / 2 in. solder flanges
2.6 M12 × 127 006-0057 3 )
5 / 8 in. solder flanges
3.4 M12 × 127 006-0058 3 )
3 / 4 in. solder flanges
3.2 M12 × 127 006-0059 3 )
7 / 8 in. solder flanges
3.5 M12 × 127 006-0075 3 )
1 in. solder flanges 3.5 M12 × 127 006-0060 3 )
FA 20
1 / 2 in. weld flanges
60 145
5.1 M12 × 160 006-0065 3 )
3 / 4 in. weld flanges
7.4 M12 × 160 006-0066 3 )
1 in. weld flanges 7.4 M12 × 160 006-0067 3 )
5 / 8 in. solder flanges
5.1 M12 × 160 006-0071 3 )
1 1 / 8 in. solder flanges 7.3 M12 × 160 006-0074 3 )
