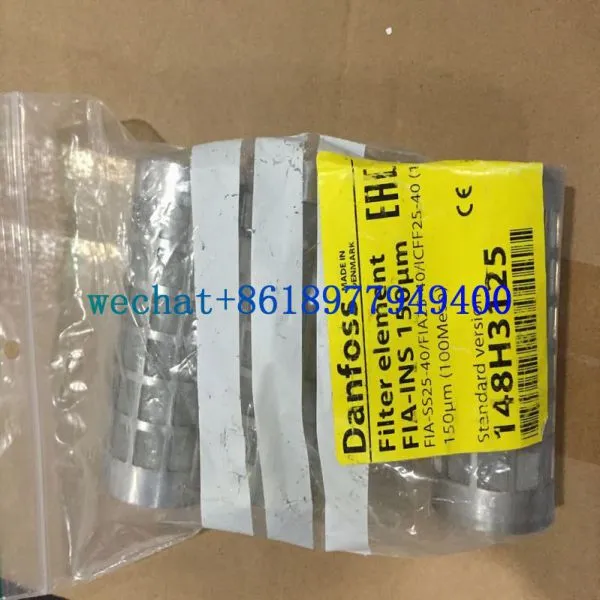

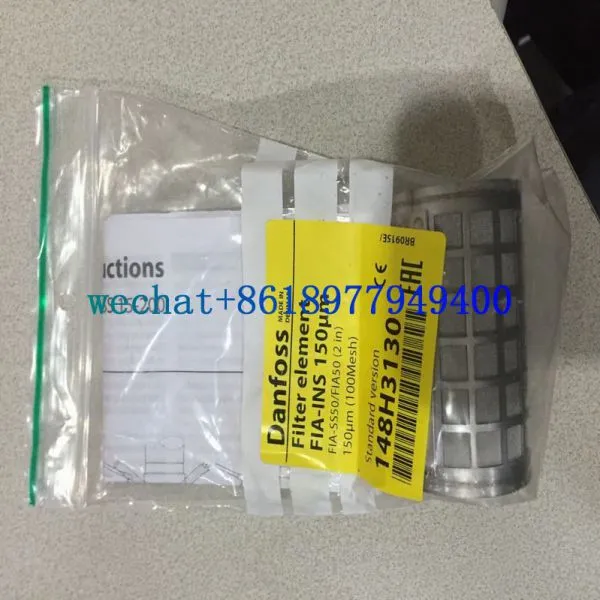

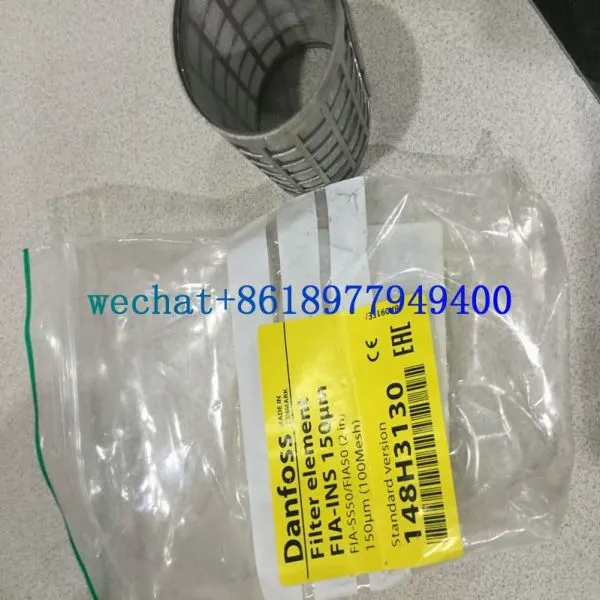

Danfoss Strainer insert 150µ 148H3125 148H3130-3119 strainer filter Features
• Applicable to HCFC, HFC, R717 (Ammonia),
R744 (CO 2 ) and all flammable refrigerants.
• Modular Concept:
– Each valve housing is available with several
different connection types and sizes.
– Possible to convert FIA strainers to any
other product in the Flexline TM SVL family
(shut-off valve, hand operated regulating
valve, check & stop valve or check valve) just
by replacing the complete top part.
• Fast and easy overhaul service. It is easy to
replace the top part and no welding is needed
• Filter net of stainless steel mounted direct
without extra gaskets means easy servicing
• Two types of strainer inserts are available:
- A plain insert of stainless steel.
- A pleated insert (DN 15-200) with extra
large surface, which ensures long intervals
between cleaning and low pressure drop.
• FIA 15 – 40 ( 1 ⁄ 2 – 1 1 ⁄ 2 in):
A special insert (50µ) can be used in
combination with a standard version when
cleaning a plant during commissioning.
• FIA 50 – 200 (2 – 8 in):
A large capacity filter bag (50µ) can be inserted
for cleaning plant during commissioning.
• FIA 80-200 (3 – 8 in) can be equipped with a
magnetic insert for detention of iron particles
and other magnetic particles.
• Each strainer clearly marked with type, size and
performance range
• Housing and bonnet of low temperature steel
in accordance with the requirements of the
Pressure Equipment Directive and those of
other international classification authorities
• Temperature range:
-60 – 150 °C / -76 – 302 °F
• Max. working pressure:
52 bar g / 754 psi g
• Classification: DNV, CRN, BV, EAC etc.
To get an updated list of certification on the
products please contact your local Danfoss
Sales Company
Danfoss Strainer insert 150µ 148H3125 148H3130-3119 strainer filter selection
Ordering
Size Type FIA
Without
strainer
insert
Strainer
insert
100µ
150 mesh
Strainer
insert
150µ
100 mesh
Strainer
insert
250µ
72 mesh
Strainer
insert
500µ
38 mesh
Pleated
Strainer insert
150µ
100 mesh
Pleated
Strainer insert
250µ
72 mesh
Pleated
Strainer insert
500µ
38 mesh
[mm] [in]
Butt-weld DIN (EN 10220) - Angleway
15
1 ⁄ 2
FIA 15 D ANG 148B5242
148H3122 148H3124 148H3126 148H3128 148H3303 148H3363 –
20
3 ⁄ 4
FIA 20 D ANG 148B5342
25 1 FIA 25 D ANG 148B5442
148H3123 148H3125 148H3127 148H3129 148H3304 148H3269 – 32 1 1 ⁄ 4 FIA 32 D ANG 148B5543
40 1 1 ⁄ 2 FIA 40 D ANG 148B5624
50 2 FIA 50 D ANG 148B5712 148H3157 148H3130 148H3138 148H3144 148H3179 148H3184 148H3189
65 2 1 ⁄ 2 FIA 65 D ANG 148B5812 – 148H3131 148H3139 148H3145 148H3180 148H3185 148H3190
80 3 FIA 80 D ANG 148B5905 – 148H3119 148H3120 148H3121 148H3181 148H3186 148H3191
100 4 FIA 100 D ANG 148B6006 – 148H3132 148H3140 148H3146 148H3182 148H3187 148H3192
125 5 FIA 125 D ANG 148B6105 – 148H3133 148H3141 148H3147 148H3183 148H3188 148H3193
150 6 FIA 150 D ANG 148B6202 – 148H3134 148H3142 148H3148 148H3226 – –
200 8 FIA 200 D ANG 148B6302 – 148H3135 148H3143 148H3149 148H3297 – –
