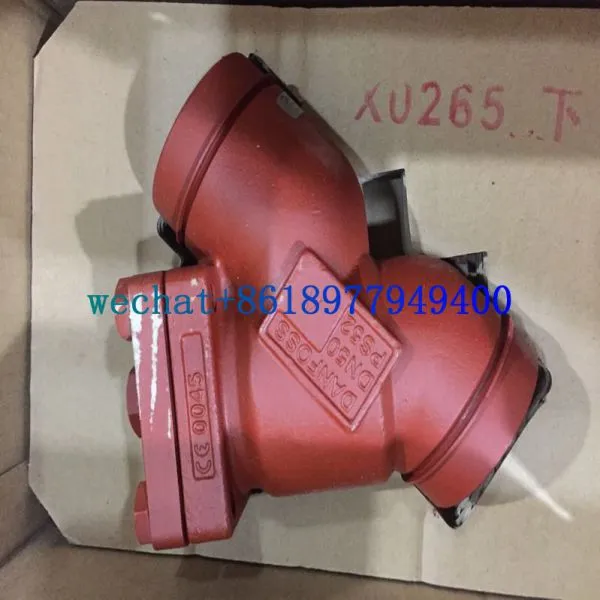

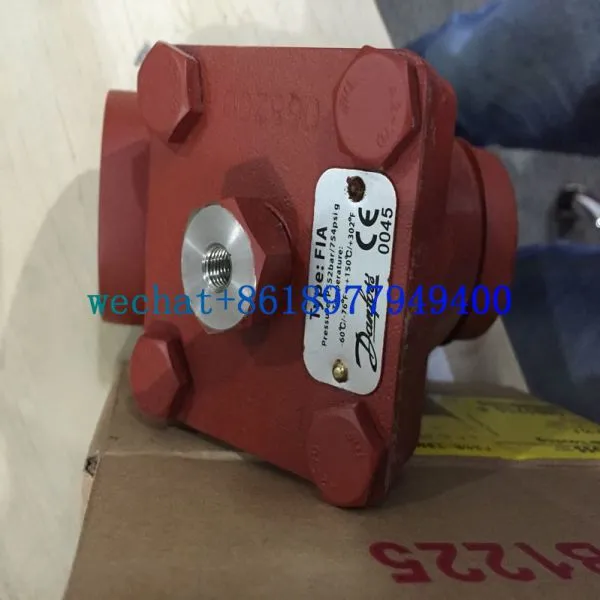

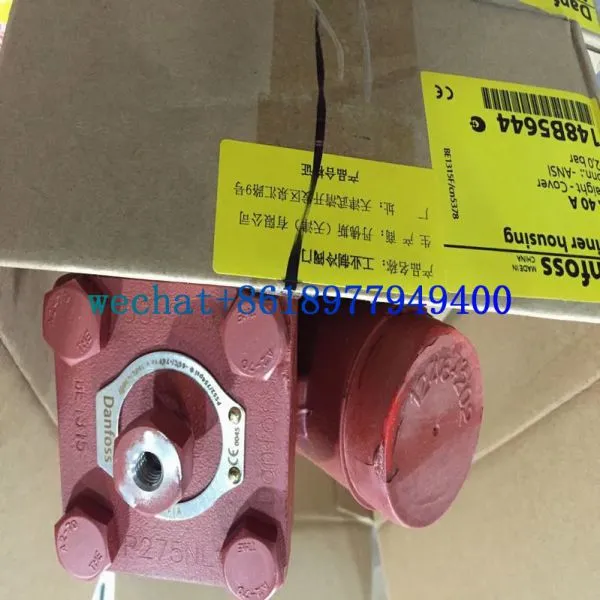

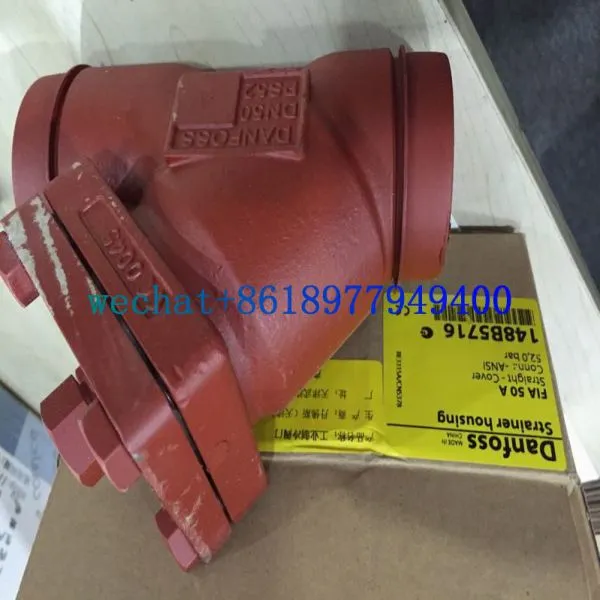

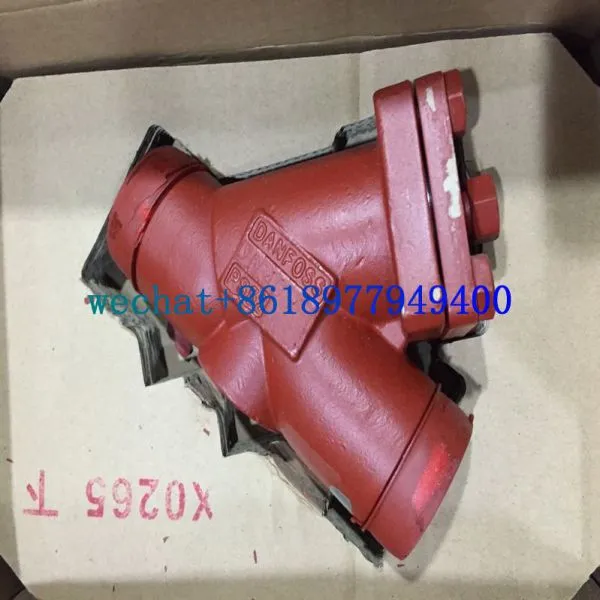

Danfoss Filters Type FIA80-100 FIA150-200 FIA250-300 Strainers Design
Connections
Available with the following connections:
• Butt-weld DIN (EN 10220)
DN 15 – 200 ( 1 ⁄ 2 – 8 in)
• Butt-weld ANSI (B 36.10 Schedule 80),
DN 15 – 40 ( 1 ⁄ 2 – 1 1 ⁄ 2 in)
• Butt-weld ANSI (B 36.10 Schedule 40),
DN 50 – 200 (2 – 8 in)
• Butt-weld GOST (8734-75 and 8732-78),
• DN 15 – 150 ( 1 ⁄ 2 – 6 in)
• Socket Weld (ANSI B 16.11),
DN 15 – 50 ( 1 ⁄ 2 – 2 in)
• FPT Female Pipe Thread, NPT
(ANSI/ASME B 1.20.1),
DN 15 – 32 ( 1 ⁄ 2 – 1 1 ⁄ 4 in)
Strainer Insert
A filter grid and filter net of stainless steel ensure
long element life. The filter net offers a very high
degree of cleanability.
Housing
The strainer housing is made of special, cold
resistant steel.
Installation / Maintenance
The strainer is designed to resist high internal
pressures. However, the piping system in general
should be designed to avoid liquid traps and
reduce the risk of hydraulic pressure caused by
thermal expansion.
Install the strainer with the cover in downward
position.
Danfoss recommends replacement / cleaning of
the strainer when the differential pressure loss
>0.5 bar (7.3 psi) in the liquid line and >0.05 bar
(0.7 psi) in the suction line. The max. permissible
differential pressure is 1 bar (15 psi).
For further information refer to installation
instruction for FIA.
Danfoss Filters Type FIA80-100 FIA150-200 FIA250-300 Strainers Features
• Applicable to HCFC, HFC, R717 (Ammonia),
R744 (CO 2 ) and all flammable refrigerants.
• Modular Concept:
– Each valve housing is available with several
different connection types and sizes.
– Possible to convert FIA strainers to any
other product in the Flexline TM SVL family
(shut-off valve, hand operated regulating
valve, check & stop valve or check valve) just
by replacing the complete top part.
• Fast and easy overhaul service. It is easy to
replace the top part and no welding is needed
• Filter net of stainless steel mounted direct
without extra gaskets means easy servicing
• Two types of strainer inserts are available:
- A plain insert of stainless steel.
- A pleated insert (DN 15-200) with extra
large surface, which ensures long intervals
between cleaning and low pressure drop.
• FIA 15 – 40 ( 1 ⁄ 2 – 1 1 ⁄ 2 in):
A special insert (50µ) can be used in
combination with a standard version when
cleaning a plant during commissioning.
• FIA 50 – 200 (2 – 8 in):
A large capacity filter bag (50µ) can be inserted
for cleaning plant during commissioning.
• FIA 80-200 (3 – 8 in) can be equipped with a
magnetic insert for detention of iron particles
and other magnetic particles.
• Each strainer clearly marked with type, size and
performance range
• Housing and bonnet of low temperature steel
in accordance with the requirements of the
Pressure Equipment Directive and those of
other international classification authorities
• Temperature range:
-60 – 150 °C / -76 – 302 °F
• Max. working pressure:
52 bar g / 754 psi g
• Classification: DNV, CRN, BV, EAC etc.
To get an updated list of certification on the
products please contact your local Danfoss
Sales Company
