Danfoss types ICM20-A,ICM25-32,ICM40 Motor operated valves product introduction
ICM motor operated valves belong to the ICV family and are one of two product groups.
ICV types
– ICS - Pilot operated servo valve
– ICM - Motor operated vave

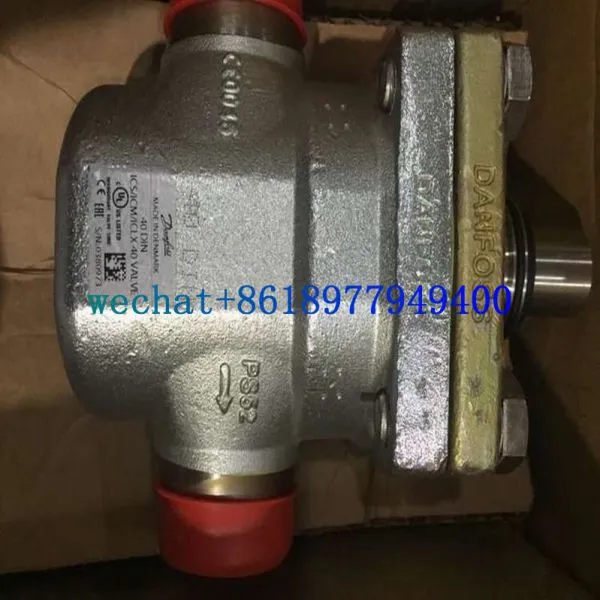

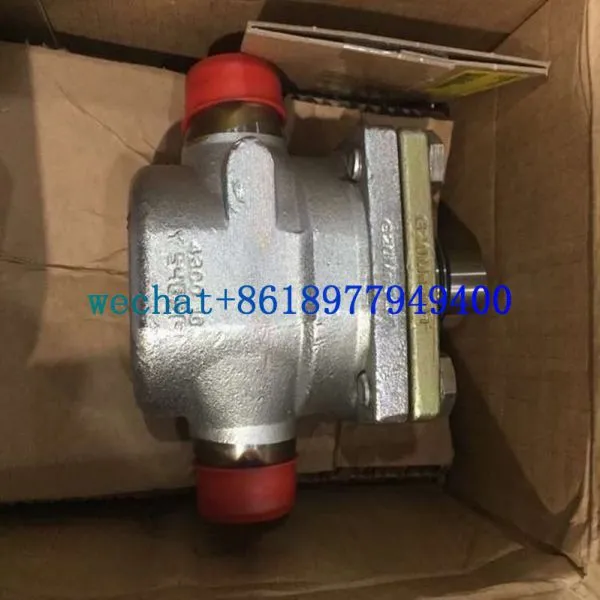

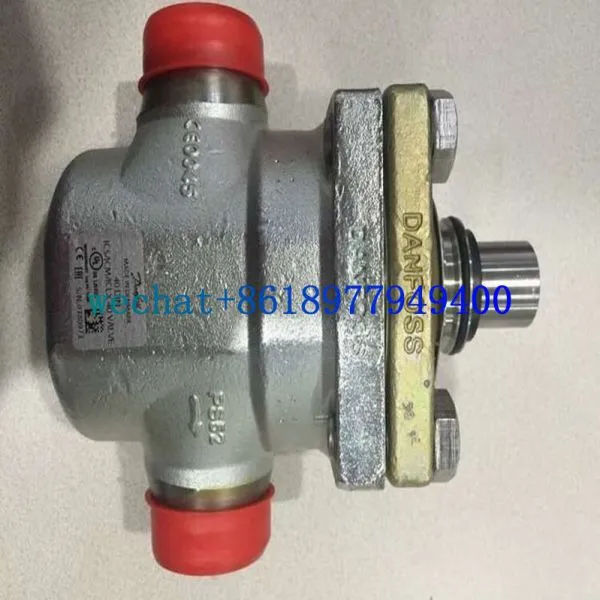

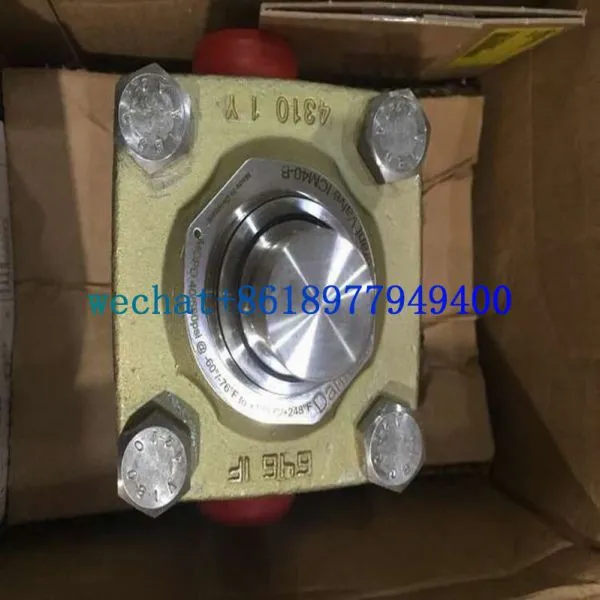

The motor operated valve comprises four main components: Valve body, top cover, function module and Actuator. On ICM 20 – 65 the top cover and function module will be combined. ICM are motor operated valves driven by actuator type ICAD.
ICM valves are designed to regulate an expansion process in liquid lines with or without phase change or control pressure or temperature in dry and wet suction lines and hot gas lines. ICM valves are designed so that the opening and closing forces are balanced, therefore, only two sizes of ICAD actuators are needed for the complete range of ICM from DN 20 to DN 150.
The ICM motor operated valve and ICAD actuator assembly offers a very compact unit with small dimensions.
Danfoss types ICM20-A,ICM25-32,ICM40 Motor operated valves Features
• Designed for Industrial Refrigeration applications for a maximum working pressure of 52 bar g / 754 psi g.
• Applicable to HCFC, HFC, R717 (Ammonia) and R744 (CO 2 ).
• Direct coupled connections.
• Connection types include butt weld, socket weld, solder and threaded connections.
• Low temperature steel body.
• Low weight and compact design.
• V-port regulating cone ensures optimum regulating accuracy particularly at part load.
• Cavitation resistant valve seat on A cones.
• Modular Concept
– Each valve body is available with several different connection types and sizes.
– Valve overhaul is performed by replacing the function module (ICM 20 – 65).
– Possible to convert ICM motor operated valve to ICS pilot operated servo valve.
– Spare parts available for ICM 100 – 150.
• Manual opening possible via ICAD or Multi-function tool.
• PTFE seat provides excellent valve tightness.
• Magnet coupling - real hermetic sealing.

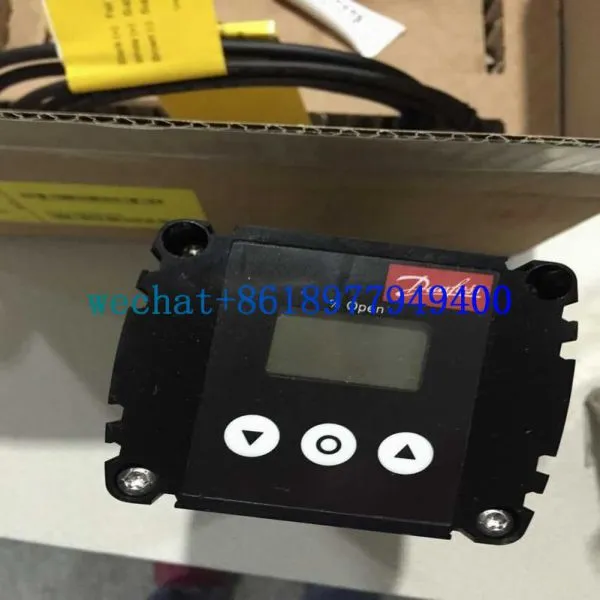

• ICAD 600A / 1200A include encoder function that will provide a true valve position feedback to Danfoss controller or non-Danfoss control
systems.
• Classification: DNV, CRN, BV, EAC etc. To get an updated list of certification on the products please contact your local Danfoss Sales Company.
Danfoss types ICM20-A,ICM25-32,ICM40 Motor operated valves Technical data
• Refrigerants
ICM 20, ICM 100, ICM 125 and ICM 150:Applicable to HCFC, non flammable HFC, R717(Ammonia) and R744 (CO 2 )
ICM 25-65:
Applicable to HCFC, non flammable HFC, R717(Ammonia), R744 (CO 2 ) and R1234ze Use with flammable hydrocarbons cannot be recommended. For further information please contact your local Danfoss sales company.
• Temperature range:
Media: -60 – 120 °C / -76 – 248 °F.
When used in liquid refrigerant above 75 °C / 167 °F, please contact Danfoss
• Pressure
The valve is designed for: Max. working pressure: 52 bar g / 754 psi g
• Surface protection
ICM 20 – 150: The external surface is zinc-chromated to provide good corrosion protection.
• Max. openening pressure differential (MOPD)
– ICM 20-32: 52 bar / 750 psi
– ICM 40: 40 bar / 580 psi
– ICM 50: 30 bar / 435 psi
– ICM 65: 20 bar / 290 psi
– ICM 100 20 bar / 290 psi
– ICM 125 20 bar / 290 psi
– ICM 150 20 bar / 290 psi
• Time to move from Closed to Open position or in reverse order with maximum selected speed at ICAD.
– ICM 20: 3 Sec. ICM 65: 13 Sec.
– ICM 25: 7 Sec. ICM 100: 25 Sec.
– ICM 32: 8 Sec. ICM 125: 35 Sec.
– ICM 40: 10 Sec. ICM 150: 45 Sec.
– ICM 50: 13 Sec.
