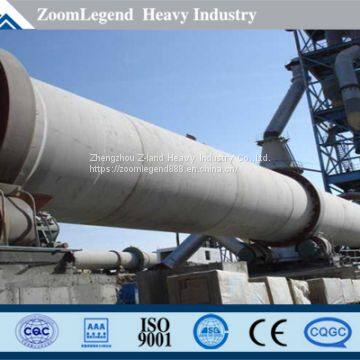

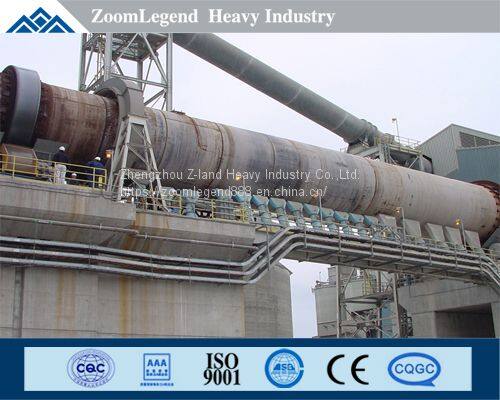

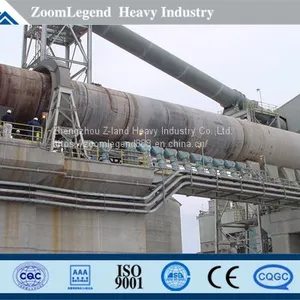

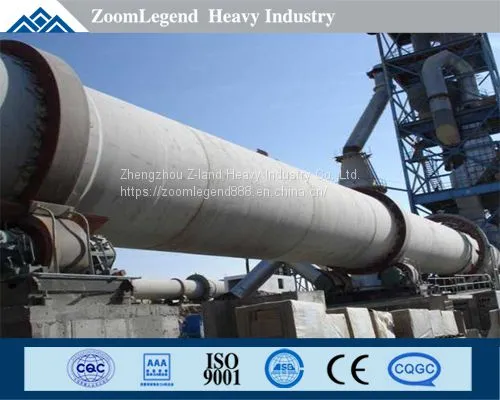

Help CenterHigh Efficiency Carbon Rotary Kiln For Sale
Related Products
-
Good Competitive Price Carbon Rotary Kiln for SaleUS$ 16000 - 18000MOQ: 1 Set -
High Output Ceramic Sand Rotary Kiln For SaleUS$ 15000 - 18000MOQ: 1 Set
-
High Cost Performance Alumina Rotary Kiln Made in ChinaUS$ 16000 - 19000MOQ: 1 Set
-
Competitive Price Limestone Rotary Kiln for Sale Made in ChinaUS$ 19000 - 22000MOQ: 1 Set
-
Reasonable Price Aluminum Ash Rotary Kiln Made in ChinaUS$ 18000 - 22000MOQ: 1 Set
Introduction
With the rapid development of aluminum electrolysis industry in recent years, carbon material, the second raw material of aluminum production, develops rapidly.Carbon rotary kiln becomes the main equipment of carbon production.
Based on the analysis of the problems existing in the actual yield and carbonaceous burning loss of the imported carbon calcining rotary kiln, the Suggestions on reducing the diameter of the kiln tail, changing the structure of the kiln tail, improving the installation position of the feeding pipe, setting up the settling combustion chamber and the settling material recovery device are put forward.It has low investment, high capacity, high degree of automation, high output and low energy consumption, greatly reducing the production cost.Suitable for large-scale calcining.
Working Principle
Material will be feed into kiln tail through chute in gas chamber. As kiln shell is inclined and it rotates slightly, material will move along round shell and will also move along shaft direction from kiln tail to kiln head. Material will be processed through pre-heat, decompose, calcined and will be feed into cooler. Fuel will be given through gas or coal burner at kiln head and will be combusted in kiln. Heat will be transferred to material by fire radiate, hot air flow, kiln brick transfer. The heat will heat and calcine material enough and make it final product.
Characteristic
1. It has the advantages of stable performance, low energy consumption, high output, simple operation, simple rotary kiln structure, convenient and reliable production process control, less vulnerable parts and high operation rate.
2. Carbon rotary kiln adopts advanced hydraulic gear, high precision measuring plunger pump, high precision regulating valve and contact graphite block sealing device.
3. Convenient operation, reliable use, stable thermal system, improve the operation rate of equipment.
Technical Parameter
Model |
Barrel diameter mm |
Barrel length mm |
Obliquity % |
Capacity t/h |
Rev (rmp) |
Electricmotor power kw |
Weight t |
YZ1225 |
1200 |
25000 |
4 |
3 |
0.53-5.25 |
22 |
34 |
YZ1632 |
1600 |
32000 |
4 |
3.5 |
0.53-5.25 |
15 |
46.82 |
YZ1828 |
1800 |
28000 |
4 |
4 |
0.28-2.84 |
30 |
59.39 |
YZ1845 |
1800 |
45000 |
4 |
4.5 |
0.28-2.84 |
30 |
80 |
YZ1636 |
1600 |
36000 |
4 |
1.2-1.9 |
0.26-2.61 |
22 |
51.023 |
YZ1939 |
1900 |
39000 |
4 |
1.6-3.4 |
0.31-2.82 |
37 |
70.704 |
YZ2044 |
2000 |
44000 |
3.5 |
2.4-4 |
0.22-2.26 |
37 |
97.135 |
YZ2245 |
2200 |
45000 |
3.5 |
3.2-5.3 |
0.23-2.25 |
45 |
125.46 |
YZ2550 |
2500 |
50000 |
3.5 |
6.2-7.4 |
0.68-1.45 |
55 |
179.60 |
YZ2555 |
2500 |
55000 |
3 |
7.3-9.8 |
0.79-2.38 |
55 |
191.20 |
YZ2820 |
2800 |
20000 |
4 |
15-18 |
0.8-1.45 |
75 |
186.37 |
YZ3028 |
3000 |
28000 |
4 |
18-23 |
0.8-1.45 |
75 |
180.37 |
YZ3060 |
3000 |
60000 |
3.5 |
16-20 |
0.49-2.41 |
90 |
272.50 |
YZ3226 |
3200 |
26000 |
4 |
22-27 |
0.8-1.45 |
90 |
185.10 |
