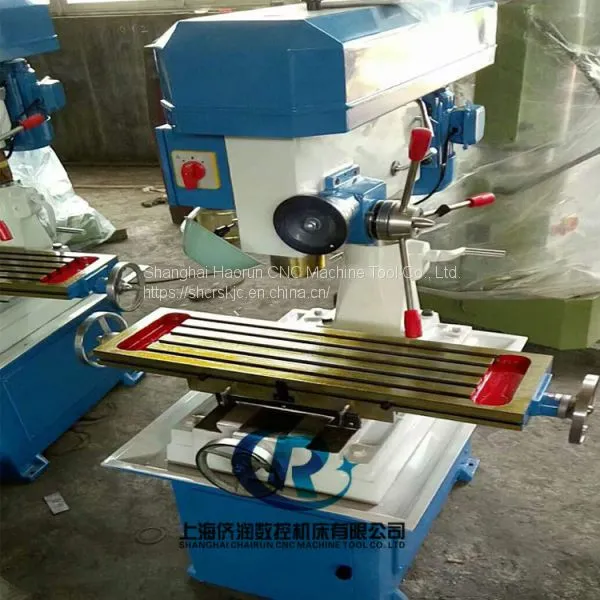

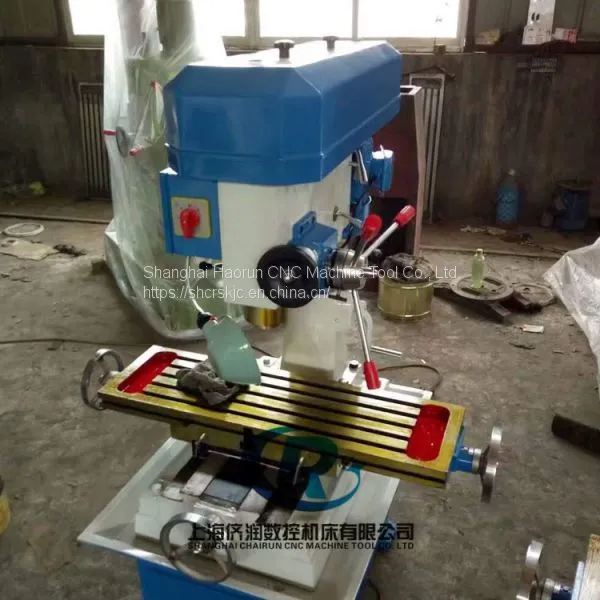

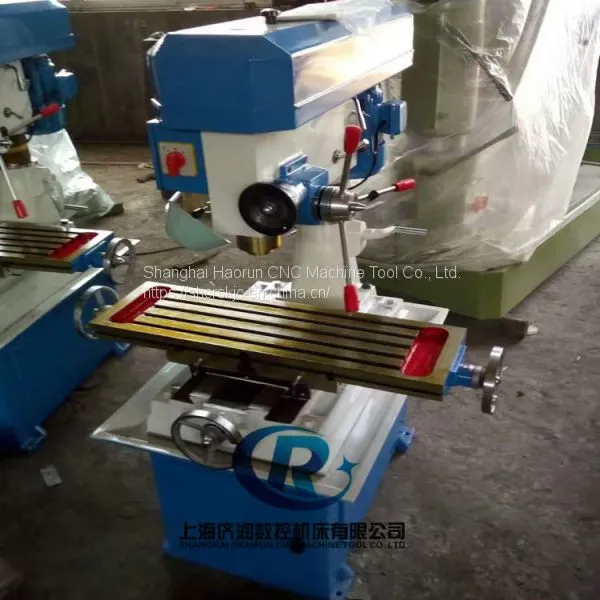

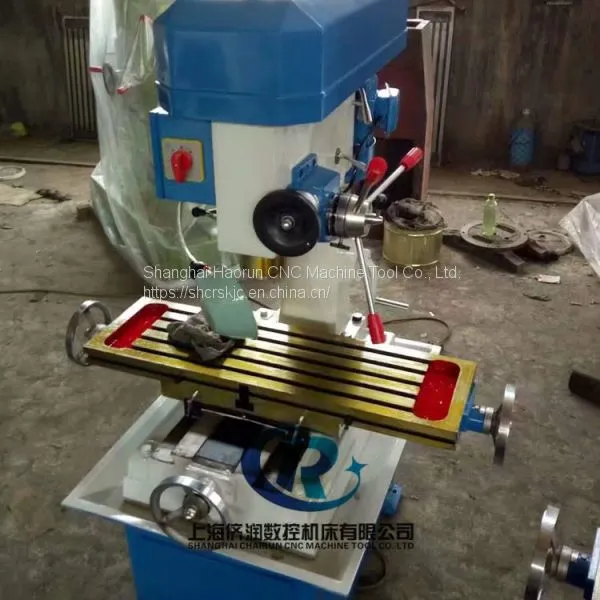

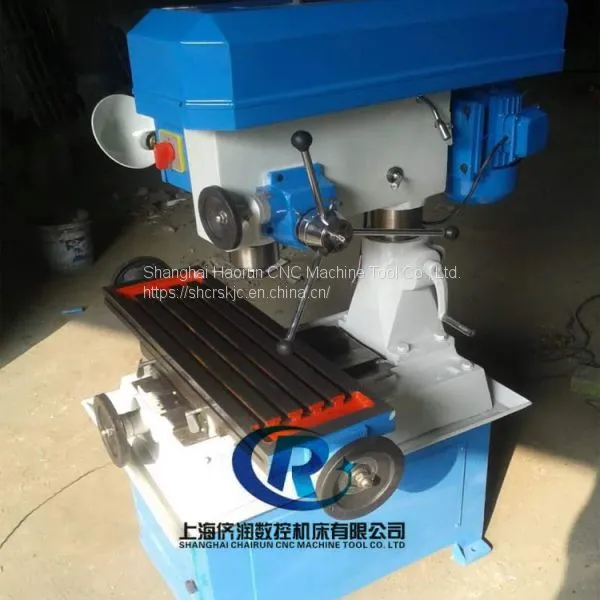

Help CenterZxtm-40 Drilling and Milling Machine
Related Products
-
Zx6350 Drilling and Milling Machine|6350 Drilling and Milling MachineNegotiableMOQ: 1 Box -
Zx-20/16 Drilling and Milling MachineUS$ 400 - 480MOQ: 1 Set
-
40 Drilling and Milling MachineUS$ 1500 - 1650MOQ: 1 Box
-
50 Drilling&milling MachineUS$ 1750 - 1850MOQ: 1 Box
-
Universal Drilling Milling Machine|40mm Drilling Capacity Drill MillUS$ 1500 - 1650MOQ: 1 Box
|
ZXTM-40 drilling milling machine |
Max. Drilling Dia. (mm) |
40 |
Max. Horizontal Milling Dia. |
100 |
Max. Vertical Milling Dia. |
20 |
Distance from Spindle Nose to Table |
550 |
Distance from Spindle Axis to Column |
300 |
Spindle Travel |
120 |
Spindle Taper |
MT4 |
Spindle Speed Range |
(9 step) 168-3168 |
Table Size (mm) |
800*240 |
Table Travel (mm) |
400*250 |
Main Motor Power (KW) |
1.5 |
N.W./G.W.(Kg) |
410/460 |
ZXTM-40 Milling Machine Standard Packing List
No. |
Description |
Specification |
Qty |
1 |
Milling Machine ZXTM40 |
1 |
|
2 |
Drilling Chuck |
16 |
1 |
3 |
V-Belt (On Machine) |
A889 |
2 |
4 |
Hexagon Spanner |
5 |
1 |
5 |
Wedge Shifter |
1 |
|
6 |
Reduction Sleeve |
MT 4/3 4/2 |
1 |
7 |
Draw Bar |
1 |
|
8 |
Spindle Bar |
1 |
|
9 |
Wrench |
S18-21 |
1 |
10 |
Grinding Wheel |
1 |
|
11 |
Boring Bar |
1 |
|
12 |
Grinding Wheel |
1 |
|
13 |
Machine Vice |
125 |
1 |
14 |
Milling Chuck |
MT4 |
1 |
15 |
Operation Manual |
1 |
|
16 |
Quality Certificate |
1 |
|
17 |
Packing list |
1 |
The main performance characteristics:
1.Milling head can be micro feed and achieve the drilling
2.The Vertical Milling Machine with Milling and tapping function
3.The universal milling machine Worktable can be equipped with the gear transmission power feed,
4.Full-featured and flexible
5.Easy to operate
6.The milling machine can be add plug and swivel table
7.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
8.Work Table Made by HT200-250 High Strength Cast Iron
9.Dovetail Table Guide ways Withstand Larger Overturning Moment
10.Gear Drive Milling Head
11.The milling Head stock Swivels ±45
