Drilling and Milling Machine 40

Shandong Jiaqun CNC Machine Tool Co., Ltd. Verified Business License

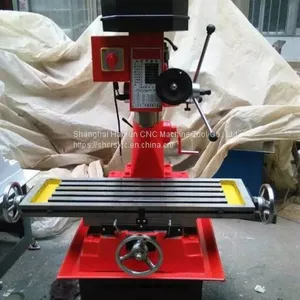

Drilling and Milling Machine 40 thumbnail-1

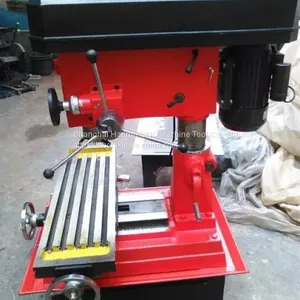

Drilling and Milling Machine 40 thumbnail-2

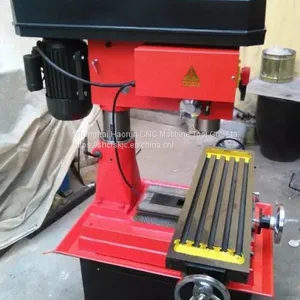

Drilling and Milling Machine 40 thumbnail-3
Drilling and Milling Machine 40 thumbnail-4
Drilling and Milling Machine 40 thumbnail-5

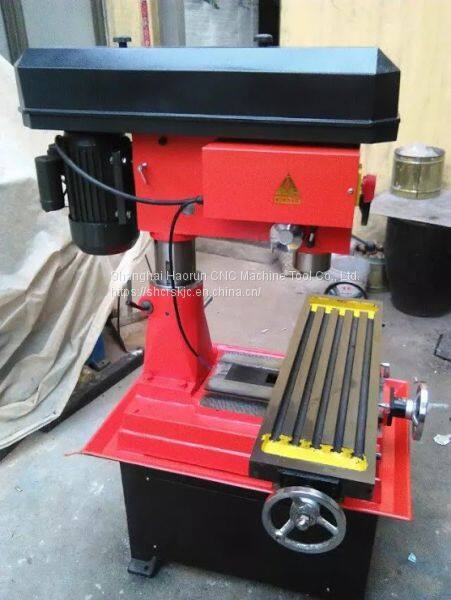

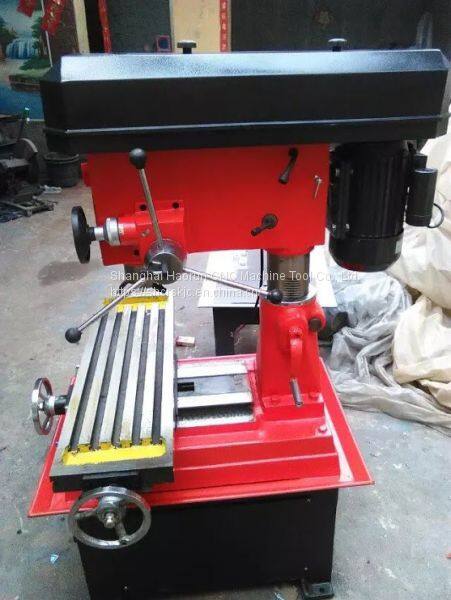

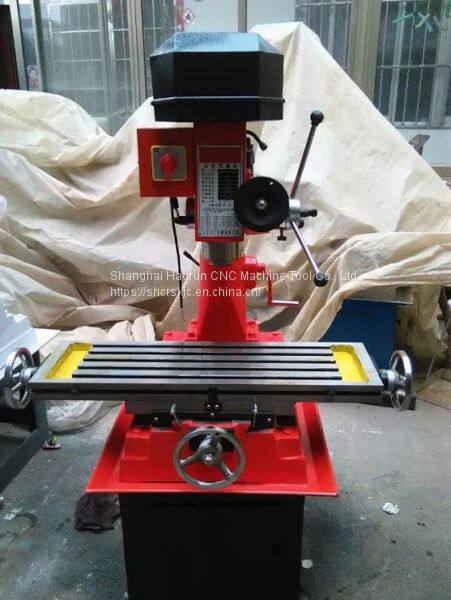

Drilling and Milling Machine 40 photo-1
Drilling and Milling Machine 40 photo-2

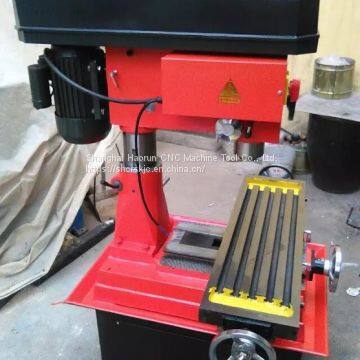

Drilling and Milling Machine 40 photo-3
Drilling and Milling Machine 40 photo-4

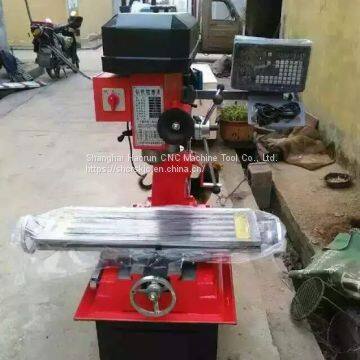

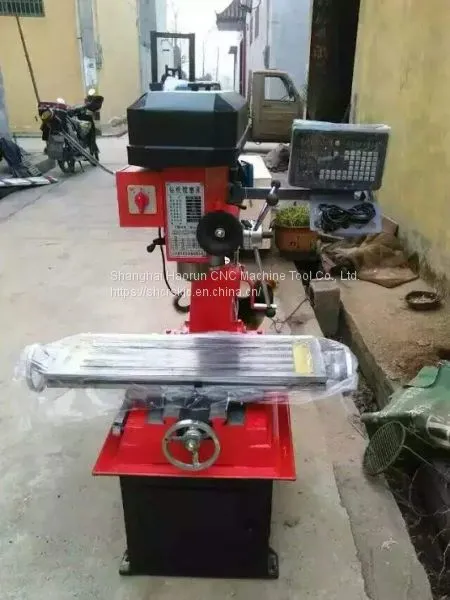

Drilling and Milling Machine 40 photo-5
US$ 1500 - 1650 MOQ: 1 Box
Key Specifications
Get Latest Price
Brand Name:
Yurun
Place of Origin:
China
Model Number:
zxtm-40
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yurun
Place of Origin China
Model Number zxtm-40
Type Vertical
After-sales Service Provided No overseas service provided
Weight 460kg
Dimension(L*W*H) 1000*1050*1330
Voltage 220
Condition New
Power(W) 1.5
CNC or Not Normal

Specifications

ZXTM-40 drilling milling machine

Max. Drilling Dia. (mm)

40

Max. Horizontal Milling Dia.

100

Max. Vertical Milling Dia.

20

Distance from Spindle Nose to Table

550

Distance from Spindle Axis to Column

300

Spindle Travel

120

Spindle Taper

MT4

Spindle Speed Range

(9 step) 168-3168

Table Size (mm)

800*240

Table Travel  (mm)

400*250

Main Motor Power (KW)

1.5

N.W./G.W.(Kg)

410/460

ZXTM-40 Milling Machine Standard Packing List

No.

Description

Specification

Qty

1

Milling Machine ZXTM40


1

2

Drilling Chuck

16

1

3

V-Belt                          (On Machine)

A889

2

4

Hexagon Spanner

5

1

5

Wedge Shifter


1

6

Reduction Sleeve

MT 4/3       4/2

1

7

Draw Bar


1

8

Spindle Bar


1

9

Wrench

S18-21

1

10

Grinding Wheel


1

11

Boring Bar


1

12

Grinding Wheel


1

13

Machine Vice

125

1

14

Milling Chuck

MT4

1

15

Operation Manual


1

16

Quality Certificate


1

17

Packing list


1

The main performance characteristics:

1.Milling head can be micro feed and achieve the drilling

2.The Vertical Milling Machine with Milling and tapping function

3.The universal milling machine Worktable can be equipped with the gear transmission power feed,

4.Full-featured and flexible

5.Easy to operate

6.The milling machine can be add plug and swivel table

7.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)

8.Work Table Made by HT200-250 High Strength Cast Iron

9.Dovetail Table Guide ways Withstand Larger Overturning Moment

10.Gear Drive Milling Head

11.The milling Head stock Swivels ±45


Product Tags: 40 drilling and milling machine , drilling and milling machine 40 , drilling and milling machine
