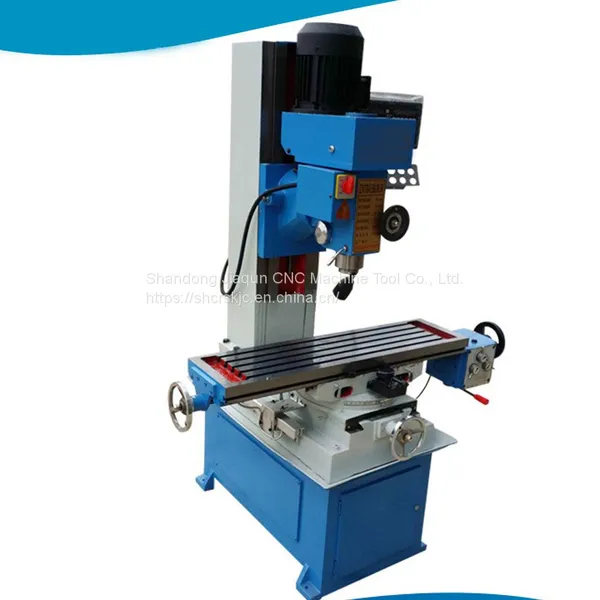

Help Center50 Drilling&milling Machine
Related Products
-
Universal Drilling Milling Machine|40mm Drilling Capacity Drill MillUS$ 1500 - 1650MOQ: 1 Box -
Universal Drilling Milling Machine|vertical Drill Mill|combo Drill Milling MachineNegotiableMOQ: 1 Box
-
Vertical Horizontal Combo Drill Mill|mill Drill MachineNegotiableMOQ: 1 Box
-
Zxtm-40 Drilling and Milling MachineUS$ 1500 - 1650MOQ: 1 Box
-
Zx6350 Drilling and Milling Machine|6350 Drilling and Milling MachineNegotiableMOQ: 1 Box
Specifications |
ZX50A milling machine |
ZX50C milling machine |
Max. Drilling Dia. (mm) |
50 |
50 |
Max. Horizontal Milling Dia. |
100 |
100 |
Max. Vertical Milling Dia. |
32 |
32 |
Max. Boring Dia. |
100 |
100 |
Spindle Taper |
MT4,R8 |
MT4,R8 |
Spindle Speeds Range |
(5 step) 270-2400 |
(5 step) 115-1750 |
Spindle Travel |
120 |
120 |
Table Size (mm) |
800*240 |
800*240 |
Table Travel (mm) |
400*230*380 |
400*230*380 |
Main Motor Power (KW) |
1.5 |
0.85/1.5 |
N.W./G.W.(Kg) |
460/540 |
470/550 |
The main performance characteristics:
1.Milling head can be micro feed and achieve the drilling
2.The Vertical Milling Machine with Milling and tapping function
3.The universal milling machine Worktable can be equipped with the gear transmission power feed,
4.Full-featured and flexible
5.Easy to operate
6.The milling machine can be add plug and swivel table
7.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
8.Work Table Made by HT200-250 High Strength Cast Iron
9.Dovetail Table Guide ways Withstand Larger Overturning Moment
10.Gear Drive Milling Head
11.The milling Head stock Swivels ±45
