Hennopack MS303 Full-Automatic-In-line-Electric-Turntable-Pallet Stretch Wrapper Machine

Hennopack provide customers with a full range of stretch film packaging machines, mainly including Semi-auto stretch wrapper,weighing stretch wrap,M typr pallet wrap,turntable stretch wrapper,rotary arm stretch wrapper,reel wrapper,pallet dispenser,top sheet dispenser,robot worker,orbital wrapper and so on.Also to comply with the request of different clients’ ,we could design and make different pallet stretch wrap.

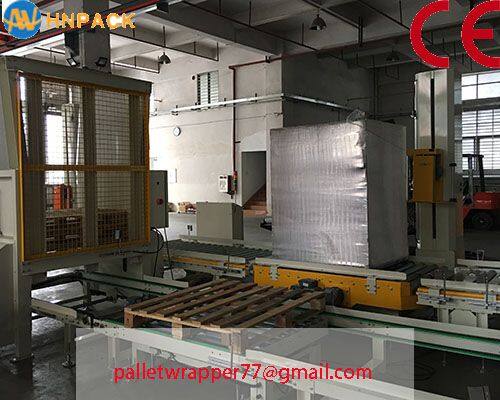

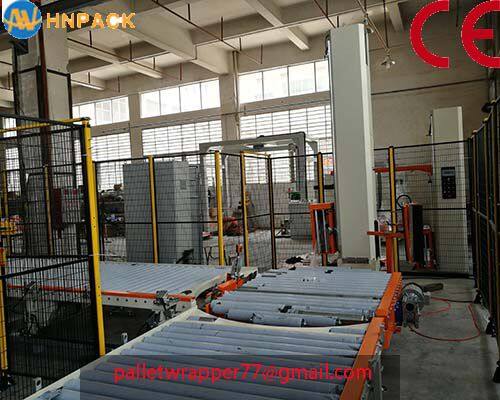

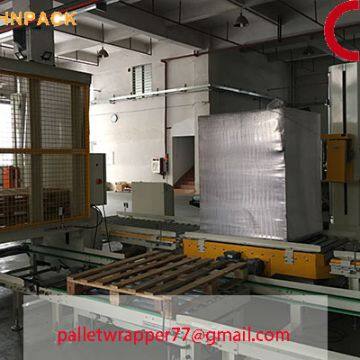

Hennopack MS303H Auto Turntable Stretch Wrapper is conveyorized machines for automated unmanned packing lines. Controlled by the same control system. pallets can be automatically wrapped to be protected against dust moisture, and achieve perfect exterior l.ooking

Specifications:

Turntable diameter: 1800mm, with motorised rollers

Turntable speed: 3 - 15rpm, soft start & stop

Turntable height: 456mm

Max load weight: 2500kgs

Wrap height: 2100mm

Wrapping settings: wrapping cycles /top wraps /bottom wraps /overwrap

Carriage speed: 5 meters/min max

Conveyor speed: 3 – 12 mts/min

Clamper type: scissor type clamper

Cutter type: instant heater

Turntable motor: 0.75kw

Pre-stretch motor: 0.2kw

Carriage lifter motor: 0.37kw

Conveyor motor: 0.75kw

Power supply: 3PH 380VAC, 50/60Hz

Air pressure: 0.4-0.7Mpa

Film type: stretch film thickness 17-35microns, width 450-500mm, paper core 76mm, max weight 18kgs

MACHINE FEATURES

1.MS303H Fully auto turntable stretch wrapper+MT107 top sheet dispenser are conveyorized machines for automated unmanned packing lines;

2.Controlled by same control system,pallets can be automatically wrapped and covered on the top simultaneously to be protected against dust&moisture,and achieve perfect exterior looking;

3.widely used to enhance work efficiency,reduce labor cost and raise packing grades,in industries such as chemicals,electric&electronic,food&beverage, paper making,etc;

4.MT107 toP sheet dispenser could be ordered independently to go with present wrapper.

5.Accept wrapping machine custom design，such as color、 configuration、 performance、 appearance、 material、wrapping height、loading weight、control system、pallet size and so on.

Our Services

1.OEM / ODM service is avaliable,and provide technology supporting in products for we are in 10years exporting experience.

2.Provide our factory certificate TUV,Assembe supplier.

3.Provide you Quality Control in processing line.

4.Provide you freight forwaring information to save cost.

5.After sales service.
