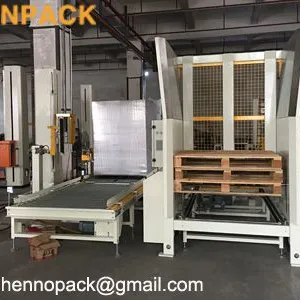

Help CenterFactory Direct Sales Automatic Pallet Stacker/In-line Auto Pallet Dispenser & Collector/Pallet Stacking Machine
Related Products
-
Automatic Pallet Dispenser & Stacker/In-line Auto Pallet Colletor& Dispensing Machine ManufacturerUS$ 8000 - 11000MOQ: 1 Set -
In-line Automatic Rotary Arm Pallet Stretch Ring Wrapping Machine For BagsUS$ 12000 - 19000MOQ: 1 Set
-
Fully Automatic Horizontal Ring Orbital Stretch Film Wrap Machine For Door Frame/Window/Aluminum/Profile/Timber/Pipe/PanelUS$ 9000 - 16000MOQ: 1 Set
-
Empty Pallet Dispenser of Palletizing MachineUS$ 7000 - 10000MOQ: 1 Piece
-
Magazine Dispenser/Pallet Stacker/Auto Pallet Stacking and Dispensing Machine Manufacturer From ChinaUS$ 6800 - 10000MOQ: 1 Piece
Product Description
- Resolves manual handling issues associated with pallet dispensing and stacking.
- Selectable single pallet dispensing or stacking using manual pump-truck.
- Compatible with pallet conveyor for automatic pallet dispensing or stacking operations.
Product Feature
• Removes the manual handling issues associated with pallet dispensing & stacking activities.
• Single dispenser/stacker can be used for multiple lines.
• Selectable dispensing or stacking modes.
• Adjustable pallet counter to set pallet stack height.
• Compatible with pallet handling conveyor to provide automatic dispensing or stacking operations.
• Compact footprint (slightly larger than a single pallet) and floor-mounted for manual pump-truck interface.
• Dual-direction pallet dispensing / loading (ideal for warehouse operations).
• Capacity to store up to 3000mm high pallet load.
• Integral stack guides ensure square & stable loads.
• Interlocked light barrier & full-height fabricated side walls ensure safe system operation.
• Manufactured to handle any pallet size (specify with order).
• Low consumption supply requirements: 1PH 110v/220v.
product specifications
auto pallet dispenser/stacker | |
Size of pallet | |
pallet type: |
2-way entry or 4-way entry |
Max pallet size: |
(L)1200mm*(W)800mm (L)1200mm*(W)1000mm (L)1200mm*(W)1200mm Or customized |
Machine Specification | |
Machine dimensions: |
(L)3238mm*(W)1454mm*(H)856mm |
Machine weight: |
650 kg |
Maximum load: |
200 kg |
pallet storage quantity: |
15 pcs, or customize |
Lifting weight: |
200kg |
Lifting height: |
250mm |
Distribution efficiency: |
1 pallet per 20 seconds |
Conveyor line type: |
roller conveyor |
Conveyor Speed: |
12 meters /min |
Conveyor Height: |
550 +/-30mm |
Power supply: |
1PH AC220V 50Hz |
Power: |
0.75kw |
