In-line Automatic Rotary Arm Pallet Stretch Ring Wrapping Machine For Bags

In-line Automatic Rotary Arm Pallet Stretch Ring Wrapping Machine For Bags thumbnail-1
In-line Automatic Rotary Arm Pallet Stretch Ring Wrapping Machine For Bags thumbnail-2
In-line Automatic Rotary Arm Pallet Stretch Ring Wrapping Machine For Bags thumbnail-3
In-line Automatic Rotary Arm Pallet Stretch Ring Wrapping Machine For Bags thumbnail-4
In-line Automatic Rotary Arm Pallet Stretch Ring Wrapping Machine For Bags thumbnail-5
In-line Automatic Rotary Arm Pallet Stretch Ring Wrapping Machine For Bags photo-1
In-line Automatic Rotary Arm Pallet Stretch Ring Wrapping Machine For Bags photo-2
In-line Automatic Rotary Arm Pallet Stretch Ring Wrapping Machine For Bags photo-3
In-line Automatic Rotary Arm Pallet Stretch Ring Wrapping Machine For Bags photo-4
In-line Automatic Rotary Arm Pallet Stretch Ring Wrapping Machine For Bags photo-5
US$ 12000 - 19000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HENNOPACK
Place of Origin:
China
Model Number:
MR402
Contact Supplier Request Quote Chat Now
Shenzhen Henno Packaging Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
35 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HENNOPACK
Place of Origin China
Model Number MR402
Certification ce
After-sales Service Provided Engineers available to service machinery overseas
Weight 1000kg
Dimension(L*W*H) 2000 / 2500 / 3000mm
Voltage 3PH 380V 50Hz/60Hz
Power 3KW
Application Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Condition New
Automatic Grade Automatic
Driven Type Electric
Packaging Material Glass, Metal, Paper, Plastic, Wood
Packaging Type Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch

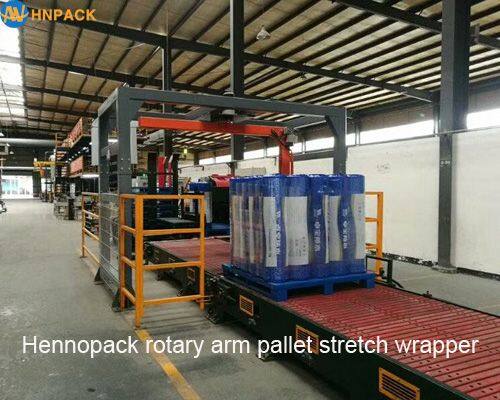

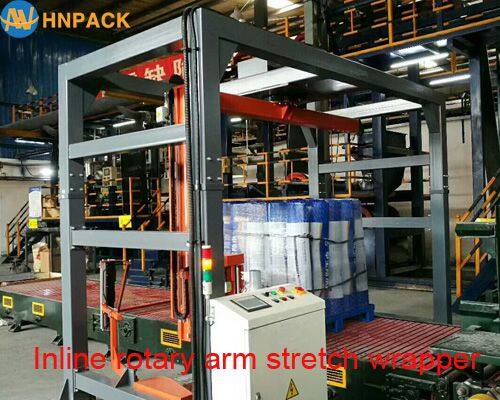

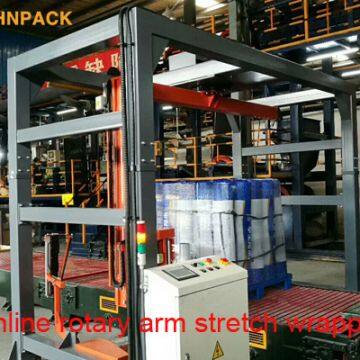

Automatic Rotary Arm Pallet Stretch Wrapping Machine



Advantages:

  • Least labor - no human intervention required during wrapping. Machine alarms when no film.

  • A most suitable machine for integrating into the pallet packaging line of a palletizing system.





Specifications



Stretch wrapping machines are used to wrap stretch film around a loaded pallet. The film provides extra support while the products are being transported & storage to protect them from tip, spill or from being damaged. Additionally, wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc





Technical Data of stretch wrapper:





mr402

Size of the product to be wrapped

Min load size(L XWxH)

500 X 500 X 500 mm

Max load size(LXW)

1200 X 1200 mm , or custom made

Max load height

2000mm  (Option: 2500mm, 3000mm)

Packing speed

35- 50 pallets per hour

Film Carriage

Carriage

Power pre-stretch film carriage, stretch ratio up to 300%

Carriage door opens for effortless roll change and thread film

Film tension adjustable

Machine Specification

Turntable rotation speed:

3-20 rpm adjustable

Rotating inner ring diameter

2200mm or customize

Loading weight

see conveyor

Carriage Up/down speed

0 - 6 meters/min adjustable

Power supply voltage

3PH 380VAC or 440VAC

Power

2.1Kw

Packing efficiency

35 - 50 loads/hour

Stretch Film Roll detail

Max. external diameter (D):

230 mm

Internal diameter (d):

76 mm

Film roll height (h):

500 mm

Film thickness:

17-35 µm

Standard Options

Top sheet dispenser system to have the load well protected from humidity or dust

Pneumatic top platen

Machine color

The machine can be made according to specific requirements.

Dual carriage system and 32RPM high speed to achieve packing speed of  70 pallets per hour.

Packing height:  2500mm ; 3000mm









  Control System:

·Working modes: wrapping, or conveyor only

· PLC Control & touch screen HMI

·Automatic film clamp, the automatic film cut

·Automatic film brushing
·Counter to count pallets be wrapped
The ·Photo-eye pallet height sensor
·Parameter separate setting:
  Top wrap times, Bottom wrap times, Carriage up/down times, Reinforce wraps, Over-wrap
·Reinforce wrap allow more wrap on same location
·Over-wrap provide more wrap over the top of loads
·Powered pre-stretch film carriage up to 250% (1:2.5)
·Cycle pause capacity
·Film tension, Turntable speed, Carriage speed separate adjustment from the control panel
·Separate Auto-Start/Reset, Pause & E/S buttons
Option
·Top platen
·Packing height: 2500mm, 3000mm


Product Tags: Rotary Arm Pallet Stretch wrap , Pallet Wrapping Machine
