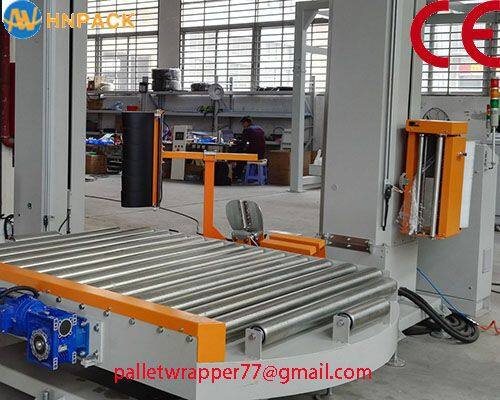

High Quality Grade Full-Automatic Turntable Type Pallet Stretch Film Wrapping Machine/Stretch Film Wrapper

High Quality Grade Full-Automatic Turntable Type Pallet Stretch Film Wrapping Machine/Stretch Film Wrapper photo-1
High Quality Grade Full-Automatic Turntable Type Pallet Stretch Film Wrapping Machine/Stretch Film Wrapper photo-2
High Quality Grade Full-Automatic Turntable Type Pallet Stretch Film Wrapping Machine/Stretch Film Wrapper photo-3
High Quality Grade Full-Automatic Turntable Type Pallet Stretch Film Wrapping Machine/Stretch Film Wrapper photo-4
US$ 11000 - 17000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
HENNOPACK
Place of Origin:
China
Model Number:
MS402H
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen,china
Delivery Detail:
30 days
Brand Name HENNOPACK
Place of Origin China
Model Number MS402H
Certification ce,ul,iso9001
After-sales Service Provided Engineers available to service machinery overseas
Weight 1200kg
Dimension(L*W*H) 3200*2000*2400mm
Voltage 3PH 380V 50Hz/60Hz
Power 3KW
Application Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Condition New
Automatic Grade Automatic
Driven Type Electric
Packaging Material Other, Metal, Plastic, Wood, pallet in line pallet wrap
Packaging Type Film

High Quality Grade Full-Automatic Turntable Type Pallet Stretch Film Wrapping Machine/Stretch Film Wrapper

Product Application

Best solution for automatic production line---inline fully automatic pallet wrapping machine


1.Motor Drive Conveyor, stable pressure on goods


2.Pallet wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet

3.Film provides extra support during transportation and storage to protect them from dust, moisture or damage

4.The pallet wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper,

pottery, food & beverage, et.

Parameters of In line turntable stretch wrap Model

1. High efficiency and low electricity-consumption, convenient in operation.

2. The wrapping type and times can be designed on customers' requirements.

3. Photoelectric sensor test pallet height automatic

4. Auto reset of turn table

5. Pre-stretch ratio: 300%

6. Programmable control and frequency converter is available.

7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.

Variable lift speed/ film tension control. Film up/down controls.

8.Pallet wrapping machine soft start and soft stop.

9.Suitable for heavy pallet

Turntable Diameter
2000mm
Turntable rotating speed
0-15rpm(Max)
Power Supply
110/220V, 50/60Hz
Driven
Gear Motor
Noise
75DB
Environment
Humidity98%; Temperature -10-40 degree
Packing Material
Stretch LLDPE film
Stretch film width
500mm
Coil internal diameter
76mm
Detailed Images
There is special single inspection department is for qualified parts and famous brand part selection control.
Film Clamp and Break structure

New Design with best performance for random pallet.

Stretch Film (Pre-stretch film motor can adjust up to 300% rate and help you save much film costs)

40-75% Memory begins to react
75-100% Medium backpressure
100-200% Backpressure that easily attains max. percentage.
200-250% It is suggested to chose proper films and stretching equipments to attain max. stretching
250%+ Affected by the stress, the film begins to intensely loose
300%+ Memory damaged, the film only equals to plastic film


Product Tags: Pallet Stretch Film Wrap , Stretch Film Wrapping Machine , Stretch pallet Wrapper
