Home > Products > wrapping machine > In-line Fully Automatic Power Stretch Pallet Wrapper/Turntable Wooden Pallet Stretch Wrap Wrapping Machine With Stretch Film

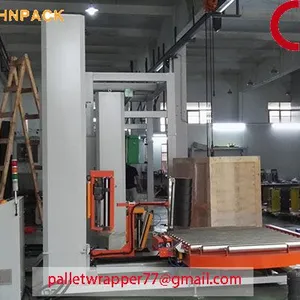

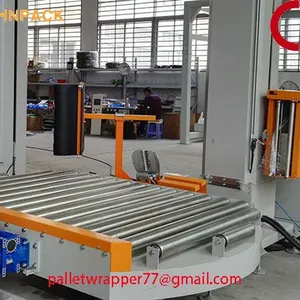

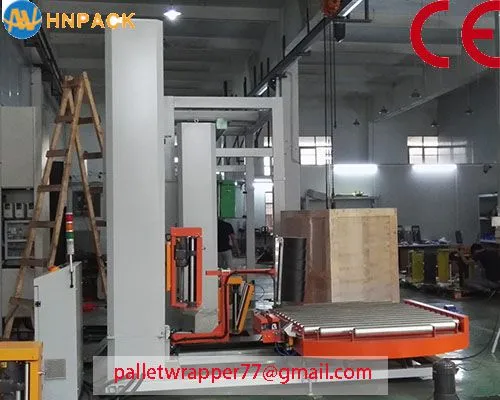

In-line Fully Automatic Power Stretch Pallet Wrapper/Turntable Wooden Pallet Stretch Wrap Wrapping Machine With Stretch Film
- 20 Unit / Units per Month
- shenzhen,china
- T/T PayPal
- 30 days
-
Without electricity waste tire doubling and tripling machine scrap tyre packing unpacking machine
-
MK60S Semi Automatic Strapping Machine
-
Mastek Strapping Head
-
MK900 Fully Automatic Strapping & Wrapping All In One Machine
-
Chocolate Candy Foil Folding Wrapping Machine
-
chicken/bouillon cube Wrapping machinery /cube packaging machinery
Product Details
| Brand Name: | HENNOPACK | Place of Origin: | China | Model Number: | MS402 |
| Certification: | ce,ul,iso9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 1200kg |
| Dimension(L*W*H): | L2745 x W1800 x H3330 MM | Voltage: | 3PH 380V 50Hz/60Hz | Power: | 3KW |
| Application: | Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Condition: | New | Automatic Grade: | Automatic |
| Driven Type: | Electric | Packaging Material: | Other, Metal, Plastic, Wood, pallet in line pallet wrap | Packaging Type: | Film |
Product Description
In-line Fully Automatic Power Stretch Pallet Wrapper/Stretch Pallet Wrapping Machine
Advantages:
Least labor - no human intervention required during wrapping. Machine alarms when no film.
Durable & tough - slewing gear turntable structure allows loads of over 3500kg, and very reliable.
Most suitable machine for integrating into the pallet packaging line of a palletising system.
Specifications
Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storaged to protect them from tip, spill or from being damaged. Additionally , wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc
Technical Data of stretch wrapper:
MS402 Automatic Pallet Wrapper with Top Sheet Dispenser Remote Controlled | |
Size of the product to be wrapped | |
Min load size(L XWxH) | 500 X 500 X 500 mm |
Max load size(LXW) | 1200 X 1200 mm , or custom made |
Max load height | 2100mm (Option: 2500mm, 3000mm) |
Max weight | 2000kgs (Option: 3000kgs) |
Film Carriage | |
Carriage | Power pre-stretch film carriage, stretch ratio up to 300% Carriage door opens for effortless roll change and thread film Film tension adjustable |
Machine Specification | |
Turntable rotation speed: | 3-15 rpm adjustable |
Turntable diameter | 1800mm / 2000mm |
Loading weight | 2000kg / 3500kg |
Carriage Up/down speed | 0 - 5.5 meters/min adjustable |
Power supply voltage | 3PH 380VAC or 440VAC |
Power | 2.5Kw |
Packing efficiency | 35 - 45 loads/hour |
Forklifting | Front & Rear |
Stretch Film Roll detail | |
Max. external diameter (D): | 230 mm |
Internal diameter (d): | 76 mm |
Film roll height (h): | 500 mm |
Film thickness: | 17-35 µm |
Standard Options | |
Pneumatic top platen | |
Machine color | |
Turntable diameter: 1800mm, 2000mm | |
Weight Capacity:3500kgs | |
Packing height: 2500mm ; 3000mm | |
Control System:
·Working modes: wrapping, or conveyor only
· PLC Control & touch screen HMI
·Automatic film clamp, automatic film cut
·Automatic film brushing
·Counter to count pallets be wrapped
·Photo-eye pallet height sensor
·Parameter separate setting:
Top wrap times, Bottom wrap times, Carriage up/down times, Reinforce wraps, Over-wrap
·Reinforce wrap allow more wrap on same location
·Over-wrap provide more wrap over the top of loads
·Powered pre-stretch film carriage up to 250% (1:2.5)
·Cycle pause capacity
·Film tension, Turntable speed, Carriage speed separate adjustment from the control panel
·Separate Auto-Start/Reset, Pause & E/S buttons
