DSEM-V DC Servo Motor

DSEM-V DC Servo Motor thumbnail-1
DSEM-V DC Servo Motor photo-1
US$ 100 - 400 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MOTEC
Place of Origin:
China
Model Number:
DSEM-V Series
Contact Supplier Request Quote Chat Now
Motec China Group
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Shenzhen
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MOTEC
Place of Origin China
Model Number DSEM-V Series

DSEM-V Servo motor is high quality brush-less DC motor with various of feedback options including serial magnetic encoder, 2500ppr incremental encoder, resolver and absolute encoder, which comes with IP65 protection and brake options. DSEM-V Servo motor covers power range from 50W to 1500W and power supply from 24VDC, 48VDC to 75VDC. DSEM-V Servo motor was designed and optimized with ARES intelligent DC servo motor and has been widely used in AGV, robotics, medical automation, intelligent warehouse etc. Applications and proved its excellent performances and reliability.







Voltage



Power

Rate Speed

Rated Torque

Peak Torque

Inertia (No Brake)



Matching Servo Driver



Servo Motor



Motor Encodder

V

W

rpm

Nm

Nm

Kg.cm²

Model

Model

24

200

3000

0.64

1.91

0.175

ARES8015-SM-AC

DSEM-V241230SM60L*





Serial   Magnetic Encoder

48

200

3000

0.64

1.91

0.175

ARES8015-SM-AC

DSEM-V480630SM60L*

48

400

3000

1.27

3.9

0.29

ARES8015-SM-AC

DSEM-V481230SM60L*

48

750

3000

2.39

7.1

1.82

ARES8020-SM-AC

DSEM-V482030SM80L*

24

50

3000

0.16

0.48

0.025

ARES8015-E-AC

DSEM-V240330E40L*













2500 PPR

Incremental Encoder

24

100

3000

0.32

0.95

0.051

ARES8015-E-AC

DSEM-V240530E40L*

24

200

3000

0.64

1.91

0.175

ARES8015-E-AC

DSEM-V241230E60L*

48

50

3000

0.16

0.48

0.025

ARES8015-E-AC

DSEM-V480230E40L*

48

100

3000

0.32

0.95

0.051

ARES8015-E-AC

DSEM-V480330E40L*

48

200

3000

0.64

1.91

0.175

ARES8015-E-AC

DSEM-V480630E60L*

48

400

3000

1.27

3.9

0.29

ARES8015-E-AC

DSEM-V481230E60L*

48

750

3000

2.39

7.1

1.82

ARES8020-E-AC

DSEM-V482030E80L*

24

50

3000

0.16

0.48

0.025

ARES8015-R-AC

DSEM-V240330R40L*















Resolver

24

100

3000

0.32

0.95

0.051

ARES8015-R-AC

DSEM-V240530R40L*

24

200

3000

0.64

1.91

0.175

ARES8015-R-AC

DSEM-V241230R60L*

48

50

3000

0.16

0.48

0.025

ARES8015-R-AC

DSEM-V480230R40L*

48

100

3000

0.32

0.95

0.051

ARES8015-R-AC

DSEM-V480330R40L*

48

200

3000

0.64

1.91

0.175

ARES8015-R-AC

DSEM-V480630R60L*

48

400

3000

1.27

3.9

0.29

ARES8015-R-AC

DSEM-V481230R60L*

48

750

3000

2.39

7.1

1.82

ARES8020-R-AC

DSEM-V482030R80L*

24

50

3000

0.16

0.48

0.025

ARES8015-S-AC

DSEM-V240330S40L*













17bits Absolute Encoder

24

100

3000

0.32

0.95

0.051

ARES8015-S-AC

DSEM-V240530S40L*

24

200

3000

0.64

1.91

0.175

ARES8015-S-AC

DSEM-V241230S60L*

48

50

3000

0.16

0.48

0.025

ARES8015-S-AC

DSEM-V480230S40L*

48

100

3000

0.32

0.95

0.051

ARES8015-S-AC

DSEM-V480330S40L*

48

200

3000

0.64

1.91

0.175

ARES8015-S-AC

DSEM-V480630S60L*

48

400

3000

1.27

3.9

0.29

ARES8015-S-AC

DSEM-V481230S60L*

48

750

3000

2.39

7.1

1.82

ARES8020-S-AC

DSEM-V482030S80L*



Note: Suffix ‘-P’ of driver model, means supporting PLC function,*=N means no brake, *=R means with brake

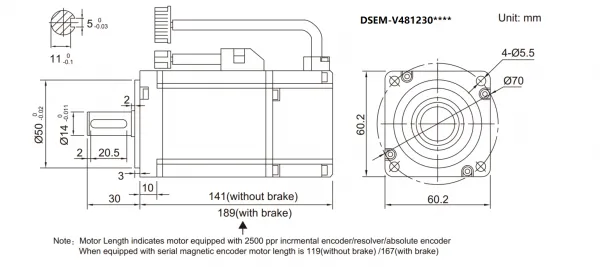

Below is a typical 400 motor drawing for your reference. We cannot upload all drawings and 3D models on this webiste.






For more information about DSEM-V DC Servo Motor please refer to ARES intelligent servo system catalogue or send you inquiry to whan@vip.sina.com.
