Home > Electrical & Electronics > Electric Motor > Stepper Motor > SD253 Stepper Drive

SD253 Stepper Drive

Name: SD253 Stepper Drive
Brand: MOTEC
SKU: 161203497
Availability: InStock

US$ 40 - 50 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

MOTEC

Place of Origin:

China

Model Number:

SD253

Contact Supplier Request Quote Chat Now

Motec China Group

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing or Shenzhen

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name MOTEC

Place of Origin China

Model Number SD253

Type Hybrid

Phase 2

Certification CE, ROHS

Current / Phase 3A/2-Phase

Holding Torque Refer to motor specs

Step Angle(degrees) 1.8

MOTEC SD253 Two Phase Stepper Drive

SD253 is a compact size stepper motor drive with a wide DC input range from 18~48VDC and 3A rate current. SD253 is majorly for OEM application where customer prefer a drive unit without casing. Specifications as below

*Low noise benefit from full micro-step smoothing technologies.

*Max input response frequency： 140KHZ.

*Position memory function: SD253 can memorize the position of stepper motor when power is off. When power is restored SD253 can drive the motor to the memorized position where power was lost.

*Two LED lights. Power light will turn on when there is input voltage. Status light will flash when there is an alert. The number of the flash times indicates alert code.

*Output Current：0 ～ 3A（Peak）. Any value in between.

*Auto-Half-Current function: Output current will anatomically reduced 50% when there’s no pulse input for a certain period.

*Micro-step：400 ～ 60000（pulse/turn). Any value in between.

SD253 can be connected to a PC via USB cable to set up working current and micro-step using MOTEC configuration software Motionstudio.

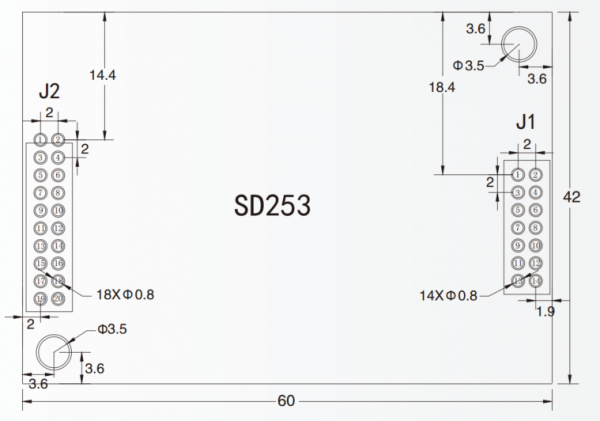

SD253 dimensions:

SD253 can be used to driveNEMA8 (20mm), NEMA11(28m)，NEMA14(35mm），NEMA16(39mm)， NEMA17(42mm)，NEMA23(57mm) 2-phase stepper drive with a holding torque range from 0.015 to 2.2N.m. It is recommended to use MOTEC 2-phase stepper motor with SD253 stepper drive however most 2-phase stepper motor on the market are compatible.

For more details please refer to MOTEC 2-phase Intelligent Stepper System Catalogue and MOTEC Intelligent stepper drive user’s manual or send an inquiry to whan@vip.sina.com

Product Tags: Stepper Drive , 2 phase
