Help CenterARES Intelligent DC Servo Drive 15A/20A
Related Products
ARES series DC servo system is an intelligent servo system features integrated servo drive, motion controller and optional PLC function. It can be easily controlled by PC, Touch Panel, PLC or third party controllers via various control&communication mode. ARES DC intelligent servo system is a value for money products with high power density and abundant control features & functions.
Function and Features
― 18-80VDC power supply
― 15A, 20A rated current
― Integrated servo drive, motion controller and PLC
― Ladder diagram programming
― Support MOTECIAN, MODBUS, CANOPEN communication protocols
― Support RS232,RS485,CAN BUS
― 8 digital input, 3 digital output and 1 analog input
― Integrated T curve and S curve velocity profile generating function and PVT function
― Support serial magnetic encoder, incremental encoder, resolver and absolute encoder
― Instruction set and DLL library available
― Network control mode, pulse/direction control mode, analog control mode, PWM control mode and PLC mode
― Multiple gain group real-time switching function
― Speed control/position control/torque control options
― MOTIONSTUDIO configuration software and MOTIONPAINTER programming software.
― Integrated temperature protection, over-current protection, over-voltage protection, undervoltage protection, out of tolerance position protection, out of tolerance speed protection, I²T current protection, etc.

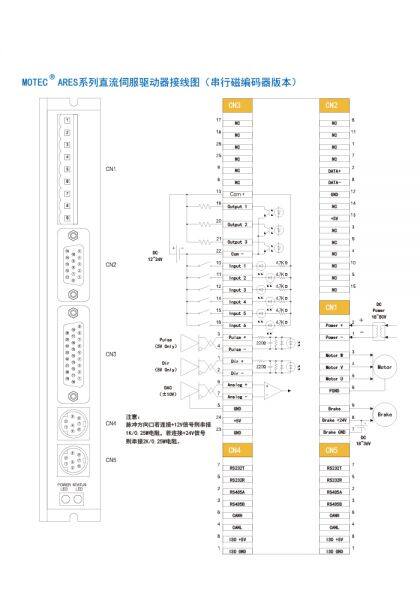

Serial Magnetic Encoder is a quadrature encoder developed by MOTEC(China) based onRS485 communication protocol with 2.5MBPS data transfer rate and 16384 pulse per turnresolution。It has been widely accepted because of its simple connection, high reliability andhigh resolution features. The length of motors with serial magnetic encoder is also shorter than those with other feedback options.
Resolver is an analog electromagnetic transducer and the electrical outputs are continuous through one complete mechanical revolution. The device offers infinite theoretical resolution.With its simple transformer design and lack of any on board electronics, resolver is much more rugged than almost any other type of feedback device, making it a good choice for harsh environments involving temperature extremes, high shock and vibration, elevated radiation levels, and contaminants such as dirt, grease, and oil.
All MOTEC DC servo motors can be ordered with resolver as feedback device. The working temperature of standard motors is -20℃ to 40℃ but motors with -40℃~55℃ working temperature are available for order. MOTEC DC servo motors are equipped with aviation connectors which enable MOTEC DC servo motors to be able to work in very harsh natural environment.
Absolute encoder(17bits) is available for MOTEC DC servo motors and the 17bits encoder can memorize position of a motor when it lose its power supply (up to 215). There is a battery in the encoder cable and it needs to be replaced periodically.
For more information about ARES intelligent servo drive and motor please refer to ARES intelligent servo system catalogue or send you inquiry to whan@vip.sina.com.
