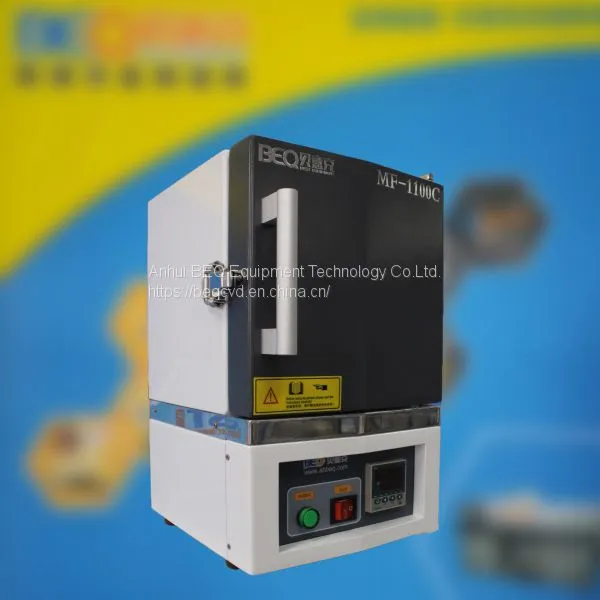

Mini Muffle furnace (1L) MF-1100C-S

Voltage

· Voltage rated:  AC 220V 50/60HZ

Working Temperature

· Max. Temperature: 1100 °C ( 1 hr)

· Continuous working temperature: ≤1000℃

· Recommended Heating Rate: 5-40°C /min

Max. heating rate

· 100℃/min

Temperature Control

· PID automatic control and auto-tune function.

· 30 programmable segments for precise thermal processing.

· Built-in protection for the over-heated and broken thermocouple.

Thermocouple

· K type

Heating Elements

· Fe-Cr-Al Alloy doped by Mo

Temperature Accuracy

+/- 1 °C

Dimensions

· Chamber size(L*D*H): 100*100*100mm (1L)

· Furnace size(L*W*H): 230*250*370mm

Net Weight

12kg

Packing dimensions(L*W*H)

370*300*450mm（wooden case）

Shipping weight

18kg
