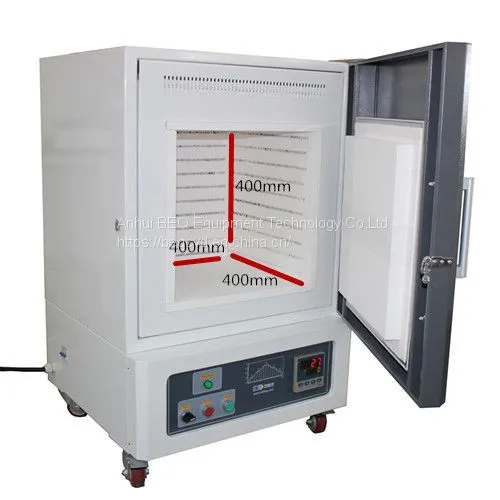

1100℃ 64L Muffle furnace MF-1100C-L
Main Features
Ø Used in Lab as material sintering furnace, annealing furnace, smelting furnace, dental furnace, etc.
Ø It is possible to add a vent to be used as Nitrogen protection furnace, Argon protection furnace, Oxidizing furnace, Carbonizing furnace.
Ø A general necessary electric furnace for experiment in Lab.
Technical Parameters
|
Power
|
· Power rated: 6KW (220V)
|
|
Voltage
|
· Voltage rated: AC 220V 50/60HZ
|
|
Furnace structure
|
· High purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands · Double air cooling structure to control furnace surface Temp. no more than 60℃ when furnace is heated into max. Temp. · The spring door buckle is used to solve the contraction gap caused by high temperature in the chamber of the equipment.
|
|
Working Temperature
|
· Max. Temperature: 1100 °C · Continuous working temperature: ≤1000℃ · Recommended Heating Rate: ≤10°C /min
|
|
|
· PID automatic control and auto-tune function. · 30 programmable segments for precise thermal processing. · Built-in protection for the over-heated and broken thermocouple.
|
|
Thermocouple
|
· K type
|
|
Heating Elements
|
· Fe-Cr-Al Alloy doped by Mo
|
|
Temperature Accuracy
|
+/- 1 °C |
|
Dimensions
|
· Chamber size(L*D*H): 400*400*400mm (64L) · Furnace size(L*W*H): 650*620*940mm
|
Net Weight |
115kg |
|
Shipping dimensions(L*W*H)
|
690*660*1000mm（wooden case）
|
|
Shipping weight
|
170kg |
|
Attention
|
The equipment is not sealed, and can not be put into toxic, harmful, inflammable and explosive gas. Can add the inlet port to pass through the inert gas or oxygen.
|
Compliance |
· CE Certified |
