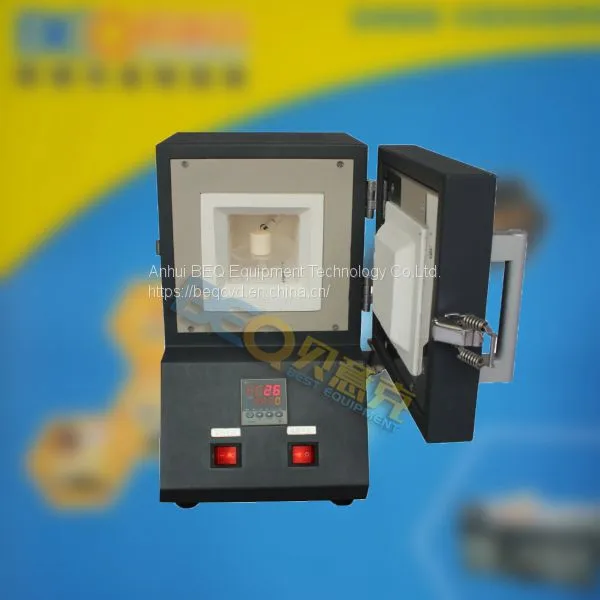

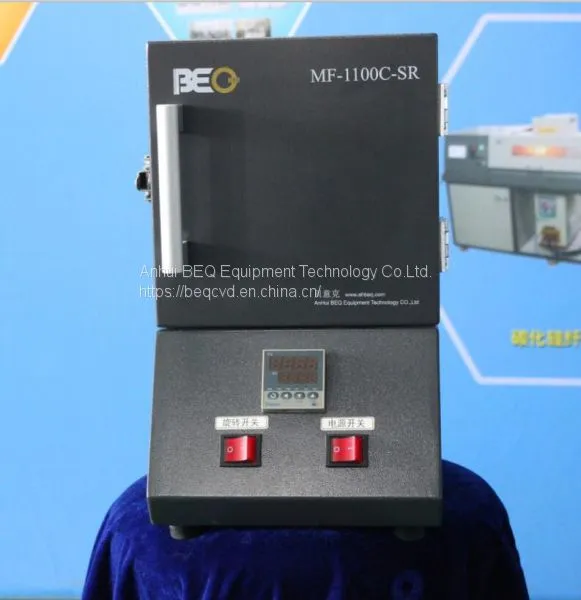

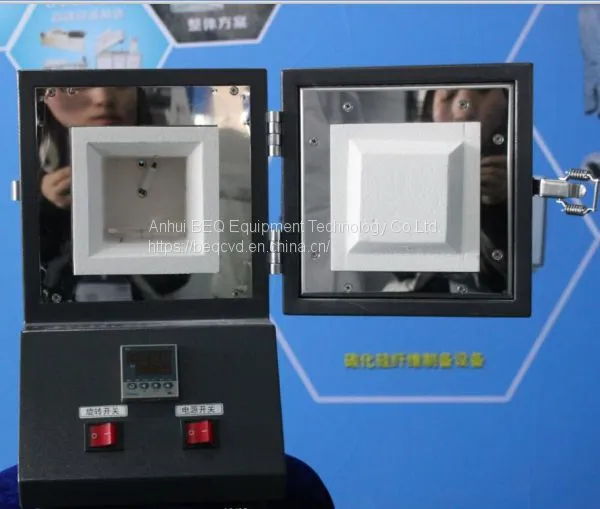

Mini chamber electric lab furnace

Voltage

· Voltage rated:  AC 208-240V 50/60HZ

Furnace construction

High purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands

· Two 8 mm diameter hose barb connectors (gas inlet and outlet)

· Double air cooling structure to control furnace surface Temp. no more than 60℃ when furnace is heated into max. Temp.

·  The spring door buckle is used to solve the contraction gap caused by high temperature in the chamber of the equipment

Working Temperature

· Max. Temperature: 1100 °C

· Continuous working temperature: ≤1000℃

· Recommended Heating Rate: 5-20°C /min

Max. heating rate

· 30℃/min

Temperature Controller

· PID automatic control and auto-tune function.

· 30 programmable segments for precise thermal processing.

· Built-in protection for the over-heated and broken thermocouple.

Thermocouple

· K type

Heating Elements

· Fe-Cr-Al Alloy doped by Mo

Temperature Accuracy

+/- 1 °C

Rotate plate

· Material:quartz

· Size:Φ70mm

· Rotating rate:5r/min

Dimensions

· Chamber size(L*D*H): 100*100*100mm (1L)

· Furnace size(L*W*H): 290*220*370mm

Net Weight

12kg

Gross weight

18kg

· Attention

· The equipment is not sealed, and can not be put into toxic, harmful, inflammable and explosive gas. Can add the inlet port to pass through the inert gas or oxygen.

Compliance

· CE Certified
