pneumatic telescoping 8m Mobile Camera Security mast

FOB Price

USD $1,102.58 - $1,510.25 / Set

1 Set(Min.Order)

Supply Ability 2000 Set / Sets per Month
Port Shanghai port China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents,pneumatic telescoping 8m mast		Place of Origin	Tianjin, China
Model Number	TAL-P8-2-25-AT8

Product Description

Pneumatic telescopic mast

* Air compressor/foot punp/hand pump for lifting control.

* Provide convenient installation and use for communications, security, lighting...
* Portable, retractable, widely application

* Accept customerized request

* Specification range: extended height from 1m to 35m. max head-load from 5kg to 300kg...

* Based on different mount place, different accessories will be provided.

Specification

Specification pneumatic telescoping 8m Mobile Camera Security mast
Model No.	TAL-P8-2-25-AT9
Extended height	8m
Retracted height	2m
Max head-load	25kg
Mast self weight( without tripod)	around 42kg
Mast sections No.	6 sections
Section No.& tube OD*Wall thickness	1# 118/4.0mm 2# 98/4.0mm 3# 82/3.5mm 4# 66/3.0mm 65 # 51/3.0mm 6# 36/3.0mm

Acessories
Mount model	Ground fixed type---with tripod
Accessories	Air compressor------------------------------------------1pc 110V~220V for choose working pressure:0.2MPa Air hose-----------------------------------------------------1pc Control invalve-------------------------------------------1pc Top flange--------------------------------------------------1pc Guy wire-----------------------------------------------------3pcs Guy stakes--------------------------------------------------3pcs Car clamp---------------------------------------------------1pc

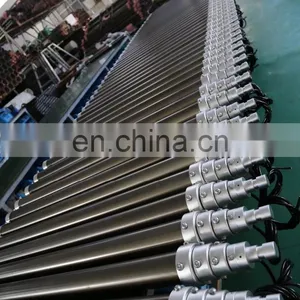

Detailed Images

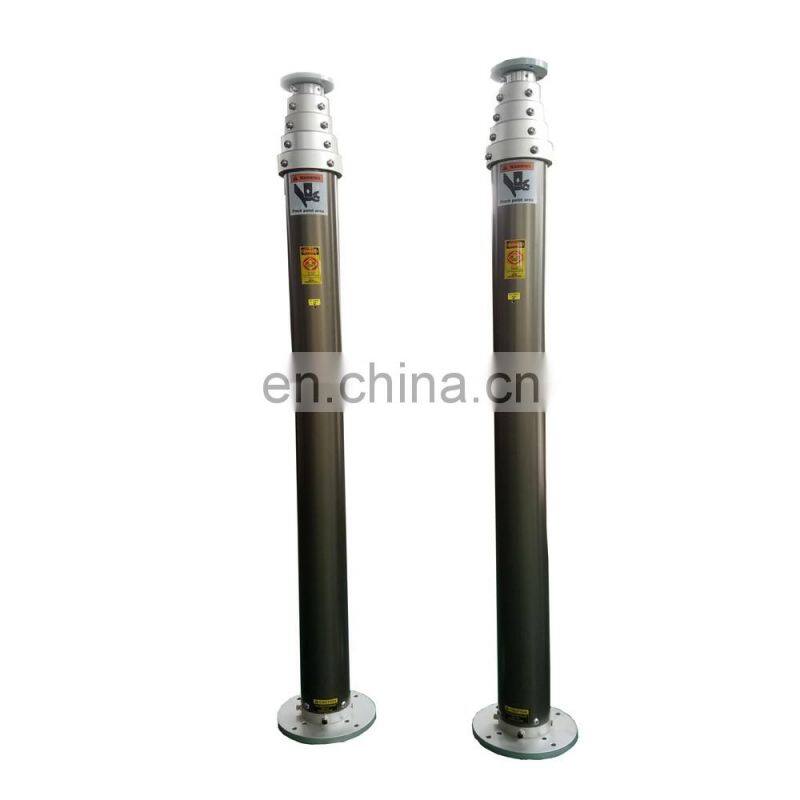

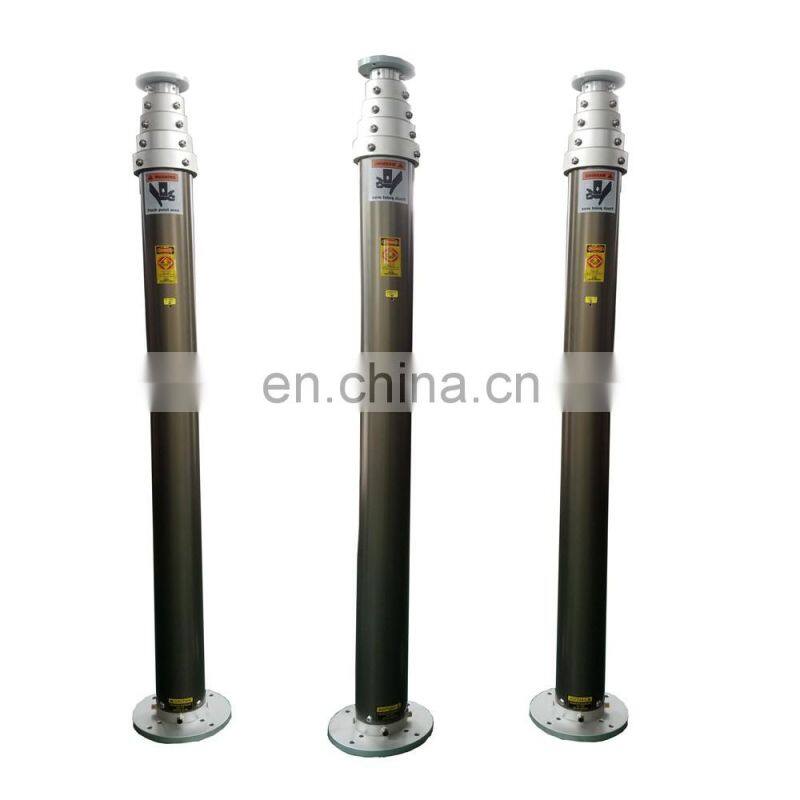

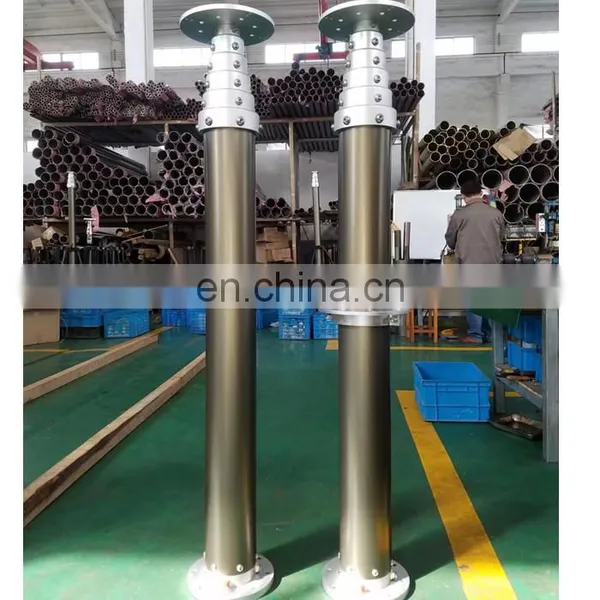

pneumatic telescoping 8m Mobile Camera Security mast

Other Application pictures

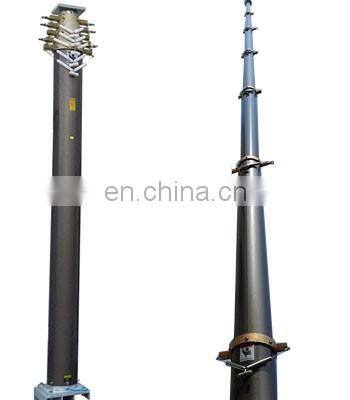

lighting mast

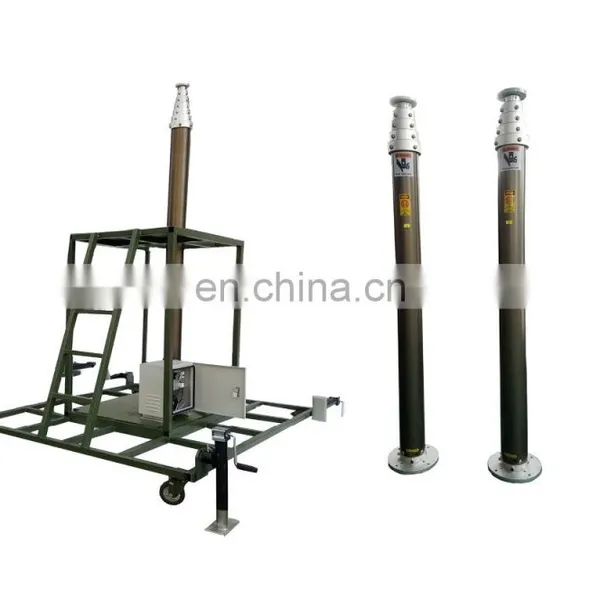

camera tripod

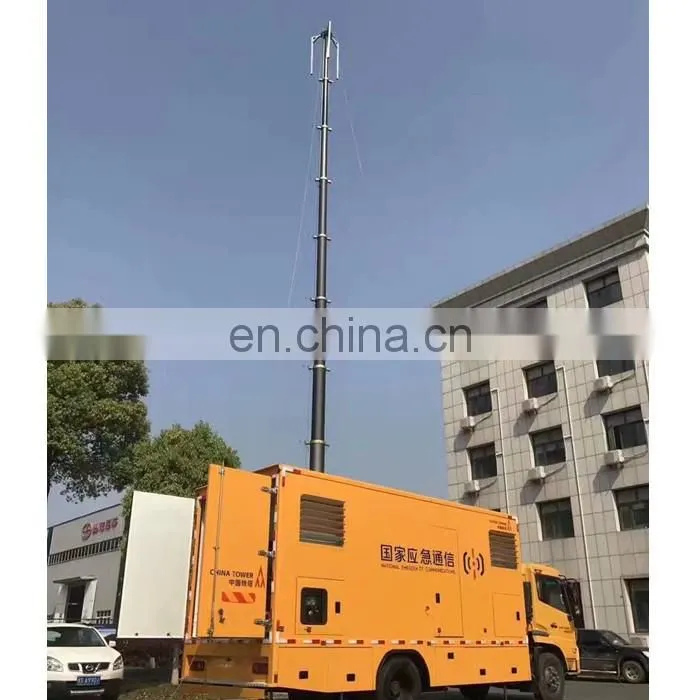

Vehicle mounted

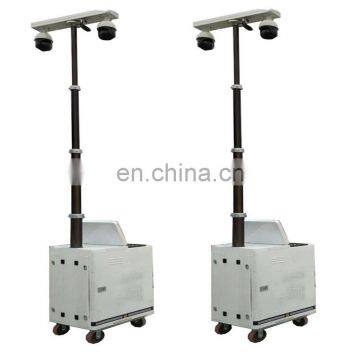

camera mast

Packing & Delivery

pneumatic telescoping 8m Mobile Camera Security mast

Packed into a Plywood case.

Mast and accessories will be packed into a plywood case.

inner matainnig parts will be filled with foam.

Gross weight is around 105kg

Measurement:220*45*50cm

if special request on the packge, we can do it for you.

Our Service

Pre-sale

Reply within 24 hours by e-mail/whatsapp/Wechat/Skype.

Profession advice and design based on customers request.

After-sales

One year warranty for the conditions except the damage caused by Artificial operation, extreme weather conditions.

Our Company

TJTALENTS ENTERPRISE CO.,LTD

* Professional design and supplier for the telescopic mast since 1995---manaul/motorized/pneumatic model.

* Have own technician team for providing proffestional ODM help.
* Golden supplier since 2007 on Alibaba, provide professional export help.

* Our products are widely used all over the world, in places such as Australia, Singapore, Brazil, Chile, UK, Germany, Netherlands, Spain,USA, India, Malaysia and more.

* Our mast are widely used in Military, Emergency, Illumination, Photography,Meteorologic Measurement, etc.

* We just do the good quality mast in long service time.

Other Specification

Pneumatic telescopic mast
MODEL No.	Extended Height （m）	Retracted Height （m)	Bottom OD (mm)	TOP OD (mm)	Section NO.	Head-load （KG）
TAL-2.0-1.3-150-AT8	2	1.3	118	98	2	150
TAL-3.0-1.5-50-AT8	3	1.5	98	66	3	50
TAL-4.0-1.85-250-AT8	4	1.85	180	140	3	250
TAL-4.0-1.3-20-AT8	4	1.3	87	43	4	20
TAL-4.5-1.2-30-AT7	4.5	1.2	140	51	6	30
TAL-4.5-1.65-50-AT9	4.5	1.65	118	66	4	50
TAL-5.0-1.7-40-AT8	5	1.7	98	51	4	40
TAL-5.0-1.75-110-AT8	5	1.75	140	82	4	110
TAL-5.0-1.75-30-AT9	5	1.75	98	51	4	30
TAL-6.0-1.7-30-AT8	6	1.7	118	51	5	30
TAL-6.0-1.75-12-AT8	6	1.75	87	28	5	12
TAL-6.0-2.0-50-AT9	6	2	118	66	4	50
TAL-6.0-1.95-30-AT8	6	1.95	87	43	4	30
TAL-6.0-1.5-25-AT9	6	1.5	118	51	5	25
TAL-7.0-1.95-40-AT8	7	1.95	118	51	5	40
TAL-8.0-1.8-50-AT9	8	1.8	160	51	7	50
TAL-8.0-2.5-250-AT8	8	2.5	229	118	5	250
TAL-8.0-2.2-60-AT7	8	2.2	140	66	5	60
TAL-8.0-2.0-25-AT8	8	2	118	36	6	25
TAL-8.0-2.0-25-AT9	8	2	118	36	6	25
TAL-8.4-2.3-30-AT8	8.4	2.3	118	51	5	30
TAL-9.0-2.15-30-AT8	9	2.15	140	51	6	30
TAL-10.0-2.4-30-AT7	10	2.4	140	51	6	30
TAL-10.0-2.4-15-AT8	10	2.4	118	36	6	15
TAL-12.0-2.7-250-AT8	12	2.7	279	140	7	250
TAL-12.0-2.6-15-AT9	12	2.6	140	36	7	15
TAL-15.0-3.2-30-AT9	15	3.2	160	51	7	30
TAL-15.0-3.5-150-AT9	15	3.5	229	98	6	150
TAL-16.0-3.0-30-AT8	16	3	180	51	8	30
TAL-18.0-3.0-100-AT8	18	3	279	66	10	100
TAL-20.0-3.3-55-AT8	20	3.3	229	66	9	55
TAL-30.0-4.0-30-AT8	30	4	316	51	13	30

NOTE:

For the model NO.: AT7 for the mast with cable design we have done for our clients, if you need cable, cable size need customers provide.

AT8 for the mast without the cable and the lock

AT9 for the mast with the lock
