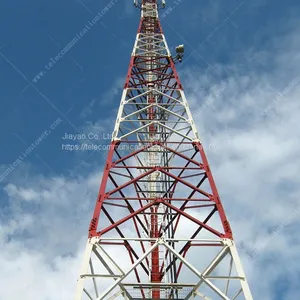

Wifi Radio Antenna Mast Steel Tower

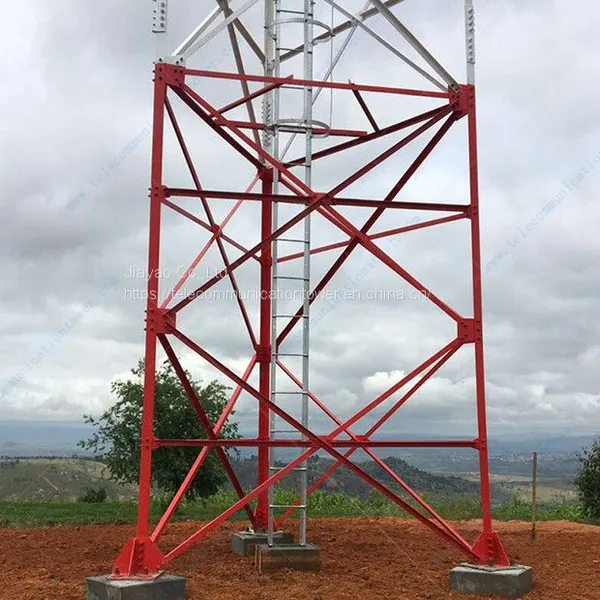

3 Legged Angular Steel Tower
What Is 3 Legged Angular Steel Tower?
3 legged angular steel tower is a kind of self-supporting communication tower，It can also be called 3 legged angular steel communication tower, telecommunication tower, antenna tower.
3 legged angular steel tower are higher steel structures used all over the world for communication applications. Their function to support antennas for telecommunications, broadcasting and WIFI internet. 3 legged angular steel tower is usually come with pre-designed accessories, just like platforms, ladders with cable tray, antenna brackets, aviation light brackets and fall prevention device, etc.
3 legged angular steel tower are based on either ground or building, and they are commonly designed in trusses structure to carry the wind loads and seismic loads. 3 legged angular steel tower need less ground area and suit to construct in many situations.
Highlights of JIAYAO self-supporting tower
● Leading design concept.
● Versatility, modular design, flexible configuration of accessories.
● Tower group design, modification and adjustment.
● The tower section is universal, and the same tower section taken from the same mother tower is completely common in different tower types.
● Lower costs.
● Self-supporting tower light weight.
● Self-supporting tower installation cost is good.
● Self-supporting tower installation time is short.
● High reliability.
● The design and processing of JIAYAO's self-supporting tower products are in line with ISO 9001:2000 quality management system.
● 50 years design life.
What Is The Details of JIAYAO 3 Legged Angular Steel Tower?
Design standard |
TIA/EIA-222-G/F |
Welding standard |
AWS D1.1 |
Galvanization standard |
ASTM A123 |
Design Wind Speed |
Up to 200 km/h |
|
Angular steel Material quality |
Mild Steel:Q235B/ASTM A36/S235JR |
High Steel:Q345B/ASTM A572/S355JR | |
Allowable deflection |
0.5 ~1.0 degree |
Bolt grade |
Gr 4.8, Gr 6.8, Gr 8.8 |
Marking |
Hydraulic Press Stamping |
What is the height of JIAYAO 3 Legged Angular Steel Tower we can provide?
10m up to 50m is the tower height we can provide.
What antenna can be mounted on JIAYAO 3 Legged Angular Steel Tower?
Type of antenna |
Description |
Panel antenna (sector antenna) |
GSM antenna for 5G:2.52m×0.265m×0.13m, 1.31m×0.32m×0.11m |
Parabolic reflector(dish antenna) |
Microwave antenna Diameter:0.6m, 0.9, 1.2m, 1.6m, 1.8m, 2.4m |
RRU |
Radio Remote Unit:0.45m×0.32m×0.25m |
WIFI antenna |
Grid or parabolic directional antenna / yagi / omnidirectional antennas |
Other Antenna |
VHF/UHF Dual-band Antenna FM antenna |
More information please click here.
