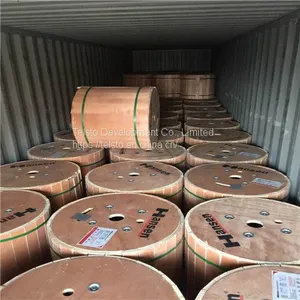

Rf Coaxial Cable
US$ 1 - 2
MOQ: 200 Meters
Key Specifications
Get Latest Price
Brand Name:
Telsto
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hansen 50ohm RF 50114 Coaxial Cable Zhuhai Factory 1-1/4'' RF Feeder Coaxial CableUS$ 1 - 2MOQ: 2000 Meters -
Hansen 50ohm RF 50 7/8'' Coaxial Feeder Cable RF 5078 Coaxial Shielded Cable for TransmissionUS$ 1 - 2MOQ: 2000 Meters
-
Hansen 50ohm RF 50 1/2'' Regular Standard Coaxial Feeder CableUS$ 1 - 2MOQ: 2000 Meters
-
DIN Male to Male for 12 Superflex Cable Assembly Jumper CableUS$ 1 - 2MOQ: 200 Meters
-
Low Loss 7/8 RF Coaxial Feeder Cable SupplierUS$ 1 - 2MOQ: 2000 Meters
Brand Name
Telsto
Place of Origin
China
Quick Details
Model Number: Feeder cable
Type: Coaxial
Number of Conductors: 1
Inner conductor material: Helical corrugated copper tube
Outer conductor material: Annular corrugated copper tube
Jacket: LSOH flame-retardant polyolefin
Dielectric: Foamed polyethylene
Cut-off frequency: 2.3 GHz
Maximum pulling force: 3500 N
single bending: 240 mm
Operating temperature range: -20 ~ +70℃
Characteristics impedance: 50 ± 1Ω
Construction
| Inner conductor | Helical Copper tube | ∅20.50±0.10 |
| Dielectric | Foamed polyethylene | ∅49.70±0.20 |
| Outer conductor | Annular corrugated copper tube | ∅55.00±0.30 |
| Jacket | LSOH flame-retardant polyolefin,Black | ∅60.50±0.50 |
Mechanical Characteristics
| Maximum pulling force | 3500N |
| Minmum bending radius | |
| •singal bending | 240mm |
| •repeated bending(15 times) | 560mm |
| Operating temperature range | -20~+70℃ |
Electrical Characteristics
| Characteristics impedance | 50±1 ohm |
| Return Loss(VSWR)(±3%) | 1.10 AT 400~500 MHz |
| 1.10 AT 800~1000 MHz | |
| 1.10 AT 1700~2200 MHz | |
| 1.15 AT 0~3000 MHz | |
| Velocity | 88% |
| Capacitance | 77pF/m |
| Cut-off frequency | 2.3GHz |
| Peak RF voltage rating | 16000V |
| Peak power rating | 425kW |
| Insulation resistance | 3000 Mohm.km |
Attenuation
| Frequency (Mhz) | Attenuation dB/100 m | Average power (kW) |
| 100 | 0.563 | 21.00 |
| 150 | 0.742 | 16.20 |
| 300 | 1.079 | 9.70 |
| 400 | 1.238 | 9.06 |
| 450 | 1.376 | 8.69 |
| 600 | 1.683 | 7.60 |
| 800 | 1.851 | 6.45 |
| 900 | 2.079 | 5.76 |
| 1000 | 2.396 | 5.64 |
| 1250 | 2.693 | 4.91 |
| 1500 | 2.891 | 4.38 |
| 1700 | 3.020 | 4.05 |
| 1800 | 3.198 | 3.74 |
| 2000 | 3.426 | 3.50 |
| 2100 | 3.436 | 3.43 |
| 2200 | 3.465 | 3.52 |
Note:
Maximum attenuation value shall be 105% of the nominal value Standard Conditions:
Attenuation,ambient temperature 20℃;Average power,ambilent tempweature 40℃; inner conductor temperature 100℃.
Technical Data
| Type | Impedance | Diameter of Conductor | Jacket | Weight | ||
| (Ohms) | Inner(mm) | Outer(mm) | Thickness(mm) | Diameter(mm) | (kg/km) | |
| 1-5/8" | 50 | 17.30 | 46.50 | 1.75 | 50.00 | 1310 |
| 1-1/4" | 50 | 13.10 | 35.80 | 1.80 | 39.40 | 980 |
| 7/8" | 50 | 9.05 | 24.90 | 1.30 | 27.50 | 530 |
| 5/8" | 50 | 7.05 | 19.80 | 1.20 | 22.20 | 400 |
| 1/2" | 50 | 4.80 | 13.80 | 1.00 | 15.80 | 240 |
| 3/8" | 50 | 3.15 | 9.53 | 0.85 | 11.20 | 135 |
| 7/8"S | 50 | 9.42 | 24.90 | 1.05 | 27.50 | 430 |
| 1/2"S | 50 | 3.60 | 12.20 | 0.70 | 13.20 | 120 |
| 1/4"S | 50 | 1.01 | 6.40 | 0.60 | 7.40 | 80 |
