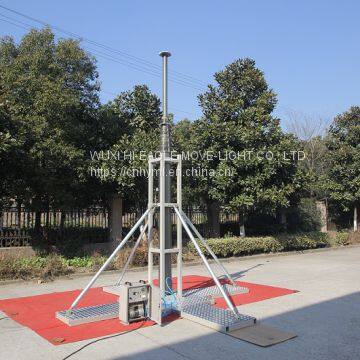

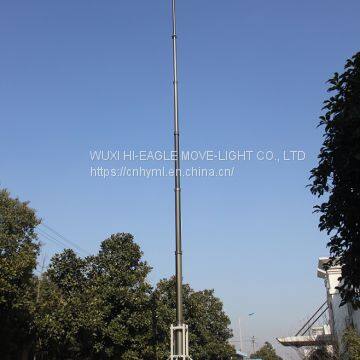

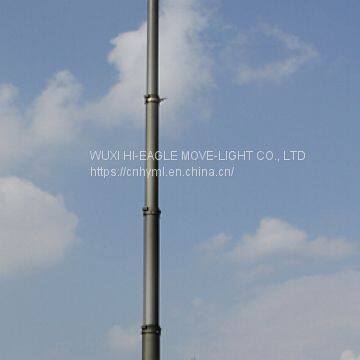

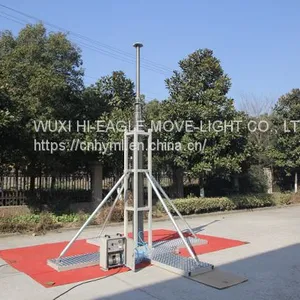

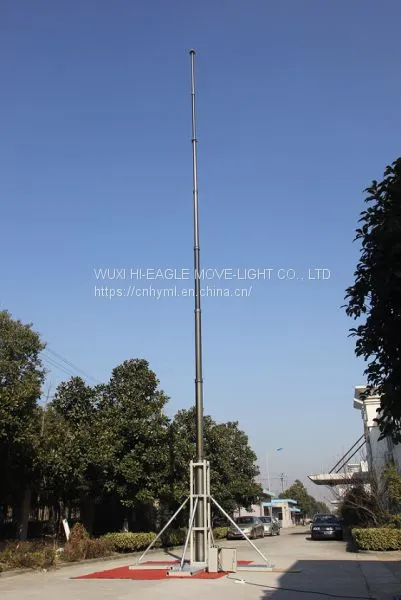

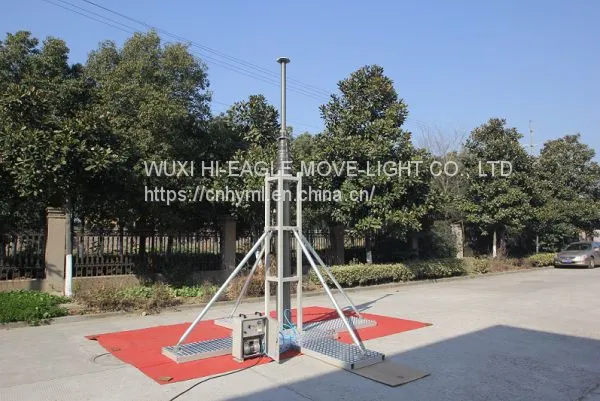

We are the manufacturer who is specialized in manufacturing the various pneumatic telescopic masts for different applications.
The height is from 1m(3.2feet) - 32m(105feet)
The top payload is from 1kgs (2.2lbs) - 450kgs(992lbs.)
On the top, you can mount the camera, antenna, light, radar, mobile equipment etc.
We will supply the top platform adapter or custom interfaces for your equipment
Our mast is made of high strength, lightweight 6063 aluminum alloy
The surface finish is hard anodized coating that is strong corrosion resistance
ATTN: Erin Feng
WhattsApp: 0086 13706155652
E-mail: erinyixing@126.com
Skype: erinyixing
Model |
sections |
Closed height |
Extended height |
Outer diameter |
Inner diameter |
Max. Payload |
Net weight |
A2-60-800-1280 |
2 |
800mm (2.6ft) |
1280mm (4.2ft) |
67mm (2.63inch) |
46mm (1.81inch) |
42kg/ 92Lb |
3kg/ 6.6lbs |
A4-75-1200-3634 |
4 |
1200mm (3.93ft) |
3634mm (11.92ft) |
82mm (3.22inch) |
30mm (1.18inch) |
18kg/ 39Lb |
10kg/ 22Lbs |
A4-110-1360-4105 |
4 |
1360mm (4.46ft) |
4105mm (13.46ft) |
118mm (4.64inch) |
60mm (2.36inch) |
72kg/ 158Lb |
18kg/ 39Lbs |
A4-110-1600-5209 |
4 |
1600mm (5.24ft) |
5209mm (17.09ft) |
118mm (4.64inch) |
60mm (2.36inch) |
72kg/ 158Lb |
21kg/ 46Lbs |
A5-110-1600-6006 |
5 |
1600mm (5.24ft) |
6006mm (19.70ft) |
118mm (4.64inch) |
46mm (1.81inch) |
42kg/ 92Lb |
20kg/ 44Lbs |
A4-110-2360-8009 |
4 |
2360mm (7.74ft) |
8009mm (26.27ft) |
118mm (4.64inch) |
60mm (2.36inch) |
72kg/ 158Lb |
30kg/ 66Lbs |
A4-150-3000-10000 |
4 |
3000mm (9.84ft) |
10000mm (32.80ft) |
160mm (6.29inch) |
90mm (3.54inch) |
162kg/ 357Lb |
62kg/ 136Lbs |
A7-150-2381-12000 |
7 |
2381mm (7.81ft) |
12000mm (39.37ft) |
160mm (6.29inch) |
46mm (1.81inch) |
42kg/ 92Lb |
65kg/ 143Lbs |
A6-215-3110-14515 |
6 |
3110mm (10.20ft) |
14515mm (47.62ft) |
229mm (9.01inch) |
110mm (4.33inch) |
242kg/ 533Lb |
155kg/ 341Lbs |
A9-270-2600-15094 |
9 |
2500mm (8.2ft) |
15094mm (49.52ft) |
284mm (11.18inch) |
90mm (3.45inch) |
162kg/ 357Lb |
210kg/ 462Lbs |
A7-270-3400-18063 |
7 |
3400mm (11.15ft) |
18063mm (59.26ft) |
284mm (11.18inch) |
130mm (5.11inch) |
388kg/ 855Lb |
265kg/ 584Lbs |
A8-270-3500-20981 |
8 |
3500mm (11.48ft) |
20981mm (68.89ft) |
284mm (11.18inch) |
110mm (4.33inch) |
242kg/ 533Lb |
285kg/ 628Lbs |
