3m 10ft Lightweight Mobile Portable Telescopic Aerial Photography Mast

3m 10ft Lightweight Mobile Portable Telescopic Aerial Photography Mast thumbnail-1
3m 10ft Lightweight Mobile Portable Telescopic Aerial Photography Mast thumbnail-2
3m 10ft Lightweight Mobile Portable Telescopic Aerial Photography Mast thumbnail-3
3m 10ft Lightweight Mobile Portable Telescopic Aerial Photography Mast thumbnail-4
3m 10ft Lightweight Mobile Portable Telescopic Aerial Photography Mast thumbnail-5
3m 10ft Lightweight Mobile Portable Telescopic Aerial Photography Mast thumbnail-6
3m 10ft Lightweight Mobile Portable Telescopic Aerial Photography Mast photo-1

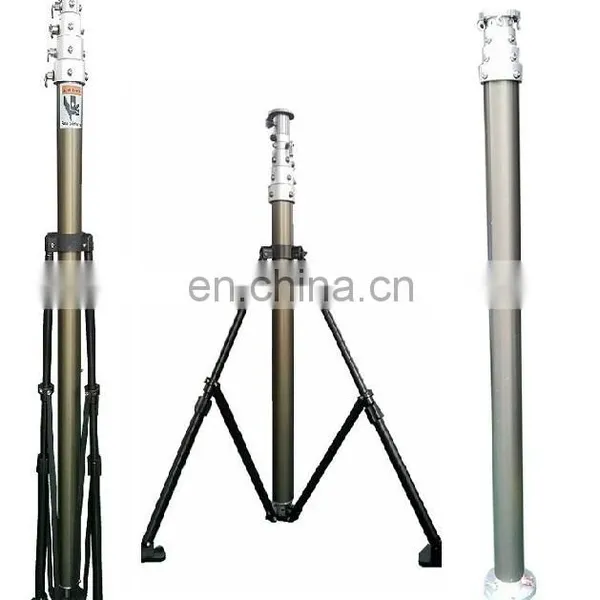

3m 10ft Lightweight Mobile Portable Telescopic Aerial Photography Mast photo-2
3m 10ft Lightweight Mobile Portable Telescopic Aerial Photography Mast photo-3
3m 10ft Lightweight Mobile Portable Telescopic Aerial Photography Mast photo-4
3m 10ft Lightweight Mobile Portable Telescopic Aerial Photography Mast photo-5
3m 10ft Lightweight Mobile Portable Telescopic Aerial Photography Mast photo-6
US$ 350 - 450 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Talents
Place of Origin:
Tianjin, China
Model Number:
TAL-P3-1.35-30
Contact Supplier Request Quote Chat Now
Dingzhou City Great Wall Daily Chemical Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of Tianjin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Talents
Place of Origin Tianjin, China
Model Number TAL-P3-1.35-30
Product Description

What is a Pneumatic Mast?

           Pneumatic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion

of air- more appropriate for short time using.

Classification of masts

Model"AT8"---no cable and no lock, for Short time using and small head load.
Model"AT9"---with lock. for long time using and large head load.
Model"AT7"---with cable. for mounting camera, lights or antenna.

Common application

Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.

Mast specification

Available Extended height:2m to 30m
Head load capacity:5kg to 500kg.


Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.

If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.

Specification
3m 10ft lightweight mobile portable telescopic aerial photography mast
Model No.
TAL-P3-1.35-30
Extended height
3m
Retracted height
1.35m
Max head load
30kg
Sections Numbers
7sections
each section tube OD& thickness
1# 70/3.5mm      2# 56/3.0mm
3#   43/4.5mm
Mast net weight
12kg( without  accessories)
Max wind load
110km/h ( with guy wire fixed)
accessories
model
unit
guy wire
1 set
ground anchor
1 set
air compressor or manual pump
1 unit
tripod or car clamp
1 unit
top plate
1 unit
bottom base
1 unit

more details as follows

Swift mast cover with the pulling wire rings Warning that the mast fully retracted. And protect the mast

Car Clamps for vehicle mounting mast.
Assist the pole to be fixed to a truck or car
The rings for fixing the pulling wire when mast without the tripod and no mounting fixed accessories
Control box:With the swift for up and down, small air compressor
Air pipe,Pressure gauge
Basic guy accessories

manual hand pump

Packing & Delivery

3m 10ft lightweight mobile portable telescopic aerial photography mast

package
carton packed
normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request
plywood packed
normal package is plywood case for extended height more than 10m, weight more than
70kg mast
Other Specification
Pneumatic telescopic mast
MODEL No.
Extended
Height
(m)
Retracted
Height
(m)
Bottom
OD
(mm)
TOP
OD
(mm)
Section
NO.
Head-load
(KG)
TAL-2.0-1.3-150-AT8
2
1.3
118
98
2
150
TAL-3.0-1.5-50-AT8
3
1.5
98
66
3
50
TAL-4.0-1.3-20-AT8
4
1.3
87
43
4
20
TAL-4.5-1.65-50-AT9
4.5
1.65
118
66
4
50
TAL-5.0-1.7-40-AT8
5
1.7
98
51
4
40
TAL-5.0-1.75-30-AT9
5
1.75
98
51
4
30
TAL-6.0-1.7-30-AT8
6
1.7
118
51
5
30
TAL-6.0-1.75-12-AT8
6
1.75
87
28
5
12
TAL-6.0-2.0-50-AT9
6
2
118
66
4
50
TAL-6.0-1.95-30-AT8
6
1.95
87
43
4
30
TAL-6.0-1.5-25-AT9
6
1.5
118
51
5
25
TAL-7.0-1.95-40-AT8
7
1.95
118
51
5
40
TAL-8.0-1.8-50-AT9
8
1.8
160
51
7
50
TAL-8.0-2.2-60-AT7
8
2.2
140
66
5
60
TAL-8.0-2.0-25-AT8
8
2
118
36
6
25
TAL-9.0-2.15-30-AT8
9
2.15
140
51
6
30
TAL-10.0-2.4-30-AT7
10
2.4
140
51
6
30
TAL-12.0-2.7-250-AT8
12
2.7
279
140
7
250
TAL-15.0-3.5-150-AT9
15
3.5
229
98
6
150
TAL-16.0-3.0-30-AT8
16
3
180
51
8
30
TAL-18.0-3.0-100-AT8
18
3
279
66
10
100
TAL-20.0-3.3-55-AT8
20
3.3
229
66
9
55
TAL-30.0-4.0-30-AT8
30
4
316
51
13
30

NOTE:

above specification does not include all we can do.

Certifications
Our Service

1.Reply inquiry within 24 hours by Alibaba, e-mail, whatsapp, wechat or Skype.
2.Based on clients' request, provide fittable design drawing and data sheet.
3.One year warranty after sale.
4.We have technicians to give use suggestions and solutions to problems in use.

Welcome to contact
