8m steel high communication antenna telescopic mast
8m steel high communication antenna telescopic mast
Specification list
| Article number: | TAL-M2 to M25 |
| Max top payload: | 10 kgs to 200kg |
| Closed length: | 4000mm |
| Extended length: | 25000mm |
| Main poles' sections: | 10 sections |
| sec.1#(OD/ID/thickness): | 316/300/8mm |
| sec.2#(OD/ID/thickness): | 279/265/7mm |
| sec.3#(OD/ID/thickness): | 252/240/6mm |
| sec.4#(OD/ID/thickness): | 229/207/12mm |
| sec.5#(OD/ID/thickness): | 202/190/6mm |
| sec.6#(OD/ID/thickness): | 180/170/5mm |
| sec.7#(OD/ID/thickness): | 160/150/5mm |
| sec.8#(OD/ID/thickness): | 140/130/5mm |
| sec.9#(OD/ID/thickness): | 118/110/4mm |
| sec.10#(OD/ID/thickness): | 98/90/4mm |
| Bottom base size (dia./thickness): | 480/20mm |
| Top plate size (dia./thickness): | 250/20mm |
| Working temperature: | -15--+60C |
| Collar style: | Non-locking collar |
| Air pump power: | AC220v/1000w |
| Wind load: | 80km/h |
| Pulling cord's OD: | 2mm |
| Material for main pole: | aluminum alloy 6063B |
| Material for bottom base: | iron steel |
| Material for accessories: | iron steel |
| Material for air hose | PU tube |
| Material for guy ropes: | Nylon |
| Material for other asscessaires | iron steel |
Packing list:
| Mian pole in 5 sections: | 1 set |

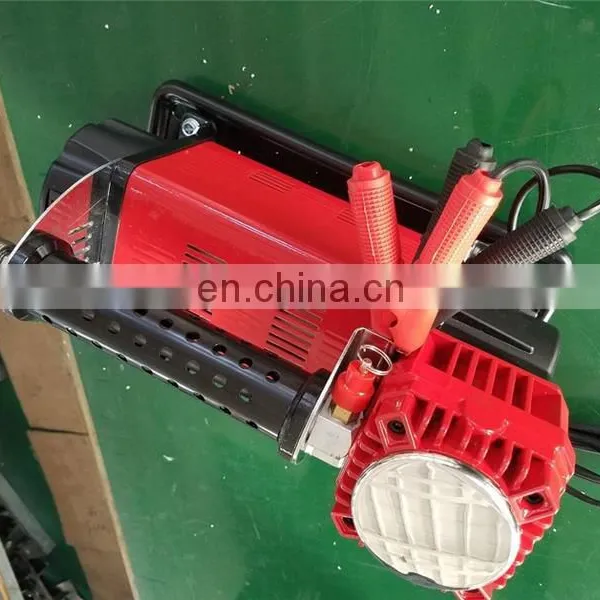

| Air pump(AC220v/300w): | 1 set |
| Air hose: | 5 m |
| Bottom base: | 1 piece |
| top plate: | 1 piece |
| Pulling cord: | 3 sets |
| Ground anchor: | 3 pieces |
| Clamp: | 1 piece |
| Tripal: | 1 set |

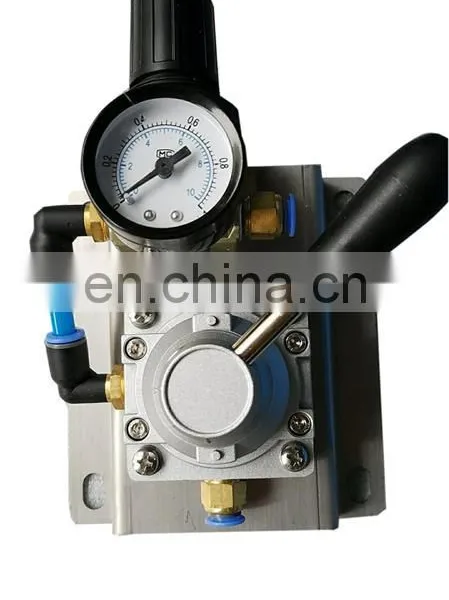

| Hand operated valve | 1 piece |
| Surface color Technology: | phosphoric acid anodizing |
| Packing method: | One set to be packed into a carton with inside filled by Polyurethane foam |
8m steel high communication antenna telescopic mast

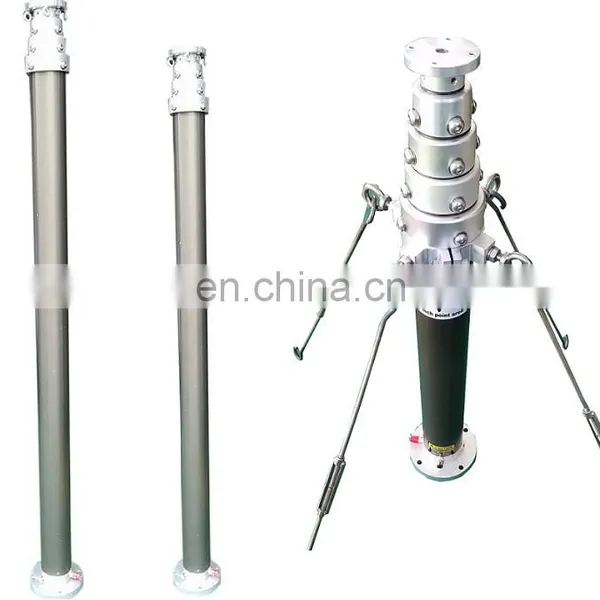

1. The telescopic mast is made of aluminum alloy or stainless steel tube.
2. It can help lamplight, camera, Antenna, mobile and military, emergency, illumination,
photography, meteorological measurement equipments rise and drop to a certain
height after its work.
3. It can be mounted on the vehicle or stand on the ground with tripod.
4. It has manual, motorized and pneumatic lifting method, the extended length up to 35m
and closed length to 1.3m.
5. The top payload up to 400kgs, wind load: 80 km/h., working temperature: -15--+60℃.
Except the motorized lifting telescopic mast, we still have manula lifting and pneumatic lifting
telescopic masts available for supply as follows, please refer to the catalogue attached below:
Pneumatic lifting telescopic mast
| Article No. |
Retracted height (mm) |
Extended height (mm) |
Bottom OD (mm) |
Top OD (mm) |
Section No.s |
Top payload (kgs) |
| TAL-2.0-1.3-150-AT8 | 1300 | 2000 | 118 | 98 | 2 | 150 |
| TAL-3.0-1.1-30-AT8 | 1100 | 3000 | 87 | 43 | 4 | 30 |
| TAL-3.0-1.5-50-AT8 | 1500 | 3000 | 98 | 66 | 3 | 50 |
| TAL-3.2-1.5-200-AT8 | 1500 | 3200 | 160 | 118 | 3 | 200 |
| TAL-3.2-1.5-250-AT8 | 1500 | 3200 | 180 | 140 | 3 | 250 |
| TAL-4.0-1.85-250-AT8 | 1850 | 4000 | 180 | 140 | 3 | 250 |
| TAL-4.0-1.3-30-AT8 | 1300 | 4000 | 87 | 43 | 4 | 30 |
| TAL-4.0-2.0-250-AT8 | 2000 | 4000 | 180 | 140 | 3 | 250 |
| TAL-4.0-1.2-10-AT8 | 1200 | 4000 | 87 | 43 | 4 | 10 |
| TAL-4.5-1.5-30-AT8 | 1500 | 4500 | 87 | 36 | 4 | 30 |
| TAL-4.5-1.2-30-AT7 | 1200 | 4500 | 140 | 51 | 6 | 30 |
| TAL-4.5-1.65-50-AT9 | 1650 | 4500 | 118 | 66 | 4 | 50 |
| TAL-5.0-1.75-35-AT9 | 1750 | 5000 | 98 | 51 | 4 | 35 |
| TAL-5.0-1.7-40-AT8 | 1700 | 5000 | 98 | 51 | 4 | 40 |
| TAL-5.0-1.75-110-AT8 | 1750 | 5000 | 140 | 82 | 4 | 110 |
| TAL-5.0-1.75-30-AT9 | 1750 | 5000 | 98 | 51 | 4 | 30 |
| TAL-5.0-1.45-10-AT8 | 1450 | 5000 | 87 | 43 | 4 | 10 |
| TAL-5.5-1.8-30-AT8 | 1800 | 5500 | 87 | 43 | 4 | 30 |
| TAL-6.0-1.7-30-AT8 | 1700 | 6000 | 118 | 51 | 5 | 30 |
| TAL-6.0-1.9-30-AT8 | 1900 | 6000 | 87 | 36 | 4 | 30 |
| TAL-6.0-2.0-30-AT8 | 2000 | 6000 | 98 | 51 | 4 | 30 |
| TAL-6.0-1.75-12-AT8 | 1750 | 6000 | 87 | 28 | 5 | 12 |
| TAL-6.0-1.95-30-AT8 | 1950 | 6000 | 98 | 51 | 4 | 30 |
| TAL-6.0-2.0-50-AT9 | 2000 | 6000 | 118 | 66 | 4 | 50 |
| TAL-6.0-1.8-60-AT8 | 1800 | 6000 | 140 | 66 | 5 | 60 |
| TAL-6.0-1.95-30-AT8 | 1950 | 6000 | 87 | 43 | 4 | 30 |
| TAL-6.0-1.5-25-AT9 | 1500 | 6000 | 118 | 51 | 5 | 25 |
| TAL-6.0-1.8-15-AT8 | 1800 | 6000 | 98 | 51 | 4 | 15 |
| TAL-7.0-1.95-40-AT8 | 1950 | 7000 | 118 | 51 | 5 | 40 |
| TAL-8.0-1.8-50-AT9 | 1800 | 8000 | 160 | 51 | 7 | 50 |
| TAL-8.0-2.2-30-AT8 | 2200 | 8000 | 118 | 51 | 5 | 30 |
| TAL-8.0-2.5-250-AT8 | 2500 | 8000 | 229 | 118 | 5 | 250 |
| TAL-8.0-2.2-60-AT7 | 2200 | 8000 | 140 | 66 | 5 | 60 |
| TAL-8.0-2.0-25-AT8 | 2000 | 8000 | 118 | 36 | 6 | 25 |
| TAL-8.0-2.0-25-AT9 | 2000 | 8000 | 118 | 36 | 6 | 25 |
| TAL-8.4-2.3-30-AT8 | 2300 | 8400 | 118 | 51 | 5 | 30 |
| TAL-9.0-2.15-30-AT8 | 2150 | 9000 | 140 | 51 | 6 | 30 |
| TAL-9.0-2.4-30-AT8 | 2400 | 9000 | 118 | 51 | 5 | 30 |
| TAL-10.0-2.2-20-AT8 | 2200 | 10000 | 140 | 51 | 6 | 20 |
| TAL-10.0-2.4-30-AT7 | 2400 | 10000 | 140 | 51 | 6 | 30 |
| TAL-10.0-2.2-15-AT8 | 2200 | 10000 | 140 | 36 | 7 | 15 |
| TAL-10.0-2.4-15-AT8 | 2400 | 10000 | 118 | 36 | 6 | 15 |
| TAL-12.0-2.7-250-AT8 | 2700 | 12000 | 279 | 140 | 7 | 250 |
| TAL-12.0-2.6-15-AT9 | 2600 | 12000 | 140 | 36 | 7 | 15 |
| TAL-12.0-2.6-15-AT8 | 2600 | 12000 | 180 | 51 | 7 | 15 |
| TAL-12.0-2.6-30-AT9 | 2600 | 12000 | 160 | 36 | 7 | 30 |
| TAL-15.0-3.2-30-AT9 | 3200 | 15000 | 160 | 51 | 7 | 30 |
| TAL-15.0-3.0-20-AT8 | 3000 | 15000 | 140 | 36 | 7 | 20 |
| TAL-15.0-2.65-20-AT8 | 2650 | 15000 | 180 | 30 | 9 | 20 |
| TAL-15.0-3.5-150-AT9 | 3500 | 15000 | 229 | 98 | 6 | 150 |
| TAL-16.0-3.0-30-AT8 | 3000 | 16000 | 180 | 51 | 8 | 30 |
| TAL-18.0-3.3-220-AT9 | 3300 | 18000 | 280 | 118 | 8 | 220 |
| TAL-18.0-3.0-100-AT8 | 3000 | 18000 | 279 | 66 | 10 | 100 |
| TAL-20.0-3.3-55-AT8 | 3300 | 20000 | 229 | 66 | 9 | 55 |
| TAL-30.0-4.0-30-AT8 | 4000 | 30000 | 316 | 51 | 13 | 30 |
