30ft High Vehicle Lamp Lighting Mast

Name: 30ft High Vehicle Lamp Lighting Mast
Brand: Talents
Availability: InStock

FOB Price

US$ 717.9 - 780.2

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents	Place of Origin	Tianjin, China
Material	Aluminum	Type	Round
Application	Square

Product Description

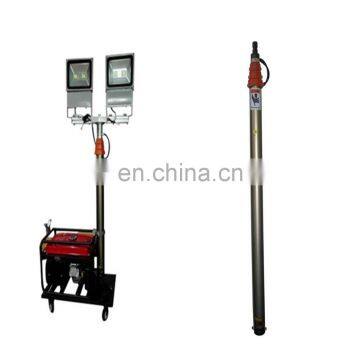

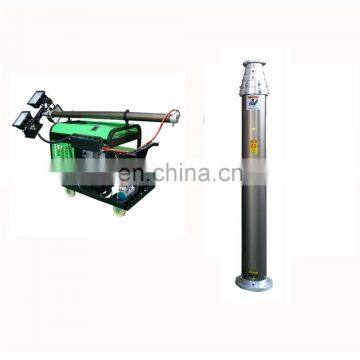

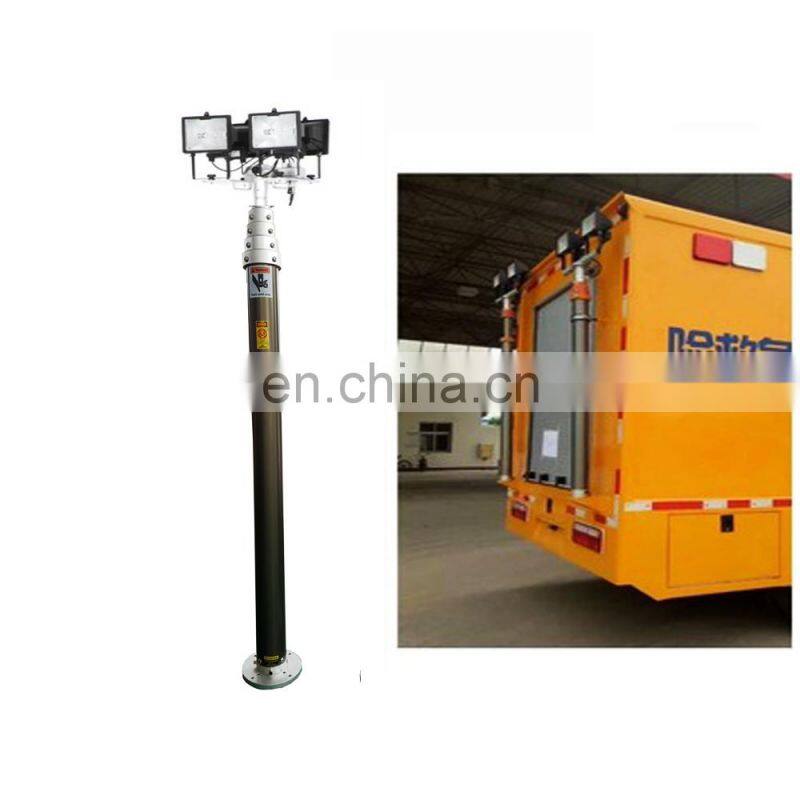

30ft high vehicle lamp lighting mast

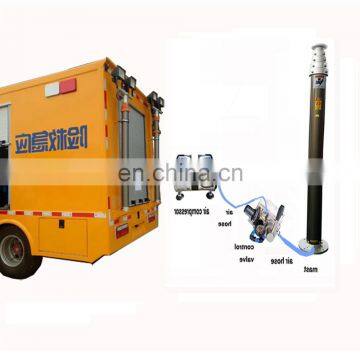

Pneumatic lift mast---- with air compressor or foot pump

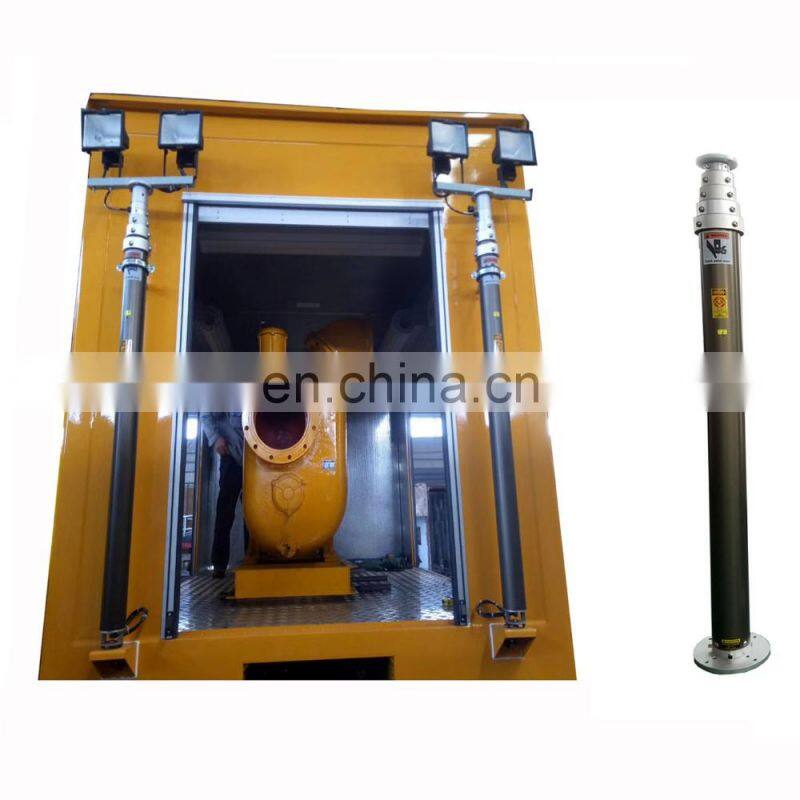

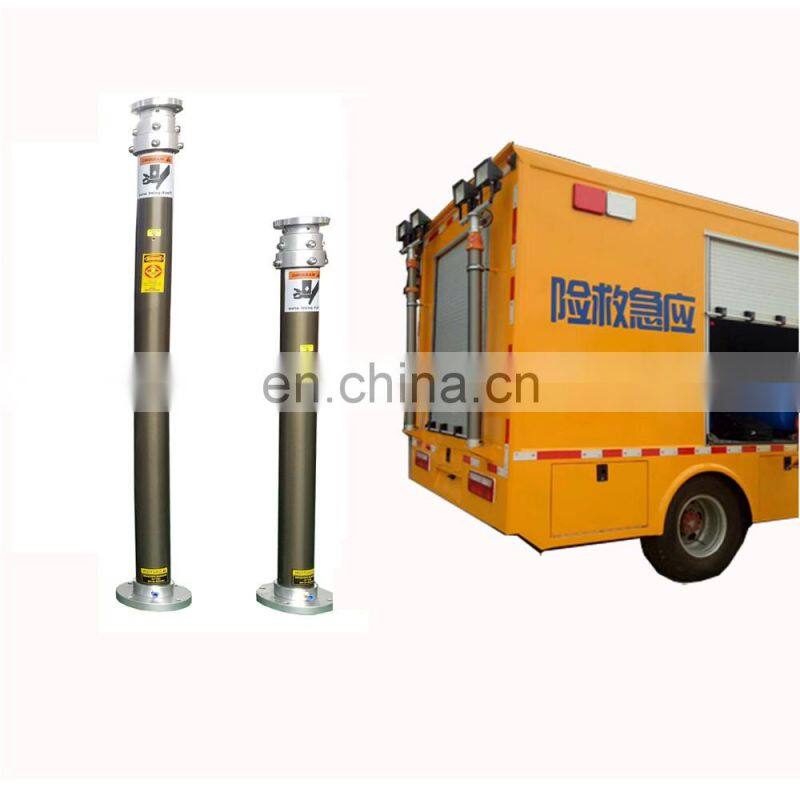

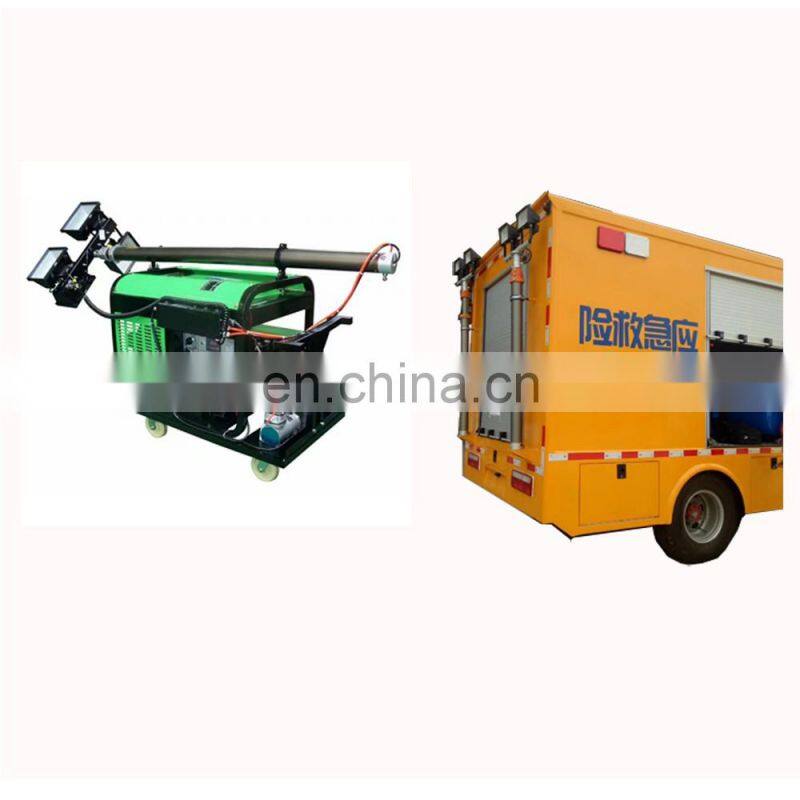

Vehicle mounted model---with car clamp and mounted bracket

Used as light pole----LED light or other lamps

About cable design---if need, we can do internal cable or external cable.

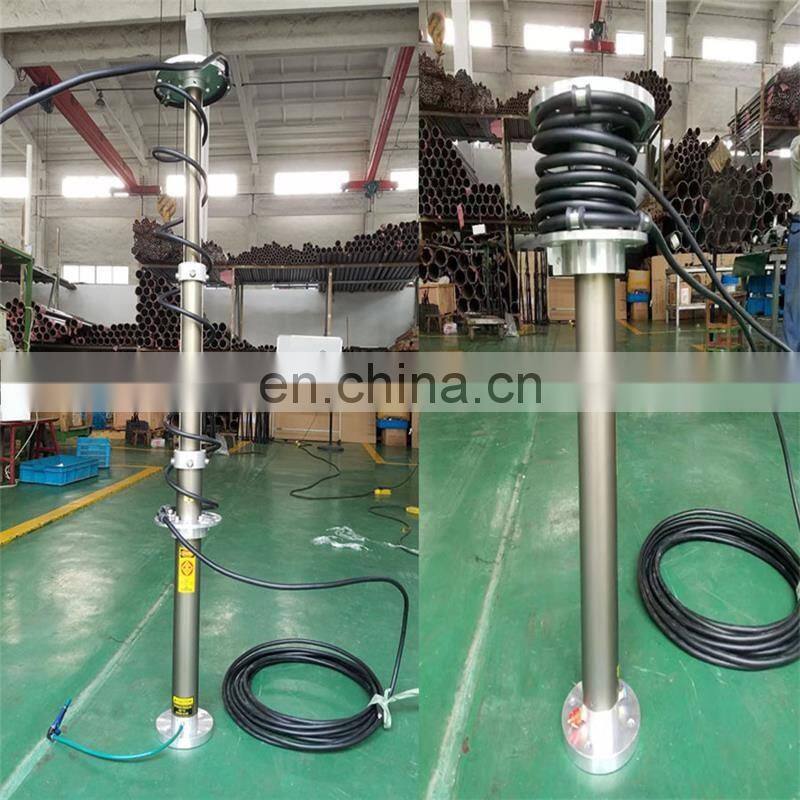

external cable design

Spring shape for better using

Internal cable design

inside the mast

Specification

Specification 30ft high vehicle lamp lighting mast
Model No.	TAL-P6-2-20-AT8
Material	aluminum alloy
surface treatment	Hard anodizing
Color	Bronze
Extended height	6.0m
Retracted height	2.0m
Max head-load	20kg
Mast self weight( without tripod)	around 20kg
Mast sections No.	4sections
Section No.& tube OD*Wall thickness	1#70/3.5mm, 2# 56/3.0mm, 3# 43/4.5m, 4#28/3.0mm
top flange	100mm/10mm (diameter/thickness)
bottom base	220mm/20mm(diameter/thickness)
working pressure	0.2MPa
Accessories	1. Air hose--------------------------1pc 2.Top flange-----------------------1pc 3.Bottom base----------------------1pc 4.Air compressor-------------------1pc 5.pulling rope-----------------------3pcs 6.car clamp-------------------------------1pc ntrol valve-----------------------1pc

Detail

30ft high vehicle lamp lighting mast

Mast material is aluminum alloy 6063-T5

Tube surface treatment is Hard anodizing

Color:Bronze and origin silver color for choose.

Acessories for 30ft high vehicle lamp lighting mast

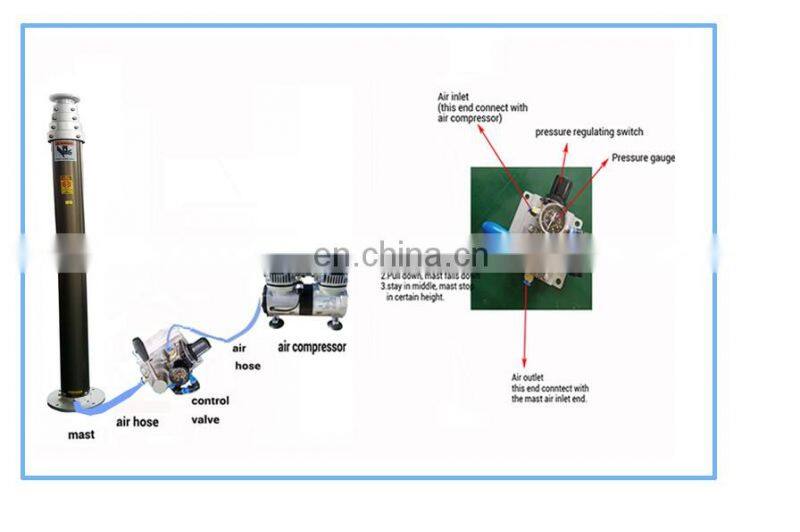

Operation steps

1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..

WARRATY PERIOD:

Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.

Installation Instructions:
1)The pneumatic telescopic mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.
2)The pneumatic telescopic mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast. Its connection must be solid and reliable.

Packing & Delivery

Package information based on different specifitation
extended height less than 9m also weight less than 70kg	packed into a carton, inner space filled with foam to protect mast. wooden case if customer request.
extended height more than 9m also weight more than 70kg	packed into plywood case, inner space filled with foam to protect mast.

Certifications

Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Other Specification

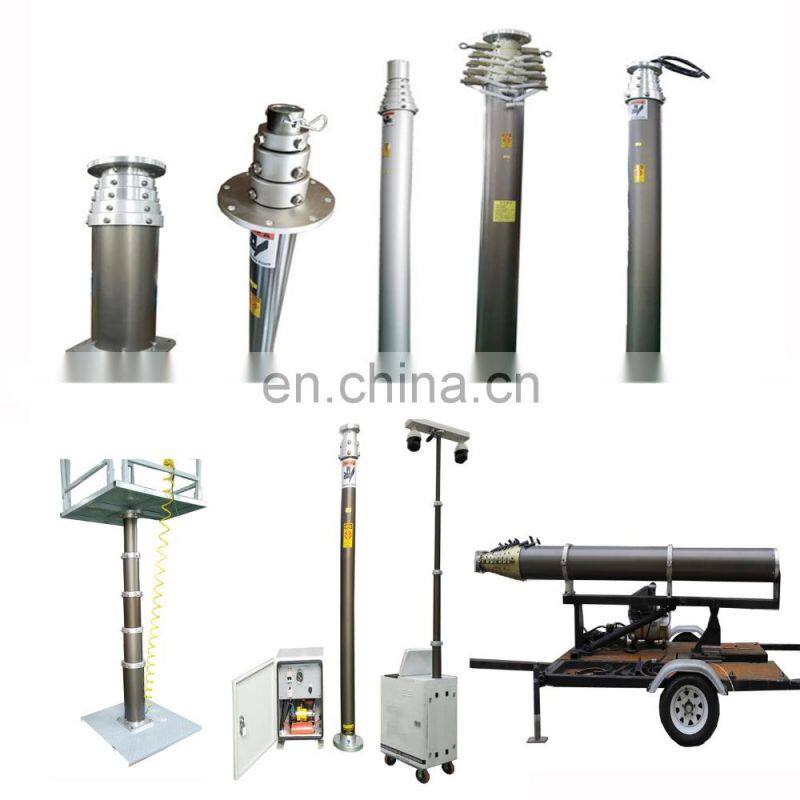

Pneumatic telescopic mast
MODEL No.	Extended Height (m)	Retracted Height (m)	Bottom OD (mm)	TOP OD (mm)	Section NO.	Head-load (KG)
TAL-2.0-1.3-150-AT8	2	1.3	118	98	2	150
TAL-3.0-1.5-50-AT8	3	1.5	98	66	3	50
TAL-4.0-1.3-20-AT8	4	1.3	87	43	4	20
TAL-4.5-1.65-50-AT9	4.5	1.65	118	66	4	50
TAL-5.0-1.7-40-AT8	5	1.7	98	51	4	40
TAL-5.0-1.75-30-AT9	5	1.75	98	51	4	30
TAL-6.0-1.7-30-AT8	6	1.7	118	51	5	30
TAL-6.0-1.75-12-AT8	6	1.75	87	28	5	12
TAL-6.0-2.0-50-AT9	6	2	118	66	4	50
TAL-6.0-1.95-30-AT8	6	1.95	87	43	4	30
TAL-6.0-1.5-25-AT9	6	1.5	118	51	5	25
TAL-7.0-1.95-40-AT8	7	1.95	118	51	5	40
TAL-8.0-1.8-50-AT9	8	1.8	160	51	7	50
TAL-8.0-2.2-60-AT7	8	2.2	140	66	5	60
TAL-8.0-2.0-25-AT8	8	2	118	36	6	25
TAL-9.0-2.15-30-AT8	9	2.15	140	51	6	30
TAL-10.0-2.4-30-AT7	10	2.4	140	51	6	30
TAL-12.0-2.7-250-AT8	12	2.7	279	140	7	250
TAL-15.0-3.5-150-AT9	15	3.5	229	98	6	150
TAL-16.0-3.0-30-AT8	16	3	180	51	8	30
TAL-18.0-3.0-100-AT8	18	3	279	66	10	100
TAL-20.0-3.3-55-AT8	20	3.3	229	66	9	55
TAL-30.0-4.0-30-AT8	30	4	316	51	13	30

NOTE:

above specification does not include all we can do.

Our Company

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.

Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans

Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers

an one for one timely information feedback, we have organized an expert team for quality control and inspection system,

we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We

think outside the box and are continually developing new products to meet customer requirements, what you are asking

for is our motive power of task, we wish one of our products will well-meet what you demand.
