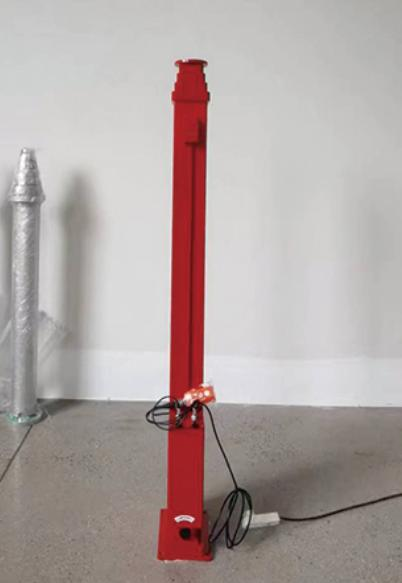

GDD-8MC50 Telescopic Electric Motor Mast Pole for Emergency Lighting Telecom Radio Communication

Negotiable MOQ: 100 Units (Price negotiable depending on order volume and customization)

Key Specifications

Location:

Shanghai, China

Shanghai Hesheng Safety Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

GDD Series Electric Lifting Mast (Hesheng Safety / GDD-8MC50) Technical Specifications

1. Core Structure & Materials

Material: High-strength aluminum alloy, ensuring lightweight durability and corrosion resistance for long-term outdoor use.
Design:

Max. Diameter: □147×147mm (square cross-section for enhanced stability).
Min. Diameter: □64×64mm.
Closed Height: 2000mm (compact for easy transport and storage).
Extended Height: 8000mm (ideal for mounting antennas, radars, PTZ cameras, and other equipment at elevated positions).
Tube Dimensions:
Sections: 5-stage telescopic structure for smooth height adjustment.

2. Performance Parameters

Max. Payload: ≤50kg (suitable for medium-weight equipment like antennas, lighting systems, or surveillance devices).
Self-Weight: ~78kg (balances portability and structural integrity).

Operation: Electric-powered with remote control (optional accessory).
Speed: Not specified, but electric drives offer precise, stable height adjustment.

Operating Temperature: -20°C to +55°C (customizable to -40°C for extreme cold climates).
Storage Temperature: -40°C to +75°C, ensuring longevity in harsh conditions.
Protection: Aluminum construction with sealed joints provides dust and water resistance (IP rating not specified but suitable for outdoor use).

3. Key Features

Closed/extended height, tube dimensions, and payload capacity can be tailored to specific requirements.

Remote Control: Enables wireless operation for convenience and safety.
Spring Cable: Manages internal wiring neatly, preventing tangling and improving aesthetics.

5-section telescopic design with square aluminum tubes ensures rigidity and wind resistance at full extension.

4. Typical Applications

Telecommunications: Elevates antennas for improved signal coverage in mobile base stations or emergency communication vehicles.
Security & Surveillance: Supports PTZ cameras for high-altitude monitoring in border patrols, event security, or traffic management.
Meteorology: Mounts weather instruments (e.g., anemometers, rain gauges) for accurate data collection.
Disaster Response: Rapidly deploys lighting or communication equipment in emergency scenarios.

5. Technical Advantages

High Strength & Lightweight: Aluminum alloy construction optimizes durability and portability.
Extreme Temperature Tolerance: Customizable for operations in Arctic or desert environments.
Flexible Customization: Adaptable to diverse use cases with adjustable specifications.
Electric Lifting Efficiency: Remote-controlled operation simplifies deployment and enhances safety.

Ideal for professionals seeking a reliable, customizable electric lifting mast for elevated equipment installation in demanding environments.
