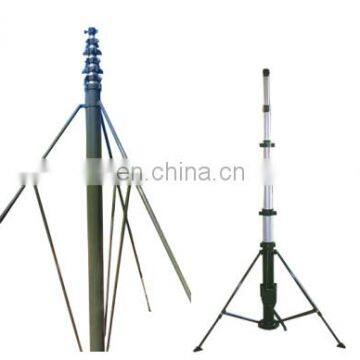

6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole

6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole thumbnail-1
6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole thumbnail-2
6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole thumbnail-3
6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole thumbnail-4
6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole thumbnail-5
6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole thumbnail-6
6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole thumbnail-7
6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole photo-1
6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole photo-2
6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole photo-3
6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole photo-4
6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole photo-5
6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole photo-6
6m Air Mast Pneumatic Mast Antenna Telescopic Mast Pole photo-7
US$ 513.55 - 513.55 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
talents
Place of Origin:
Tianjin, China
Model Number:
TAL-P6-1.9-30
Contact Supplier Request Quote Chat Now
Dingzhou City Great Wall Daily Chemical Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name talents
Place of Origin Tianjin, China
Model Number TAL-P6-1.9-30
Product Description

What is a Pneumatic Mast?

           Pneumatic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion

of air- more appropriate for short time using.

Common application

Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.

Mast specification

Available Extended height:2m to 30m
Head load capacity:5kg to 300kg.


Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.

If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.

Specification
                                                          6m air mast pneumatic mast antenna telescopic mast pole
Model No.
TAL-P6.0-1.9-30
Material
aluminum alloy
surface treatment
Hard anodizing
Color
Bronze
Extended height
6.0m
Retracted height
1.9m
Max head load
30kg
Sections
Number
74sections
each section tube OD& thickness
1#  82/3.5mm  2#  66/3.0mm    3#  51/3.0mm
4#   36/3.0mm
Mast net weight
85kg( without  accessories)
Max wind load
100km/h ( with guy wire fixed)
top flange
100mm/8.5mm (diameter/thickness)
bottom base
190mm/18mm(diameter/thickness)
accessories
air hose/air compressor/tripod/guy wire/ steel stakes
Detail

Operation steps

1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..

Packing & Delivery
Package information based on different specifitation
extended height less than 9m
also weight less than 70kg
packed into a  carton, inner space filled with foam to protect mast.
 wooden case if customer request.
extended height more than 9m
also weight more than 70kg
packed into plywood case, inner space filled with foam to protect mast.
Operation precaution

No overloading.
Ensure the area in which the mast is deployed is free of obstructions and overhead power lines.
Any abnormal phenomena( such as inflexible or stuck) occurs when lifting, you should stop it immediately, identify the reasons, and lift it after cleaning troubles.
Note: if special request, please confirm with our technician.

Other Specification
Pneumatic telescopic mast
MODEL No.
Extended
Height
(m)
Retracted
Height
(m)
Bottom
OD
(mm)
TOP
OD
(mm)
Section
NO.
Head-load
(KG)
TAL-2.0-1.3-150-AT8
2
1.3
118
98
2
150
TAL-3.0-1.5-50-AT8
3
1.5
98
66
3
50
TAL-4.0-1.3-20-AT8
4
1.3
87
43
4
20
TAL-4.5-1.65-50-AT9
4.5
1.65
118
66
4
50
TAL-5.0-1.7-40-AT8
5
1.7
98
51
4
40
TAL-5.0-1.75-30-AT9
5
1.75
98
51
4
30
TAL-6.0-1.7-30-AT8
6
1.7
118
51
5
30
TAL-6.0-1.75-12-AT8
6
1.75
87
28
5
12
TAL-6.0-2.0-50-AT9
6
2
118
66
4
50
TAL-6.0-1.95-30-AT8
6
1.95
87
43
4
30
TAL-6.0-1.5-25-AT9
6
1.5
118
51
5
25
TAL-7.0-1.95-40-AT8
7
1.95
118
51
5
40
TAL-8.0-1.8-50-AT9
8
1.8
160
51
7
50
TAL-8.0-2.2-60-AT7
8
2.2
140
66
5
60
TAL-8.0-2.0-25-AT8
8
2
118
36
6
25
TAL-9.0-2.15-30-AT8
9
2.15
140
51
6
30
TAL-10.0-2.4-30-AT7
10
2.4
140
51
6
30
TAL-12.0-2.7-250-AT8
12
2.7
279
140
7
250
TAL-15.0-3.5-150-AT9
15
3.5
229
98
6
150
TAL-16.0-3.0-30-AT8
16
3
180
51
8
30
TAL-18.0-3.0-100-AT8
18
3
279
66
10
100
TAL-20.0-3.3-55-AT8
20
3.3
229
66
9
55
TAL-30.0-4.0-30-AT8
30
4
316
51
13
30

NOTE:

above specification does not include all we can do.

Our Company
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. We are serving our long-term customers from the five Continents and the four Oceans.

Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers an one for one timely information feedback, we have organized an expert team for quality control and inspection system and have Multi-way fast delivery channels, we are supplying one year free after-sale warranty to the buyer. We think outside the box and are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
