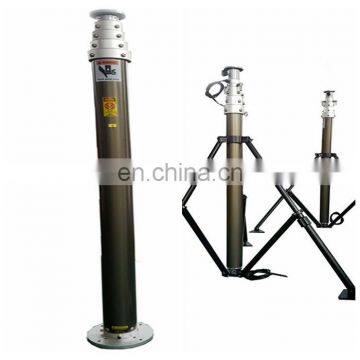

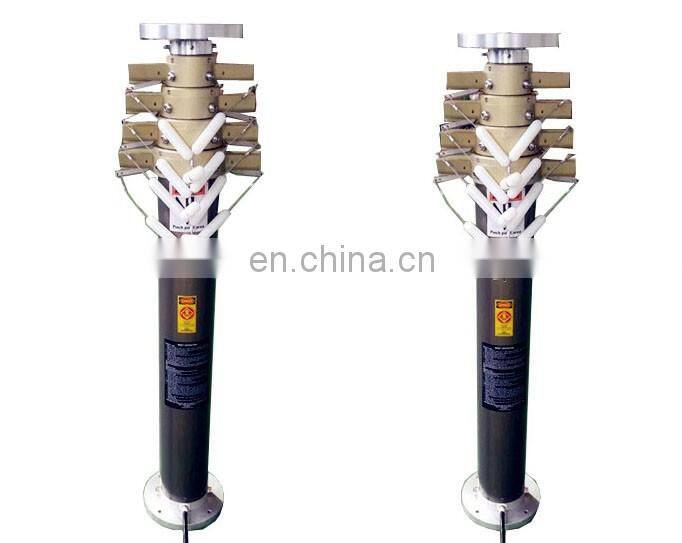

20ft Pneumatic Telescopic Mast Evaluation Lifting Rising Tower Heavy Payload Mast

20ft Pneumatic Telescopic Mast Evaluation Lifting Rising Tower Heavy Payload Mast thumbnail-1
20ft Pneumatic Telescopic Mast Evaluation Lifting Rising Tower Heavy Payload Mast thumbnail-2
20ft Pneumatic Telescopic Mast Evaluation Lifting Rising Tower Heavy Payload Mast thumbnail-3
20ft Pneumatic Telescopic Mast Evaluation Lifting Rising Tower Heavy Payload Mast photo-1
20ft Pneumatic Telescopic Mast Evaluation Lifting Rising Tower Heavy Payload Mast photo-2
20ft Pneumatic Telescopic Mast Evaluation Lifting Rising Tower Heavy Payload Mast photo-3
US$ 595.72 - 595.72 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
talents
Place of Origin:
Tianjin, China
After-sales Service Provided:
Video technical support
Contact Supplier Request Quote Chat Now
Dingzhou City Great Wall Daily Chemical Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name talents
Place of Origin Tianjin, China
Warranty 1 Year
Power 220V 400W
Min. Lifting Height 1.9m
Lift Drive / Actuation Air / Pneumatic
Lift Mechanism Telescoping Lift
Product Description

What is a Pneumatic Mast?

           Pneumatic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion

of air- more appropriate for short time using.

Classification of masts

Model"AT8"---no cable and no lock, for Short time using and small head load.
Model"AT9"---with lock. for long time using and large head load.
Model"AT7"---with cable. for mounting camera, lights or antenna.

Common application

Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.

Mast specification

Available Extended height:2m to 30m
Head load capacity:5kg to 300kg.


Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.

If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.

Spcs info
                                    20ft pneumatic telescopic mast evaluation lifting rising tower heavy payload mast
Model No.
TAL-P6-1.9-30
Material
aluminum alloy
surface treatment
Hard anodizing
Color
Bronze
Extended height
6.0m
Retracted height
1.9m
Max head load
30kg
Sections
Number
4 sections
each section tube OD& thickness
1#  82/3.5mm   2#  66/3.0mm    3#  51/3.0mm
4#   36/3.0mm
Mast net weight
30kg( without  accessories)
Max wind load
100km/h ( with guy wire fixed)
top flange
80mm/8.5mm (diameter/thickness)
bottom base
130mm/11mm(diameter/thickness)
accessories
air hose/air compressor(AC220V,110V,DC12V,24V)
control value
ground anchor/guy wire/ steel stakes
top plate/bottom base
tripod
else accessories are also available added
Detail

  20ft pneumatic telescopic mast evaluation lifting rising tower heavy payload mast

Mast material is aluminum alloy 6063-T5

Tube surface treatment is Hard anodizing

Color:Bronze and origin silver color for choose.

Acessories for  20ft pneumatic telescopic mast evaluation lifting rising tower heavy payload mast.

Operation steps

1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..

Packing & Delivery
Package information based on different specifitation
extended height less than 9m
also weight less than 70kg
packed into a  carton, inner space filled with foam to protect mast.
 wooden case if customer request.
extended height more than 9m
also weight more than 70kg
packed into plywood case, inner space filled with foam to protect mast.
Operation precaution

No overloading.
Ensure the area in which the mast is deployed is free of obstructions and overhead power lines.

For pneumatic mast:DO NOT remove any of the exhaust valves in an attempt to retract the mast quicker, this action removes control over the rate of decent.
Any abnormal phenomena( such as inflexible or stuck) occurs when lifting, you should stop it immediately, identify the reasons, and lift it after cleaning troubles.
Note: if special request, please confirm with our technician.

Other Specification
Pneumatic telescopic mast
MODEL No.
Extended
Height
(m)
Retracted
Height
(m)
Bottom
OD
(mm)
TOP
OD
(mm)
Section
NO.
Head-load
(KG)
TAL-2.0-1.3-150-AT8
2
1.3
118
98
2
150
TAL-3.0-1.5-50-AT8
3
1.5
98
66
3
50
TAL-4.0-1.3-20-AT8
4
1.3
87
43
4
20
TAL-4.5-1.65-50-AT9
4.5
1.65
118
66
4
50
TAL-5.0-1.7-40-AT8
5
1.7
98
51
4
40
TAL-5.0-1.75-30-AT9
5
1.75
98
51
4
30
TAL-6.0-1.7-30-AT8
6
1.7
118
51
5
30
TAL-6.0-1.75-12-AT8
6
1.75
87
28
5
12
TAL-6.0-2.0-50-AT9
6
2
118
66
4
50
TAL-6.0-1.95-30-AT8
6
1.95
87
43
4
30
TAL-6.0-1.5-25-AT9
6
1.5
118
51
5
25
TAL-7.0-1.95-40-AT8
7
1.95
118
51
5
40
TAL-8.0-1.8-50-AT9
8
1.8
160
51
7
50
TAL-8.0-2.2-60-AT7
8
2.2
140
66
5
60
TAL-8.0-2.0-25-AT8
8
2
118
36
6
25
TAL-9.0-2.15-30-AT8
9
2.15
140
51
6
30
TAL-10.0-2.4-30-AT7
10
2.4
140
51
6
30
TAL-12.0-2.7-250-AT8
12
2.7
279
140
7
250
TAL-15.0-3.5-150-AT9
15
3.5
229
98
6
150
TAL-16.0-3.0-30-AT8
16
3
180
51
8
30
TAL-18.0-3.0-100-AT8
18
3
279
66
10
100
TAL-20.0-3.3-55-AT8
20
3.3
229
66
9
55
TAL-30.0-4.0-30-AT8
30
4
316
51
13
30

NOTE:

above specification does not include all we can do.
