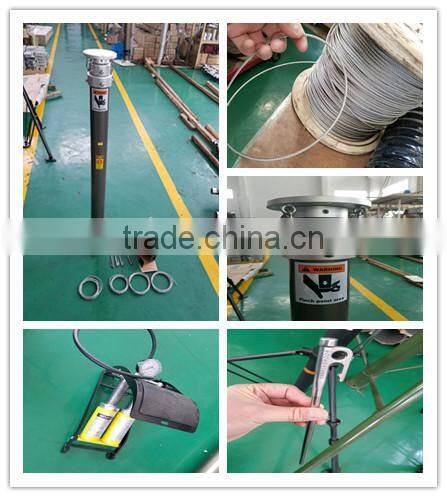

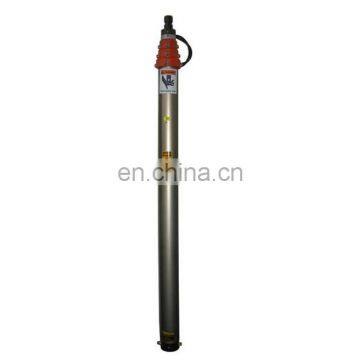

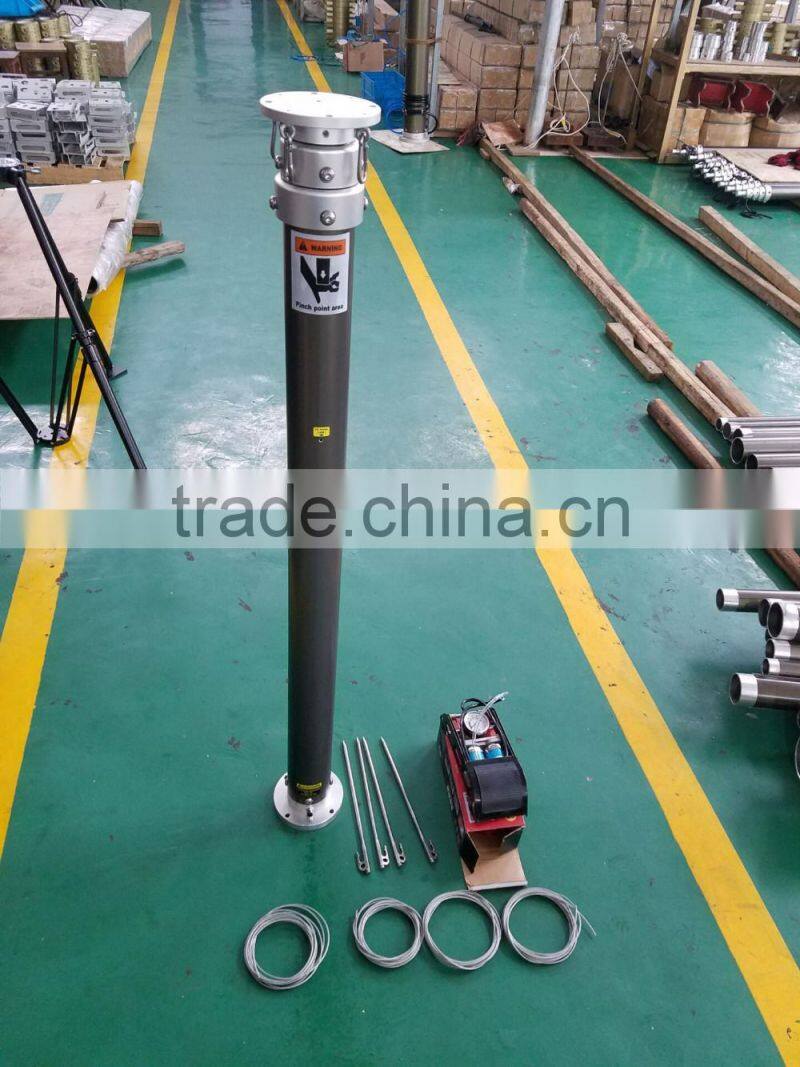

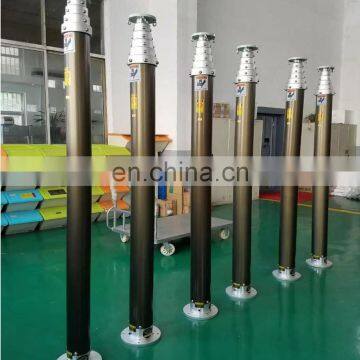

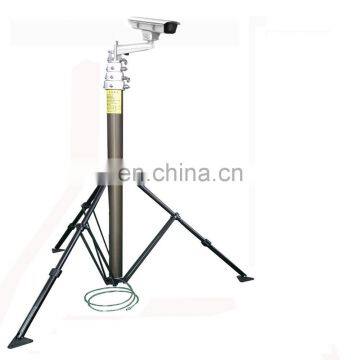

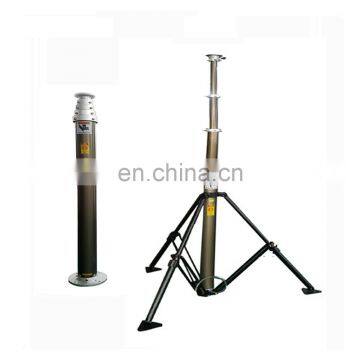

30kg Headload Telescoping Antenna Mast

What is a Pneumatic Mast?

           Pneumatic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion

of air- more appropriate for short time using.

Classification of masts

Model"AT8"---no cable and no lock, for Short time using and small head load.
Model"AT9"---with lock. for long time using and large head load.
Model"AT7"---with cable. for mounting camera, lights or antenna.

Common application

Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.

Mast specification

Available Extended height:2m to 30m
Head load capacity:5kg to 300kg.

Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.

If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.

Application on 30kg headload telescoping antenna mast

1.Lighting equipment,

2.antenna equipment,

munication shelter,

4.security monitoring equipment and etc.

Main Features

1)Simple structure,
2)Craftsmanship,
3)High security,
4)Reliability,
5)preservative,
6)No noise,
7)No pollution,
8)Easy to maintain.

FLANGE

material: aluminum

color treatment:silver by Anodizing

size: diameter 150mm, thickness 12mm

Note:it is just common design. if you have specifical

           application,let me know it, fittable accessories will

           made to meet your requet.

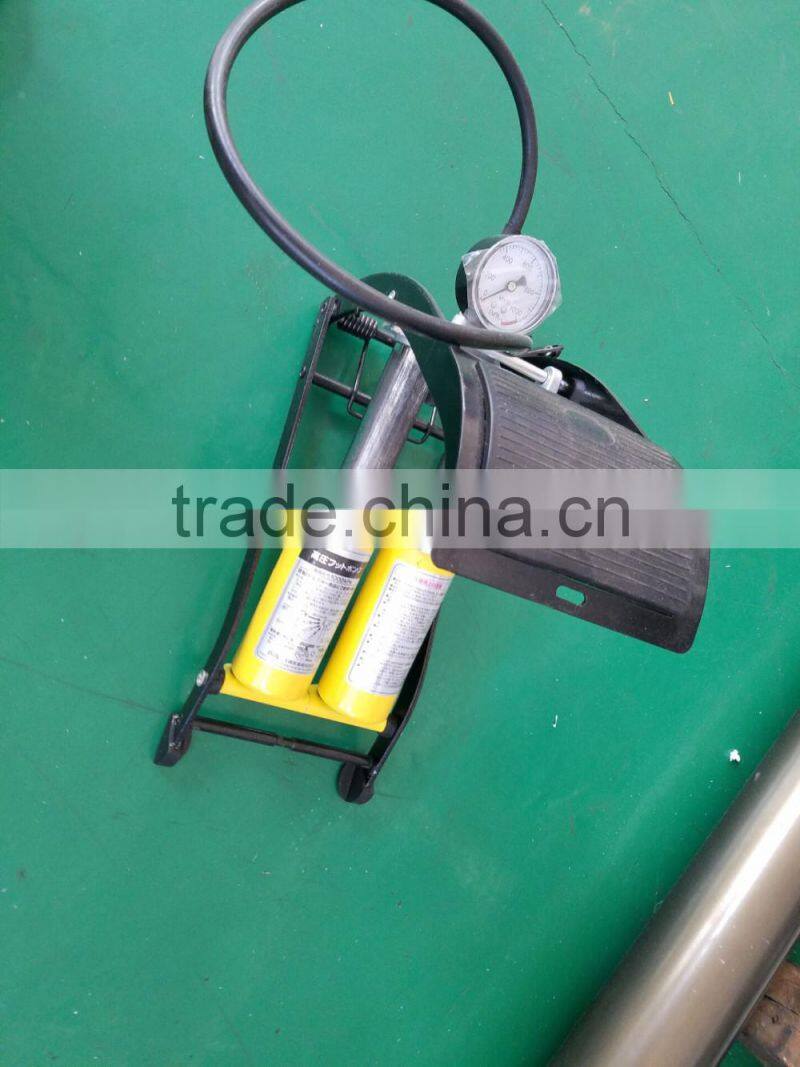

FOOT PUMP

Material: Steel body part+ABS pedal
Color:: yellow+balck or blue+balck
Extended size: 35*30*15cm
Note:this foot pump could be inteaded by air compressor

           if you want. but usually decided by the height and

          loading weight.

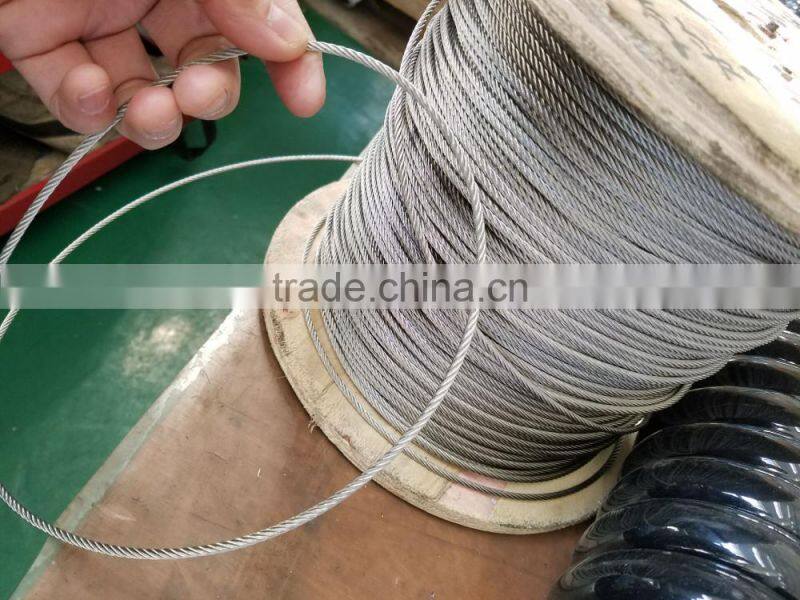

Material: stainless steel 304
Size: diameter 2mm, length 5.0m
Note:if you want to get the tripod stand to fixed mast

           and move easily, we can provide, just as your request.

AIR INLET CONNECTOR

Material: copper
Size: 1/4''-8, which is international general standard

NOTE:

above specification does not include all we can do.
