4.5m Lighting Telescopic Telescopic Mast Portable by Air Pump Hand Pump

Name: 4.5m Lighting Telescopic Telescopic Mast Portable by Air Pump Hand Pump
Brand: talents
Availability: InStock

FOB Price

US$ 427.96 - 427.96

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	talents		Place of Origin	Tianjin, China
Model Number	tal-p4.5--1.5-30

Product Description

What is a Pneumatic Mast?

Pneumatic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion

of air- more appropriate for short time using.

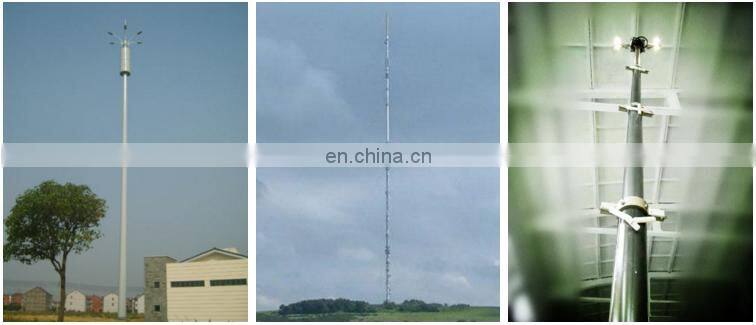

Common application

Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.

Mast specification

Available Extended height:2m to 30m
Head load capacity:5kg to 300kg.

Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.

If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.

Specification

4.5m lighting telescopic telescopic mast portable by air pump hand pump
Model No.	TAL-P4.5-1.5-30
Material	aluminum alloy
surface treatment	Hard anodizing
Color	Bronze
Extended height	4.5m
Retracted height	1.5m
Max head load	30kg
Sections Number	7 sections each section tube OD& thickness 1# 82/3.5mm 2# 66/3.0mm 3# 51/3.0mm 4# 36/3.0mm
Mast net weight	25kg( without accessories)
Max wind load	100km/h ( with guy wire fixed)
top flange	80mm/8.5mm (diameter/thickness)
bottom base	130mm/11mm(diameter/thickness)
accessories	air hose/air compressor/guy wire/ steel stakes

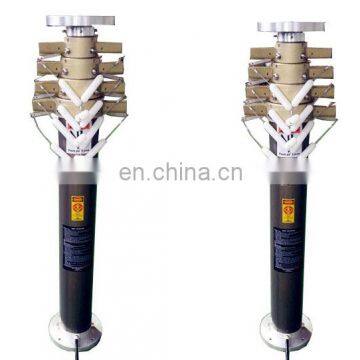

Detail

4.5m lighting telescopic telescopic mast portable by air pump hand pump

Acessories

Operation steps

1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..

Packing & Delivery

Package information based on different specifitation
extended height less than 9m also weight less than 70kg	packed into a carton, inner space filled with foam to protect mast. wooden case if customer request.
extended height more than 9m also weight more than 70kg	packed into plywood case, inner space filled with foam to protect mast.

Operation precaution

No overloading.
Ensure the area in which the mast is deployed is free of obstructions and overhead power lines.

For pneumatic mast:DO NOT remove any of the exhaust valves in an attempt to retract the mast quicker, this action removes control over the rate of decent.
Any abnormal phenomena( such as inflexible or stuck) occurs when lifting, you should stop it immediately, identify the reasons, and lift it after cleaning troubles.
Note: if special request, please confirm with our technician.

Other Specification

Pneumatic telescopic mast
MODEL No.	Extended Height (m)	Retracted Height (m)	Bottom OD (mm)	TOP OD (mm)	Section NO.	Head-load (KG)
TAL-2.0-1.3-150-AT8	2	1.3	118	98	2	150
TAL-3.0-1.5-50-AT8	3	1.5	98	66	3	50
TAL-4.0-1.3-20-AT8	4	1.3	87	43	4	20
TAL-4.5-1.65-50-AT9	4.5	1.65	118	66	4	50
TAL-5.0-1.7-40-AT8	5	1.7	98	51	4	40
TAL-5.0-1.75-30-AT9	5	1.75	98	51	4	30
TAL-6.0-1.7-30-AT8	6	1.7	118	51	5	30
TAL-6.0-1.75-12-AT8	6	1.75	87	28	5	12
TAL-6.0-2.0-50-AT9	6	2	118	66	4	50
TAL-6.0-1.95-30-AT8	6	1.95	87	43	4	30
TAL-6.0-1.5-25-AT9	6	1.5	118	51	5	25
TAL-7.0-1.95-40-AT8	7	1.95	118	51	5	40
TAL-8.0-1.8-50-AT9	8	1.8	160	51	7	50
TAL-8.0-2.2-60-AT7	8	2.2	140	66	5	60
TAL-8.0-2.0-25-AT8	8	2	118	36	6	25
TAL-9.0-2.15-30-AT8	9	2.15	140	51	6	30
TAL-10.0-2.4-30-AT7	10	2.4	140	51	6	30
TAL-12.0-2.7-250-AT8	12	2.7	279	140	7	250
TAL-15.0-3.5-150-AT9	15	3.5	229	98	6	150
TAL-16.0-3.0-30-AT8	16	3	180	51	8	30
TAL-18.0-3.0-100-AT8	18	3	279	66	10	100
TAL-20.0-3.3-55-AT8	20	3.3	229	66	9	55
TAL-30.0-4.0-30-AT8	30	4	316	51	13	30

NOTE:

above specification does not include all we can do.
