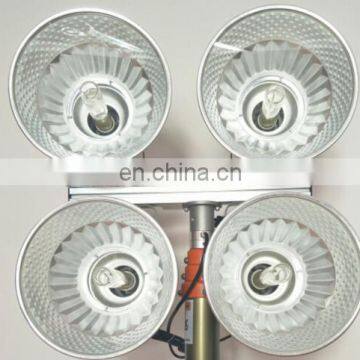

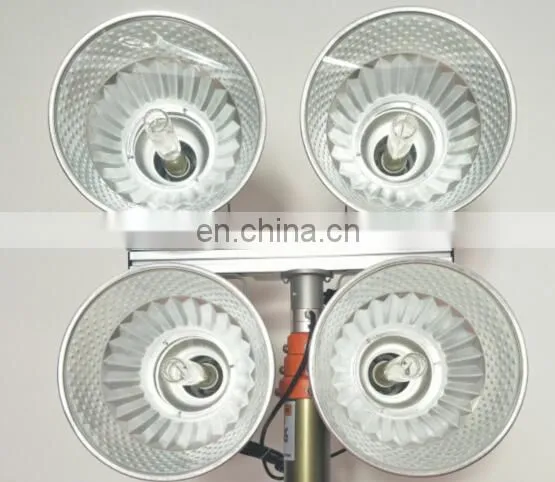

Electric and Manual Mobile Light Tower Mast 35m

Name: Electric and Manual Mobile Light Tower Mast 35m
Brand: Talents
Availability: InStock

FOB Price

US$ 5,800 - 6,000 / Unit

1 Unit(Min. Order)

Port China main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents		Place of Origin	Tianjin, China
Model Number	TAL-E35-4-30

Product Description

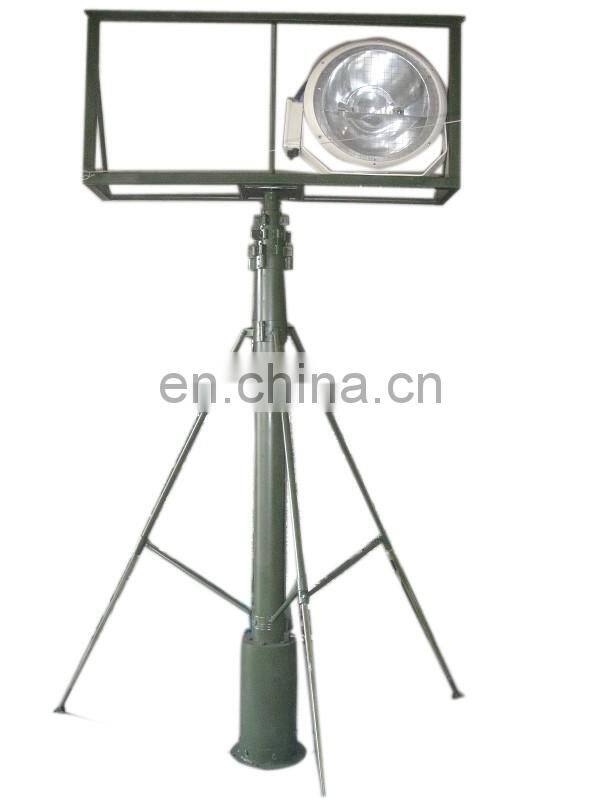

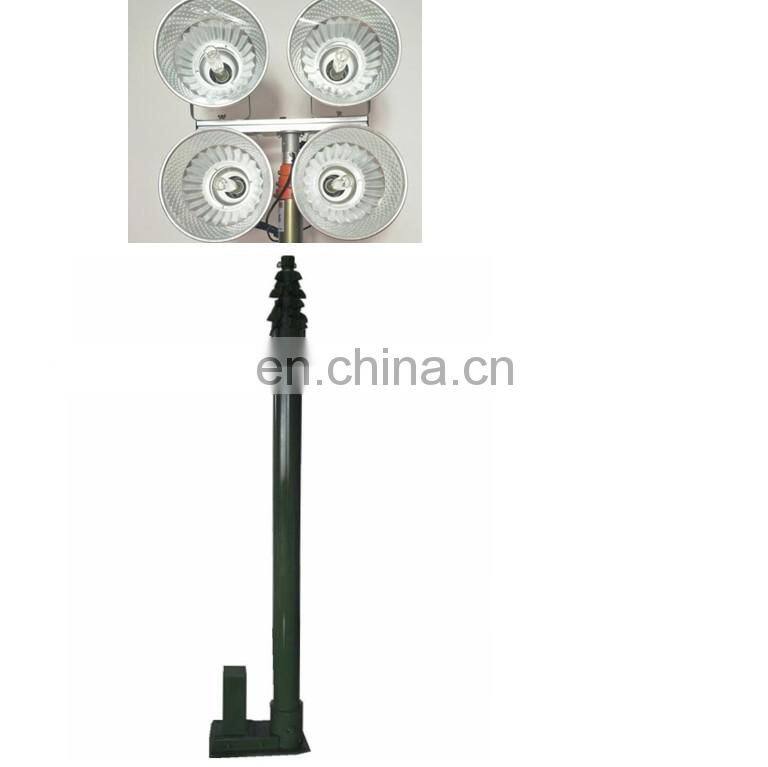

electric and manual mobile light tower mast 35m

technical data
main spec.	Closed length:4m (Bottom base included) Extended length: 35m (Bottom base included) Max loading:30kg Temperature: working temp:-40--+50C Storage Temp:-55--+70C
main pole in sections	40-200mm
Bottom base	lengthwidth:450210mm Thickness: 10mm
Accessories	Motor: (AC220v 300w)---------------------------------1 piece Handle lifting bar----------------------------------------1 piece Electrical equipment control box---------------------1 unit Remote-controller----------------------------------------2 pieces
Material	Main Pole: aluminum alloy Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm)
Color	the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting

Detailed Images

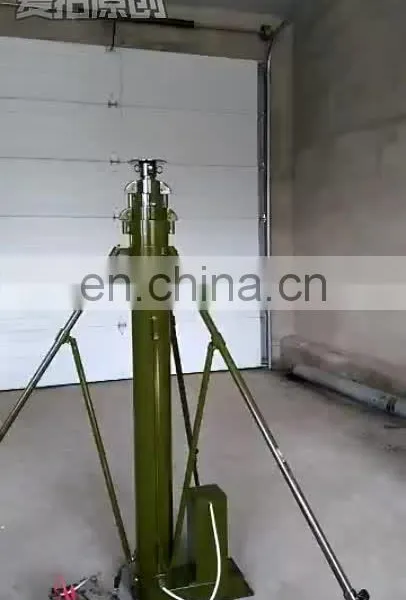

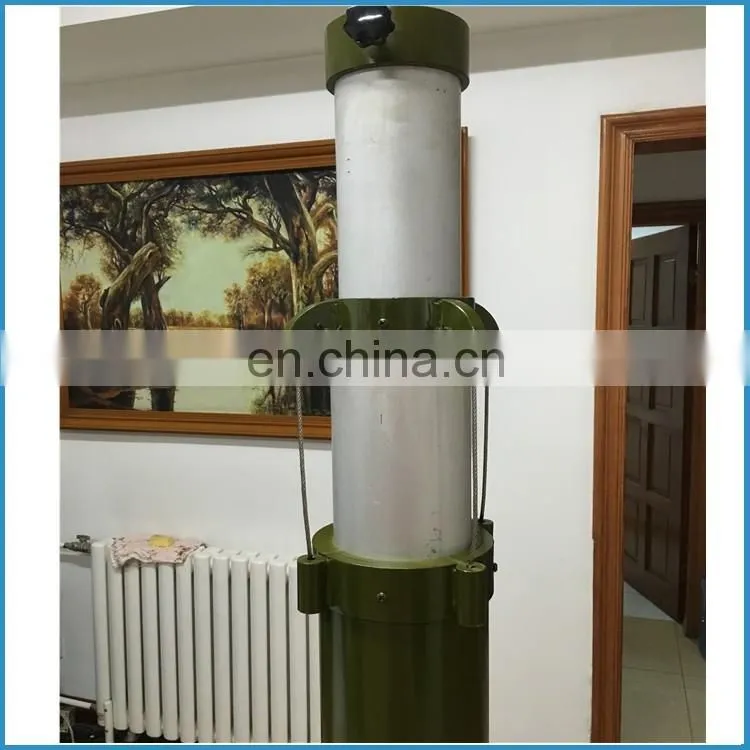

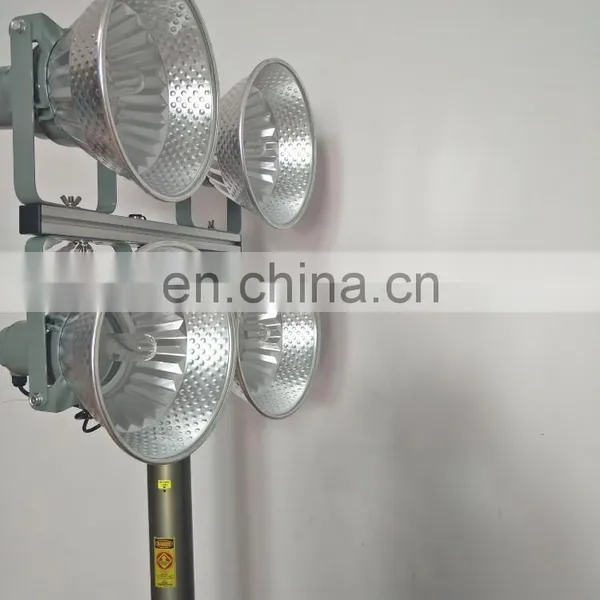

electric and manual mobile light tower mast 35m

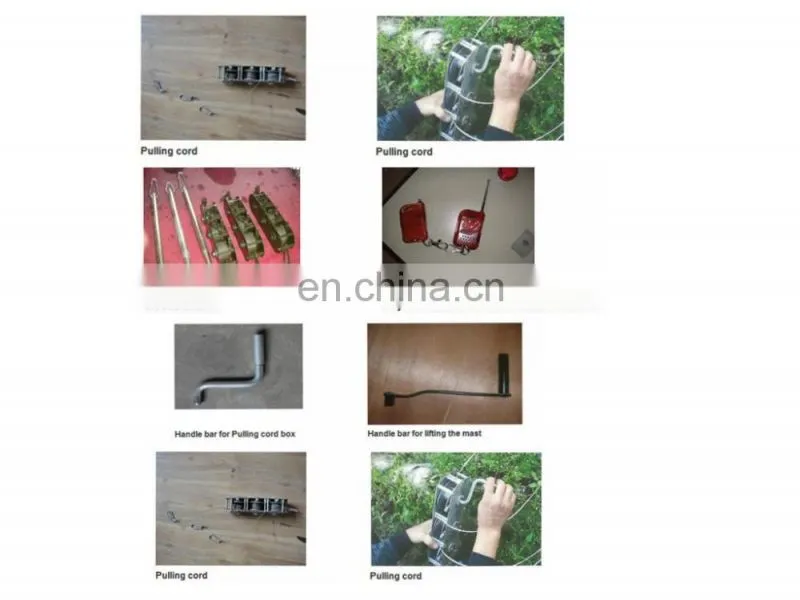

accessories

model	unit
pulling cord box	3 units
ground anchor	3 units
handle bar	1 unit
tripod or car clamp	1 unit
top plate	1 unit

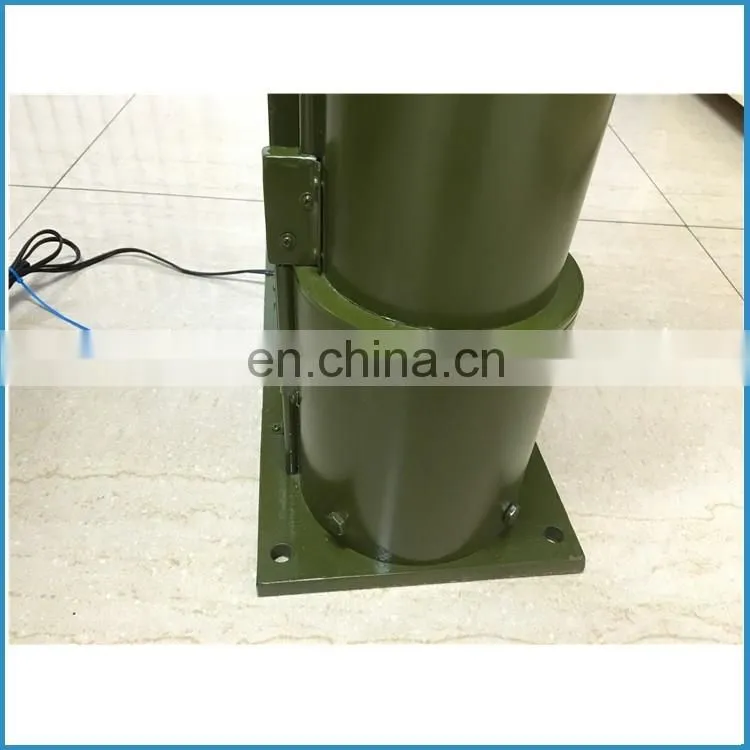

bottom base	1 unit
control box	1 unit

Packing & Delivery

electric mobile light tower mast 35m

Packing details
C/NO.	DESCRIPTION	QTY (UNIT)	N.W. (KG)	G.W. (KG)	MEAS (CM)
1	Pole : --------------------------1 unit Handle lifting bar----------1 pcs Electrical control box-----1 unit Remote-controller---------2 pcs	1	210	250	4206550

Workshop

After-sale service

Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.

Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.

it’s better mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after
using 10 thousand times.

Our Service

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade motorized mast as follows-

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	self weight (kg)
4	3	1.6	60-80	34
5	4	1.65	50-80	38
6	5	1.7	50-90	42
8	6	1.8	40-90	54
10	7	1.95	30-90	58
12	7	2.2	30-90	65
15	8	2.45	30-105	78
18	9	2.7	30-130	102
20	9	2.95	30-130	110
22	9	3.15	30-130	130
25	10	3.4	30-150	154
30	10	3.85	30-150	170

Welcome to contact

contact person: Ms.Grace Wang

Talents Enterprise Company Limited

T: 86 22 28376666 | F: 86 22 28376667 |
Skype:talents106

whatsapp:0086 18222428293
