4m Motorized Telecommunication Mast

FOB Price

US$ 1,075 - 1,175 / Unit

1 Unit(Min. Order)

Port Beijing airport China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	talents motorized mast		Place of Origin	Tianjin, China
Model Number	TAL-4-1.55-10

Product Description

4m motorized telecommunication mast

Specifications of motorized telecommunication mast
Closed length	1.55m
extended length	4.0m
max head load	10kg
max diameter	80mm
section number	4
temprature	working temp:-40--+50C Storage Temp:-55--+70C
Color	army green
Wind load:	working rate:25m/s Max rate:35m/s
accessories	Motor: (230V)----------------------------------------------1 piece Pulling cord box with handle bars-----------------3 units Ground anchor---------------------------------------------3 pieces Handle lifting bar------------------------------------------1 piece Remote-controller-----------------------------------------2 pieces Tripod----------------------------------------------------------1 unit
Application	The 4m motorized telecommunication mast wall mounted is suitable for car,ship or land.It can help light transmission and camera and other equipment rise to a predetermined height and drop to a predetermined height after its work. Our company's products are also widely used in golf, soccer stadium lighting at night.

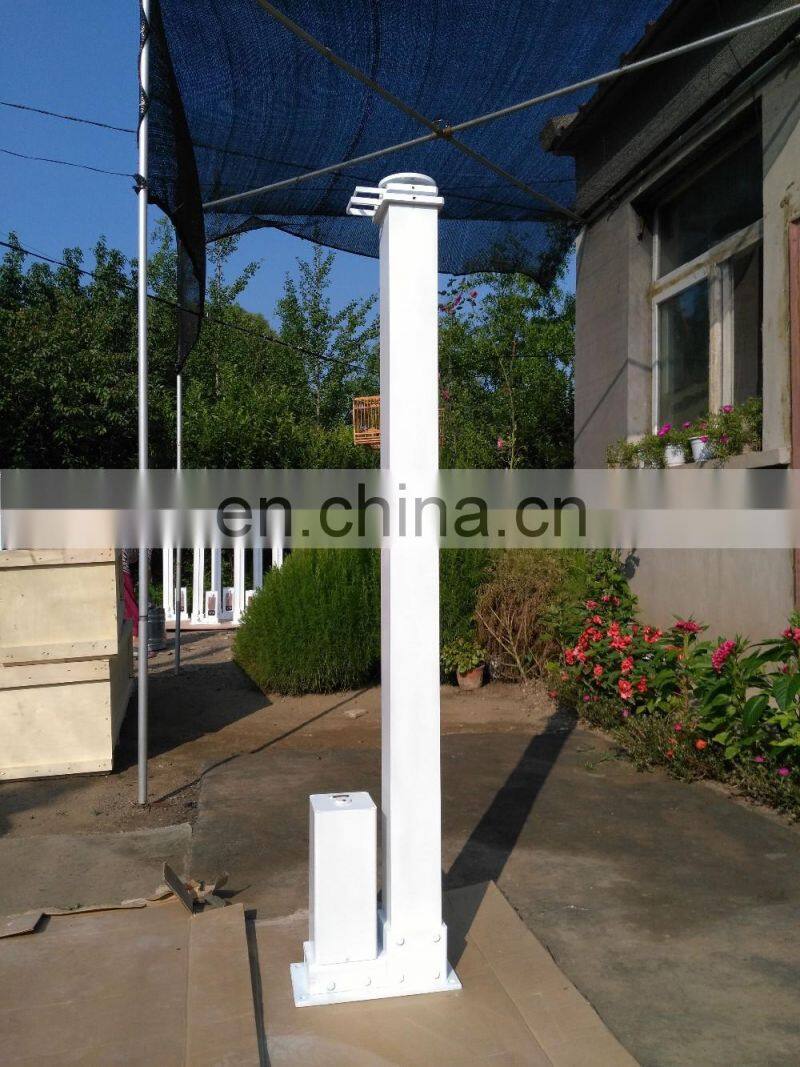

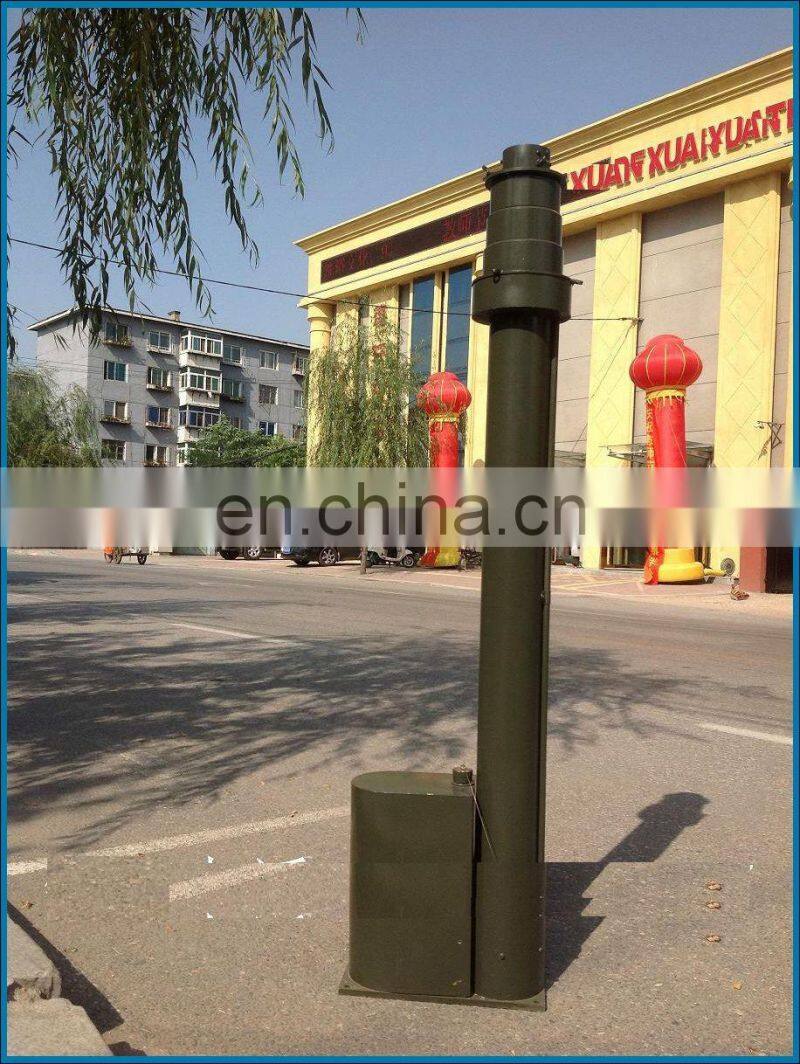

Product picture

4m motorized telecommunication mast

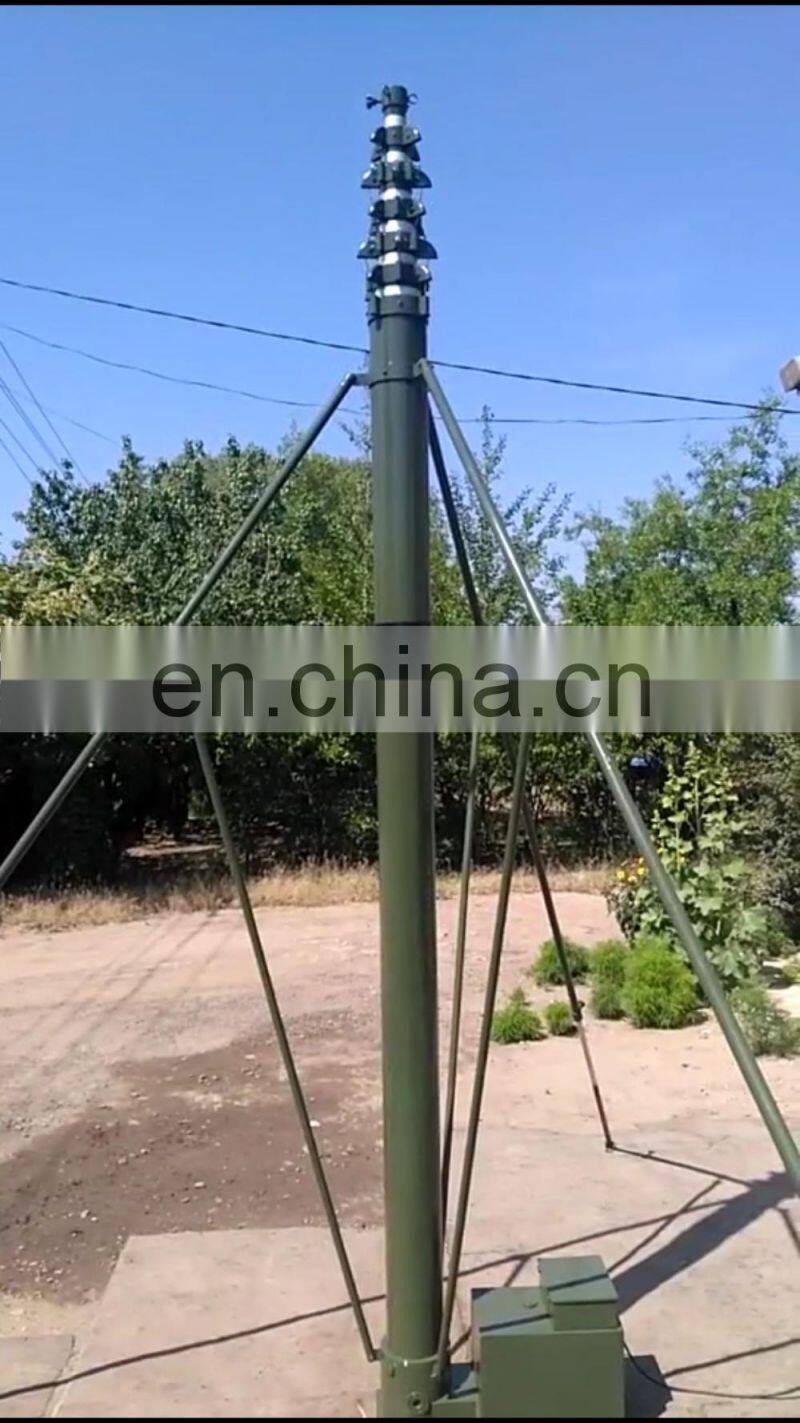

Accessories example

4m motorized telecommunication mast

Packing & Delivery

package
plywood packed	one set mast with accessories wrapped by polyester tapes, then packed into a plywood case

Catalog

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade motorized mast as follows

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	self weight (kg)
4	3	1.6	60-80	34
5	4	1.65	50-80	38
6	5	1.7	50-90	42
8	6	1.8	40-90	54
10	7	1.95	30-90	58
12	7	2.2	30-90	65
15	8	2.45	30-105	78
18	9	2.7	30-130	102
20	9	2.95	30-130	110
22	9	3.15	30-130	130
25	10	3.4	30-150	154
30	10	3.85	30-150	170

Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.

Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans

Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers

an one for one timely information feedback, we have organized an expert team for quality control and inspection system,

we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We

think outside the box and are continually developing new products to meet customer requirements, what you are asking

for is our motive power of task, we wish one of our products will well-meet what you demand.
