10m Monitoring Electrical Pole Telescopic Mast Pole

FOB Price

US$ 1,000 - 2,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents electrical pole		Place of Origin	Tianjin, China
Model Number	TAL-M-010

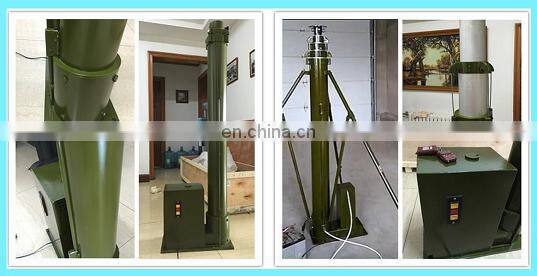

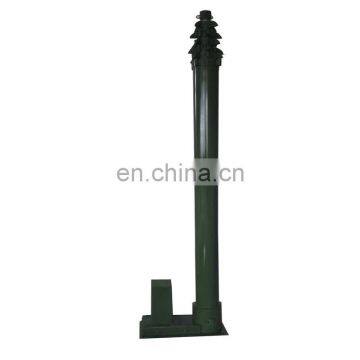

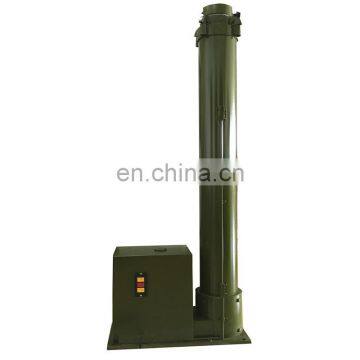

10m monitoring electrical pole telescopic mast pole

Specification list

Article number:	01TAL-M12-2.2-35
Max top payload:	35kgs
Closed length:	12000mm
Extended length:	2200mm
Main poles' sections:	8 sections
sec.1#-8#(OD//thickness mm):	40/2,50/2,60/2,70/2,80/2,90/2,105/2.5/130/4
Bottom base size (L/W/thickness):	450/210/10mm
Top plate size (dia./thickness):	130mm/10mm
Working temperature:	-40--+50C
Mortor power:	AC220v/300w
Wind load:	80km/h
Pulling cord's OD:	2mm
Material for main pole:	aluminum alloy 6063B
Material for bottom base:	iron steel
Material for accessories:	iron steel
Material for pulling cord:	stainless steel
Material for other asscessaires	iron steel

Packing list:

Mian pole in 8 sections:	1 set
Mortor(AC220v/300w):	1 set
Handle lifting bar:	1 piece
Electrical equipment control box:	1 set
Remote controller:	2 pieces
Bottom base:	1 piece
top plate:	1 piece
Pulling cord box with handle bars:	3 sets
Ground anchor:	3 pieces
tripod	1 set
Surface color Technology:	Painting in army green, the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of the aluminum alloy only with top 4cm of each section in army green color.
Packing method:	the main pole and the accessories are wrapped with foamed membrane and then to be packed into a polywood case

electric powered telescopic camera pole mast motorised pole

1. The monitor telescopic mast rod made of aluminum alloy or stainless steel tube.

2. It can help lamplight, camera, Antenna, mobile and military, emergency, illumination,

photography, meteorological measurement equipments rise and drop to a certain

height after its work.

3. It can be mounted on the vehicle or stand on the ground with tripod.

4. It has manual, motorized and pneumatic lifting method, the extended length up to 35m

and closed length to 1.3m.

5. The top payload up to 400kgs, wind load: 80 km/h., working temperature: -15--+60℃.

Except the motorized lifting telescopic mast, we still have manula lifting and pneumatic lifting

telescopic masts available for supply.

Welcome to contact us

Contact person: Cindy Wang

Tel: +86 22 2837 6666

WhatsApp: +86 15620616406

Skype: talents106

Wechat: wwl1021681517
