15m Motorized Fast Extended Telescoping Pole Mobile Tower in White

FOB Price

US$ 3,800 - 3,800 / Unit

2 Units(Min. Order)

Port Xingang
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents telescoping mobile tower		Place of Origin	Tianjin, China
Model Number	11TAL-M15-2.55-15 telescoping mobile tower

Product Description

15m motorized fast extended telescoping pole mobile tower in white

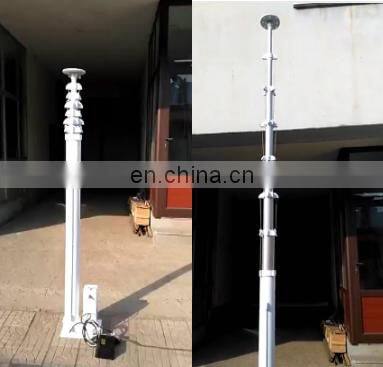

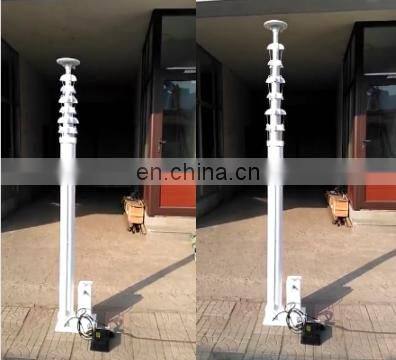

Product Photo

Product Description

15m motorized fast extended telescoping pole mobile tower in white

Basic specifications

Product name	15m motorized fast extended telescoping pole mobile tower in white
Closed length	2.55m (Bottom base included)
Extended length	15.0m (Bottom base included)
Max.payload	15 kgs
Lifting method	motorized lifting
OD	30-105mm
Material	aluminum alloy
Section	8

Detailed information

(1) Main pole in 8 sections:

Section No. OD Thickness Length

1# 30mm 2.0mm 2.3mm

2# 40mm 2.0mm 2.3mm

3# 50mm 2.0mm 2.3mm

4# 60mm 2.0mm 2.3mm

5# 70mm 2.0mm 2.3mm

6# 80mm 2.0mm 2.3mm

7# 90mm 2.0mm 2.3mm

8# 105mm 2.5mm 2.3mm

(2) Other parts of the mast body

Top plate Thickness: 8 mm Diameter:180 mm Screw:4pcs of dia.10mm

Bottom base(include motor): size:220*550mm

(3)Accessories

Motor: (AC220V 550W)------------------------------- 1 set

Pulling cord box with handle bars-------------------3 units

Ground anchor------------------------------------------- 3 pieces

Handle lifting bar---------------------------------------- 1 piece

Remote-controller --------------------------------------2 pieces

Tripod-------------------------------------------------------1 unit

Material:

Main Pole: aluminum alloy

Bottom base and accessories (except the ground anchor): iron steel

Ground anchor:galv stainless steel

Pulling cord: stainless steel wire(OD:2mm)

Color: the whole unit will be in white when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.

Color Technology: painting

4.Handle lifting bar for lifting the mast

5. Handle bar for Pulling cord box

Packaging & Shipping

One unit of telescoping mobile tower to be wrapped with Poly tapes then to be packed into a plywood case

Specification table of masts

No.	Model	Closed Length	Extended Length	OD	Section	Payload
002	TAL-2M-30	1.0m	2m	40mm~60mm	3	30kg
002	TAL-2M-30	0.75m	2m	40mm~90mm	6	20kg
002	TAL-2M-100	1.2m	2m	105mm~130mm	2	100kg
003	TAL-3M-250	1.75m	3m	90mm~130mm	3	250kg
004	TAL-4M-250	1.8m	4m	90mm~130mm	3	250kg
004	TAL-4M-10	1.55m	4m	40mm~80mm	4	10kg
004	TAL-4M-50	1.2m	4m	60mm~130mm	6	50kg
005	TAL-5M-150	1.4m	5m	60mm~160mm	6	150kg
005	TAL-5M-600	1.6m	5m	60mm~150mm	5	600kg
006	TAL-6M-10	1.7m	6m	40mm~90mm	6	10kg
006	TAL-6M-50	1.7m	6m	50mm~105mm	6	50kg
008	TAL-8M-30	2.2m	8m	40mm~105mm	6	30kg
010	TAL-10M-30	2.45m	10m	40mm~105mm	7	30kg
012	TAL-12M-200	2.45m	12m	70mm~160mm	7	200kg
012	TAL-12M-35	2.3m	12m	40mm~130mm	7	35kg
012	TAL-12M-100	2.7m	12m	50mm~130mm	7	100kg
012	TAL-12M-20	2.4m	12m	40mm~150mm	7	20kg
015	TAL-15M-20	2.8m	15m	40mm~105mm	7	20kg
015	TAL-15M-30	2.8m	15m	50mm~130mm	7	30kg
015	TAL-15M-300	2.7m	15m	60mm~155mm	7	300kg
020	TAL-20M-200	3.7m	20m	70mm~230mm	7	200kg
025	TAL-25M-80	3.4m	25m	60mm~230mm	10	80kg
025	TAL-25M-60	3.4m	25m	60mm~210mm	10	60kg
028	TAL-28M-15	3.7m	28.5m	30mm~130mm	10	15kg
035	TAL-35M-10	3.9m	35m	30mm~180mm	11	10kg

Workshop

15m motorized fast extended telescoping pole mobile tower in white

Installation

A. Fixed mode: achieved by tripod; vehicle mode: fixed by car clamps

B. The telescopic mast should be mounted on a flat and solid foundation. If the mast is tilted or tilted for a long time, its speed will be affected and it will cause damage to the mast itself.

C. The top load of mast should not exceed its conventional bearing so as not to tilt or damage the mast

D. Telescopic mast above 10m or less than 10m (including 10m) carrying more than 5kg must be fitted with pulling cords.

E. And the mast need be fitted with pulling cords when the wind speed exceeds 14m/s.

F. Method for erecting a mast with pulling cord (take a three layer pulling cord mounted on the ground as an example):

a. The telescopic mast should be vertically fixed on the horizontal base.

b. The position selection of ground anchors. The distance between ground anchor and the bottom center of mast is greater than 2/3 of the height of the mast, and nails shall be driven into ground every 120 degrees.
