12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology

12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology thumbnail-1
12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology thumbnail-2
12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology thumbnail-3
12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology thumbnail-4
12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology thumbnail-5
12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology thumbnail-6
12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology thumbnail-7
12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology photo-1
12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology photo-2
12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology photo-3
12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology photo-4
12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology photo-5
12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology photo-6
12m Self-supporting Electro Mechanical Telescopic Lifting Mast for Lighting and Metrology photo-7
US$ 1,000 - 1,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Talents
Place of Origin:
Tianjin, China
Model Number:
TAL-E12-2.2-50
Contact Supplier Request Quote Chat Now
Dingzhou City Great Wall Daily Chemical Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Talents
Place of Origin Tianjin, China
Model Number TAL-E12-2.2-50
About us

1. we develop and manufacture telescopic masts,

     material is aluminum allo or steel,for nearly unlimited

     applications, it's used in radio facilities,for monitoring and        illumination systems in public works and military

     installations, for radio amateurs, in metrology and other

    fields. In addition, we are able to offer special solutions for       non-standard applications.

 2.especially our motorized mast has same advantages as

     manual  telescopic mast, it can be operated electrically

     or manually, and it can be self-locking at any position.

Product Description

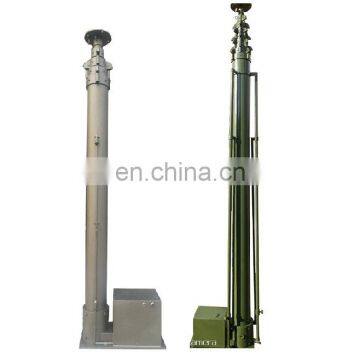

12m self-supporting electro mechanical telescopic lifting mast for lighting and metrology
technical data
main spec.
Closed length:2.2m (Bottom base included)
Extended length: 12m (Bottom base included)
Max loading:40kg
Temperature: working temp:-50--+70C Storage Temp:-65--+70C
main pole in sections
Section No.                 OD                       Thickness
         1                          42mm                       3.0mm
         2                          55mm                       3.0mm
         3                          69mm                       3.0mm
         4                          83mm                        3.0mm
         5                          98mm                       3.0mm
         6                          114mm                     3.0mm
        7                            132mm                    3.0mm

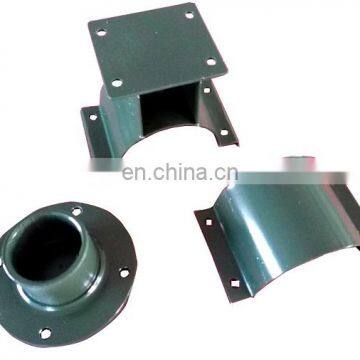

Bottom base
 length*width:450*210mm                   Thickness: 10mm
Accessories
Motor: (AC220v 300w)---------------------------------1 piece
Handle lifting bar----------------------------------------1 piece
Electrical equipment control box---------------------1 unit

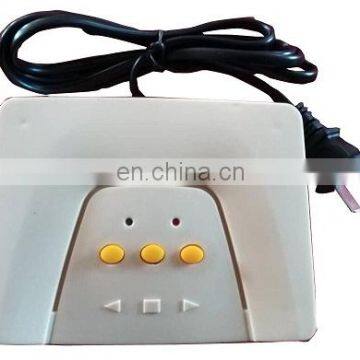

Remote-controller----------------------------------------2 pieces
Material
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
Pulling cord: stainless steel wire(OD:2mm)
Color
bronze in hard anodizing finish
accessories

Motor: (AC220V 250W)-------------------------------1 set
Pulling cord box with handle bars-------------------3 units
Ground anchor-------------------------------------------3 pieces
Handle lifting bar----------------------------------------1 piece
Electrical equipment control box---------------------1 unit
Remote-controller ---------------------------------------2 pieces
Clamp-------------------------------------------------------1 unit

Packing & Delivery
package
plywood packed
one set mast with accessories wrapped by polyester tapes, then packed into a
plywood case
Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

After-sale service
                        Mast with guy wires fixed for ground use                                            Mast with guy wires fixed for vehicle use
A. 1 year warranty

B. Installation Instructions:
     1.if mount on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
     2.Determine the mounting position of telescopic mast if motorized mast hitting one ground anchor per 120 degrees.
     3.Mount lifting handle bar or remote-controller to raise up motorized mast

C. Maintenance
     1.Waterproof and dust proof cover should be put into outdoor storage
     2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
         oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
          it's better  mobil 0W-20 oil
     3.Regularly check the connection parts in normal condition.
Catalog
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.
catalog of some common grade motorized mast as follows
extended height
(m)
No. of section
retracted height
(m)
outer tube range
(mm)
self weight
(kg)
4
3
1.6
60-80
34
5
4
1.65
50-80
38
6
5
1.7
50-90
42
8
6
1.8
40-90
54
10
7
1.95
30-90
58
12
7
2.2
30-90
65
15
8
2.45
30-105
78
18
9
2.7
30-130
102
20
9
2.95
30-130
110
22
9
3.15
30-130
130
25
10
3.4
30-150
154
30
10
3.85
30-150
170
