18m Electric Winch Screw Telescopic Mast for Telecommunication Tower

FOB Price

US$ 3,141.3 - 3,338.52

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents. motorized mast		Place of Origin	Tianjin, China
Model Number	TAL-E18-1.9-50-A

Product Description

18m electric winch screw telescopic mast for Telecommunication tower

Specification 18m electric winch screw telescopic mast for Telecommunication tower
Model No.	TAL-E18-3.0-50-A
Max top payload:	50kgs
Retracted height:	3.0m
Extended height:	18.0m
Main mast sections	6 sections round tube size: Tube Outer diameterwall thickness 1#1503.0mm 2# 1323.0mm 3# 1143.0mm 4# 983.0mm 5# 833.0mm 6# 693.0mm 7# 553.0mm 8# 42*3.0mm
TOP flange size(diameter/thickness):	160mm/6mm, With 4pcs*10mm holes
Bottom Flange size(diameter/thickness): Rectangle shape	230420mm/12mm, with4pcs13mm holes
Working temperature:	-40--+50C
Motor power:	AC220V/300W
Max Wind load:	120km/h
Accessories	1.220v /DC 12Vmotor---------------------------1pc 2.Control box----------------------------------------1pc 3.Handle lifting bar--------------------------------1pc 4.Remote controller-------------------------------2pcs 5.Bottom flange(base)---------------------------1pc 6.TOP flange------------------------------------------1pc 7.Pulling cord box----------------------------------4pcs 8.Ground anchor------------------------------------4pcs 9.tripod--------------------------------------------------1pc

Detailed Images

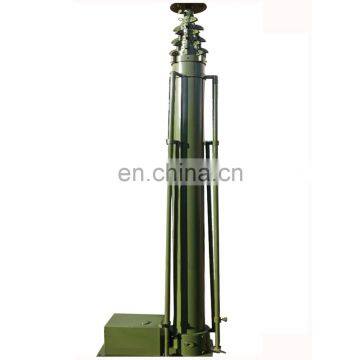

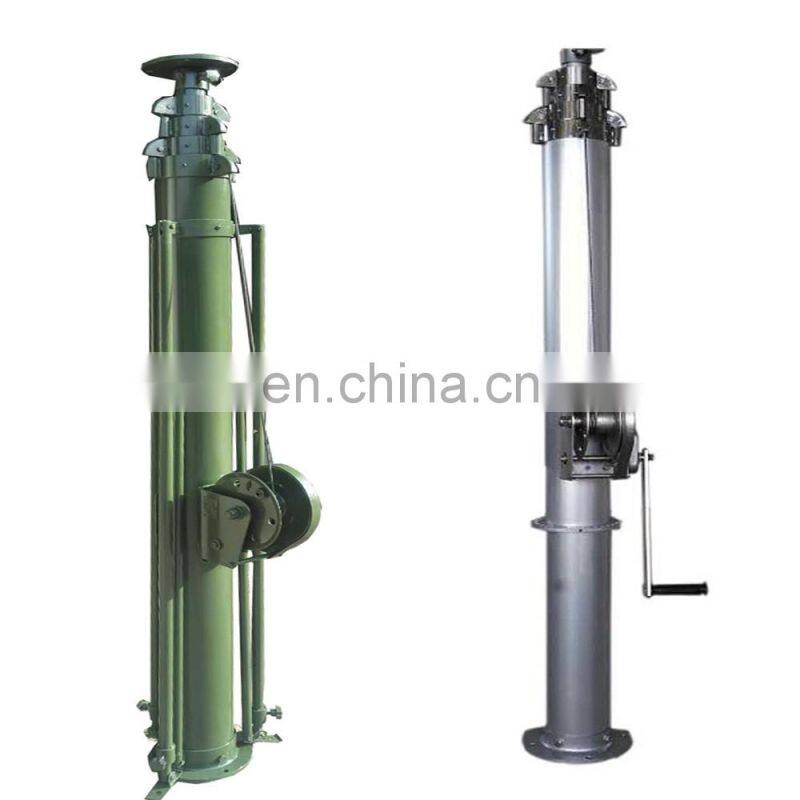

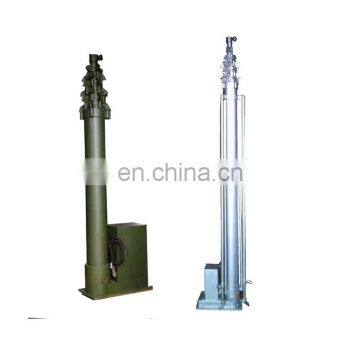

Mast body.

Common color is army green or silver color.

But it can be changed to any color as customers' request.

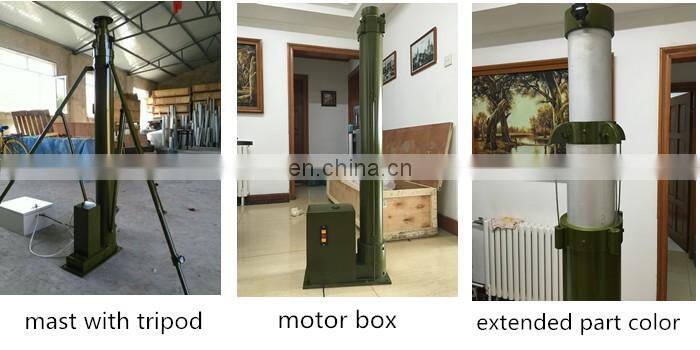

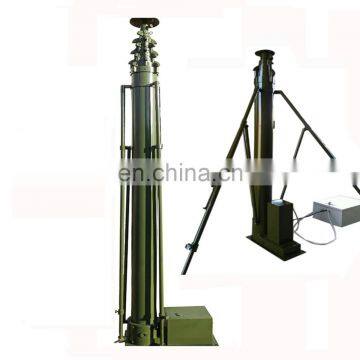

Portable model.

With tripod, more portable for using.

if need vehicle mounted model, we can

give you car clamps for fixing.

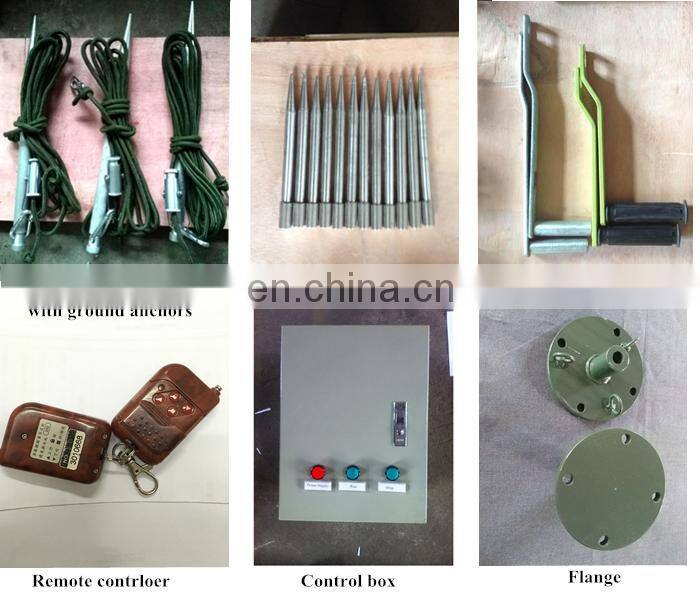

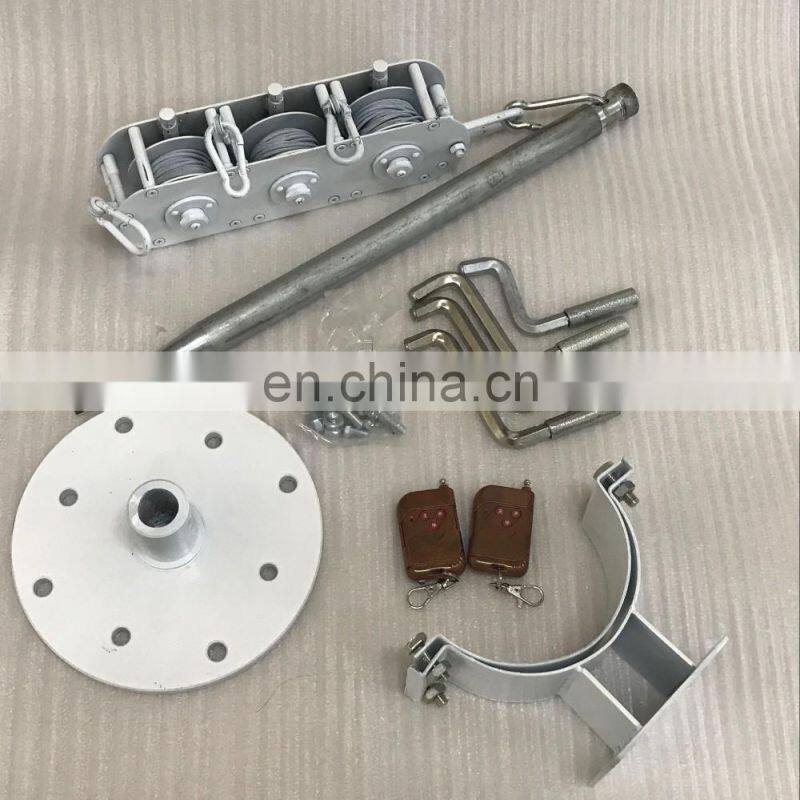

Accessories.

Pulling cord box with three layers steel pulling wire, remote controler, flange,

ground anchor...

Accessories example

18m electric winch screw telescopic mast for Telecommunication tower

Packing & Delivery

package
plywood packed	one set mast with accessories wrapped by polyester tapes, then packed into a plywood case

After-sale service

Mast with guy wires fixed for ground use Mast with guy wires fixed for vehicle use

A. 1 year warranty

B. Installation Instructions:
1.if mount on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if motorized mast hitting one ground anchor per 120 degrees.
3.Mount lifting handle bar or remote-controller to raise up motorized mast

C. Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.

it's better mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.

Catalogue

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade motorized mast as follows

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	self weight (kg)
4	3	1.6	60-80	34
5	4	1.65	50-80	38
6	5	1.7	50-90	42
8	6	1.8	40-90	54
10	7	1.95	30-90	58
12	7	2.2	30-90	65
15	8	2.45	30-105	78
18	9	2.7	30-130	102
20	9	2.95	30-130	110
22	9	3.15	30-130	130
25	10	3.4	30-150	154
30	10	3.85	30-150	170

Our Company

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.

Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans

Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers

an one for one timely information feedback, we have organized an expert team for quality control and inspection system,

we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We

think outside the box and are continually developing new products to meet customer requirements, what you are asking

for is our motive power of task, we wish one of our products will well-meet what you demand.
