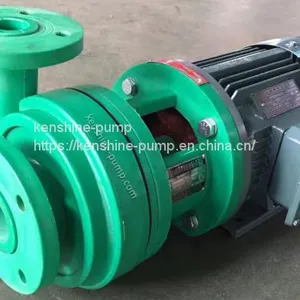

FPZ Polypropylene Self Priming Centrifugal Pump With Shaft Coupling
US$ 300 - 2500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
80FPZ-32
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
ISGD,ISG Vertical Pipeline Centrifugal PumpUS$ 300 - 10000MOQ: 1 Set -
GBF Fluorine Lined Pipeline Centrifugal PumpUS$ 300 - 6000MOQ: 1 Set
-
LW Vertical Sewage Sewage Pump Explosion Proof Effluent PumpUS$ 300 - 10000MOQ: 1 Set
-
D,DG Horizontal Multistage Centrifugal PumpUS$ 650 - 10000MOQ: 1 Set
-
ISWH Stainless Steel Supply Water Pump Feeding Water PumpUS$ 300 - 10000MOQ: 1 Set
Brand Name
kenshine-pump
Place of Origin
China
Model Number
80FPZ-32
Application
Other, Chemical liquid transfer
Fuel
Other, electric motor
Power
Electric
Usage
Other, chemical fluid transfer
Theory
Centrifugal Pump
Standard or Nonstandard
Standard
Structure
Single-stage Pump
Pressure
Low Pressure
FPZ Series chemical resistant transfer self priming centrifugal pump is the horizontal pump with self priming performance. It is made of reinforced polypropylene plastic (RPP) which is suitable for the liquids with temperature from -10℃ to 90℃ and PVDF which are suitable for the liquids from -10℃ to 120℃. Shaft seal is the corrosion resistance mechanical seal with no leak (WB Series). Impeller and shaft are in-lined for the steady operation and so as not to let the liquids into shaft.

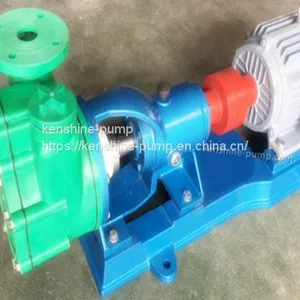

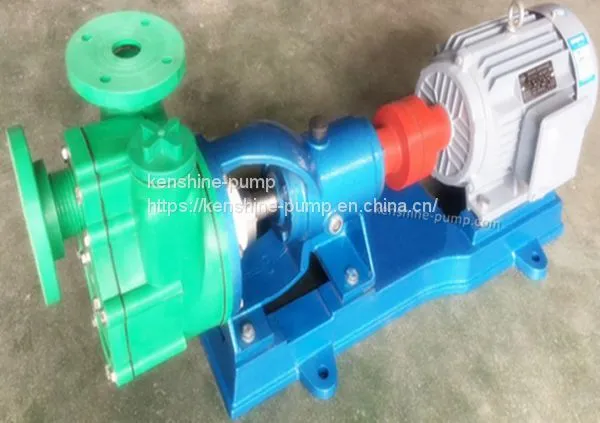

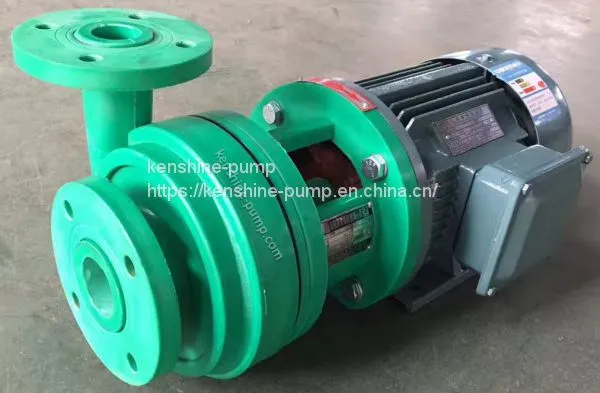

Connection method for the pump and motor has two types. One is close couple which has compact structure and high efficiency. The other is coupling which is convenient to disassemble pump.
FPZ pumps are widely used in chemical industry and pharmacy and food and metallurgy and environment protection and sewage dealing and inorganic salt etc.
| Model | Caliber | Flow rate | Head | Suction height | Speed | Voltage | Motor power | ||
| Inlet | Outlet | m³/h | M | M | RPM | v | KW | ||
| 25FPZ-10(D) | 25 | 20 | 2.5 | 10 | 3 | 2900 | 220 | 0.55 | |
| 32FPZ-11(D) | 32 | 25 | 3.4 | 11 | 3 | 2900 | 380 | 0.75 | |
| 40FPZ-18 | 40 | 32 | 11 | 18 | 4 | 2900 | 380 | 1.5 | |
| 50FPZ-20 | 50 | 40 | 13 | 20 | 4 | 2900 | 380 | 2.2 | |
| 65FPZ-25 | 65 | 50 | 26 | 25 | 4 | 2900 | 380 | 4 | |
| 80FPZ-32 | 80 | 65 | 50 | 32 | 4 | 2900 | 380 | 7.5 | |
| 100FPZ-32 | 100 | 80 | 100 | 20 | 4 | 2900 | 380 | 11 | |
