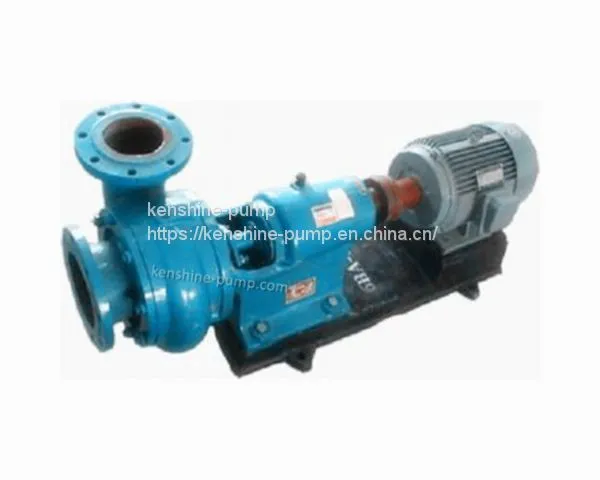

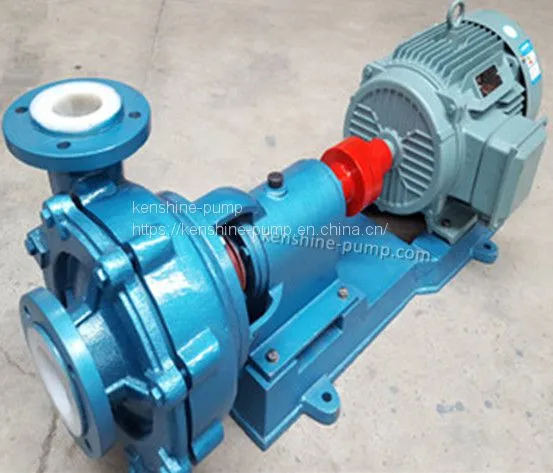

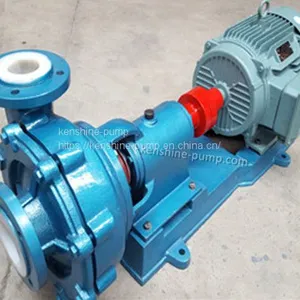

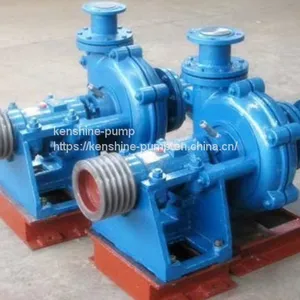

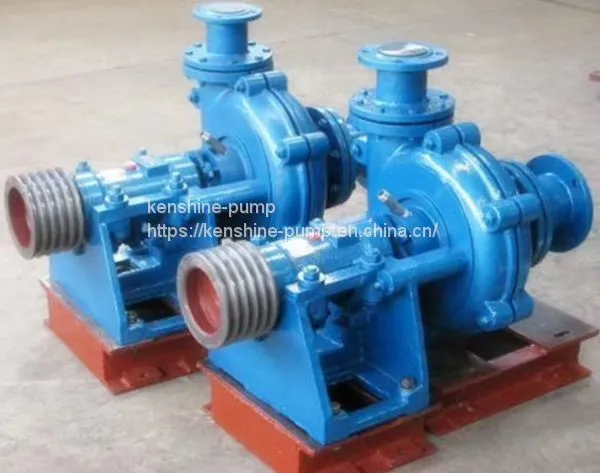

ZJ Horizontal Slurry Centrifugal Pump
US$ 650 - 30000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
ZJ65-27A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
10 days
Related Products
-
FPZ Polypropylene Self Priming Centrifugal Pump With Shaft CouplingUS$ 300 - 2500MOQ: 1 Set -
ISGD,ISG Vertical Pipeline Centrifugal PumpUS$ 300 - 10000MOQ: 1 Set
-
GBF Fluorine Lined Pipeline Centrifugal PumpUS$ 300 - 6000MOQ: 1 Set
-
LW Vertical Sewage Sewage Pump Explosion Proof Effluent PumpUS$ 300 - 10000MOQ: 1 Set
-
D,DG Horizontal Multistage Centrifugal PumpUS$ 650 - 10000MOQ: 1 Set
Brand Name
kenshine-pump
Place of Origin
China
Model Number
ZJ65-27A
Application
Sewage
Fuel
Other, electric motor
Power
Electric
Usage
Other, Slurry
Theory
Centrifugal Pump
Standard or Nonstandard
Standard
Structure
Single-stage Pump
Pressure
Low Pressure
ZJ type pump is single stage single suction centrifugal slag slurry pump, the pump body adopts internal and external double shell structure, the pump shell is vertically open, according to needs, the pump outlet position can rotate at 45 degrees interval 8 different angles for installation and use.
This series of products are characterized by high efficiency, low vibration, low noise, reliable operation, long service life and convenient maintenance.
ZJ pump can be widely used in electric power, metallurgy, coal, building materials and other industries to transport slurry containing solid particles, Such as thermal power plant hydraulic ash removal, metallurgical concentrator slurry transport, coal washing plant slurry and heavy medium transport. The maximum allowable slurry body weight concentration CW is: 45% ash (slag) slurry and coal slurry, 60% ore slurry and heavy medium. It can be run in series according to user needs.
ZJ series slurry pump can adopt two kinds of shaft seals: auxiliary impeller packed combination seal and mechanical seal
Model meaning:
ZJ 100 - I - A36
100: outlet diameter is 100mm
ZJ: slurry pump
I: single-stage slurry pump, II means two stages slurry pump
A: number of impeller blades. A is 5 blades, B is 4 blades, C is 3 blades, F is 6 blades
36: impeller diameter 36cm
| Model | Motor power (KW) | Flow (m3/h) | Head (m) | Speed (rpm) | Efficiency (%) | NPSH(m) | Max.grain diameter (mm) | Weight (KG) |
| 350ZJ-F100 | 220-560 | 860-2339 | 37-63 | 490-590 | 77.6 | 4.4-5.8 | 96 | 5465 |
| 300ZJ-A100 | 185-450 | 464-1826 | 15.3-65.2 | 300-590 | 81.1 | 3 | 88 | 5265 |
| 300ZJ-A95 | 185-400 | 441-1735 | 13.8-58.8 | 300-590 | 78.1 | 3 | 88 | 5220 |
| 300ZJ-A90 | 185-560 | 505-1844 | 21.2-79.9 | 400-730 | 82.8 | 3.9 | 85 | 5005 |
| 300ZJ-A85 | 160-450 | 477-1742 | 19-71 | 400-730 | 79.8 | 3.8 | 85 | 4965 |
| 300ZJ-A70 | 185-630 | 635-2333 | 16-77 | 490-980 | 80.4 | 3.9 | 92 | 3560 |
| 300ZJ-A65 | 160-500 | 589-2166 | 14-66 | 490-980 | 77.4 | 3.7 | 92 | 3531 |
| 300ZJ-A56 | 75-250 | 395-1560 | 9.7-46 | 490-980 | 80.9 | 3.5 | 96 | 3030 |
| 250ZJ-A103 | 250-710 | 402-1573 | 30-110 | 400-730 | 74.5 | 2.8 | 69 | 5085 |
| 250ZJ-A96 | 185-560 | 403-1466 | 25-94 | 400-730 | 77.8 | 3.5 | 69 | 5035 |
| 250ZJ-A90 | 160-450 | 378-1374 | 22-82 | 400-730 | 73.8 | 3.4 | 69 | 4980 |
| 250ZJ-A85 | 220-800 | 376-1504 | 30-129 | 490-980 | 77 | 3.5 | 76 | 4530 |
| 250ZJ-A83 | 220-800 | 367-1469 | 29-123 | 490-980 | 75.5 | 3.5 | 76 | 4514 |
| 250ZJ-A80 | 200-710 | 354-1416 | 27-115 | 490-980 | 73.5 | 3.4 | 76 | 4490 |
| 250ZJ-A78 | 185-630 | 415-1796 | 21-103 | 490-980 | 75 | 3.2 | 76 | 4474 |
| 250ZJ-A75 | 132-560 | 300-1480 | 20.8-98 | 490-980 | 77.5 | 3 | 72 | 3480 |
| 250ZJ-A73 | 132-500 | 292-1441 | 20-92.4 | 490-980 | 76.5 | 3 | 72 | 3466 |
| 250ZJ-A70 | 110-450 | 280-1381 | 18-85 | 490-980 | 75 | 2.9 | 72 | 3446 |
| 250ZJ-A68 | 110-450 | 272-1342 | 17-80 | 490-980 | 73.5 | 2.7 | 72 | 3432 |
| 250ZJ-A65 | 90-315 | 299-1249 | 15-71 | 490-980 | 76.9 | 3 | 72 | 3020 |
| 250ZJ-A63 | 90-315 | 200-1211 | 14-67 | 490-980 | 76 | 3 | 72 | 3008 |
| 250ZJ-A60 | 75-560 | 276-1153 | 13-61 | 490-980 | 73.9 | 2.8 | 72 | 2991 |
| 200ZJ-A85 | 160-560 | 221-907 | 32-133.7 | 490-980 | 70.5 | 2.8 | 54 | 4110 |
| 200ZJ-A75 | 110-355 | 225-900 | 23-103 | 490-980 | 74 | 3 | 56 | 3070 |
| 200ZJ-A73 | 110-355 | 219-876 | 21.6-98 | 490-980 | 73.1 | 3 | 56 | 3056 |
| 200ZJ-A70 | 90-315 | 205-976 | 19.4-86 | 490-980 | 75.6 | 2.8 | 56 | 2465 |
| 200ZJ-A68 | 90-315 | 199-948 | 18.3-82 | 490-980 | 74.6 | 2.8 | 56 | 2453 |
| 200ZJ-A65 | 75-250 | 235-950 | 16.5-72 | 490-980 | 79.6 | 2.5 | 62 | 2323 |
| 200ZJ-A63 | 75-250 | 228-921 | 15-68 | 490-980 | 78.6 | 2.5 | 62 | 2311 |
| 200ZJ-A60 | 75-185 | 218-870 | 14-62 | 490-980 | 83.5 | 2.5 | 62 | 2223 |
| 200ZJ-A58 | 55-185 | 211-841 | 13-58 | 490-980 | 82.5 | 2.5 | 62 | 2214 |
| 150ZJ-A71 | 75-220 | 142-552 | 22-94 | 490-980 | 69.8 | 2.4 | 48 | 2263 |
| 150ZJ-A70 | 55-185 | 93-401 | 20-91 | 490-980 | 62.3 | 2 | 37 | 2245 |
| 150ZJ-A65 | 75-200 | 150-600 | 17-76 | 490-980 | 70.8 | 2.5 | 48 | 2223 |
| 150ZJ-A63 | 55-185 | 146-582 | 16-71 | 490-980 | 69.8 | 2.5 | 48 | 2211 |
| 150ZJ-A60 | 45-160 | 135-550 | 15-64 | 490-980 | 75.9 | 2.5 | 48 | 2203 |
| 150ZJ-A58 | 37-132 | 131-532 | 14-59.3 | 490-980 | 74.9 | 2.5 | 48 | 2033 |
| 150ZJ-C58 | 37-110 | 134-596 | 12.8-61 | 490-980 | 69 | 2 | 75 | 2063 |
| 150ZJ-A57 | 37-110 | 95-427 | 13-56.3 | 490-980 | 67.8 | 1.8 | 32 | 2023 |
| 150ZJ-A55 | 37-110 | 124-504 | 12.3-53.4 | 490-980 | 73 | 2.3 | 48 | 2019 |
| 150ZJ-A50 | 30-75 | 115-460 | 9.5-43 | 490-980 | 76.8 | 2.5 | 48 | 1735 |
| 150ZJ-A48 | 22-75 | 111-442 | 8.7-39.7 | 490-980 | 75.8 | 2.5 | 48 | 1728 |
| 150ZJ-C42 | 30-132 | 142-550 | 12-63 | 700-1480 | 77.1 | 2.2 | 69 | 1605 |
| 100ZJ-A50 | 30-160 | 85-360 | 20-100 | 700-1480 | 69.6 | 2.5 | 34 | 1475 |
| 100ZJ-A46 | 30-132 | 79-331 | 17-85 | 700-1480 | 67.6 | 2.3 | 34 | 1461 |
| 100ZJ-A42 | 22-90 | 66-275 | 15-70.8 | 700-1480 | 71 | 2.5 | 35 | 1075 |
| 100ZJ-A39 | 18.5-75 | 61-255 | 12.6-61 | 700-1480 | 69 | 2.4 | 35 | 1064 |
| 100ZJ-B42 | 22-90 | 83-365 | 12.7-67 | 700-1480 | 71.6 | 2.5 | 40 | 1085 |
| 100ZJG-B42 | 15-75 | 45-205 | 12.6-70 | 700-1480 | 63.2 | 1.8 | 48 | 1080 |
| 100ZJ-A36 | 15-55 | 61-245 | 9.7-50 | 700-14802 | 71.6 | 2 | 32 | 1010 |
| 100ZJ-A33 | 11-45 | 56-225 | 8.2-41.6 | 700-1480 | 69.6 | 1.8 | 32 | 1003 |
| 80ZJ-A52 | 30-160 | 51-242 | 22-110 | 700-1480 | 56.3 | 2.1 | 21 | 1465 |
| 80ZJ-A42 | 18.5-75 | 61-204 | 14-70 | 700-1480 | 66.7 | 2.5 | 24 | 1053 |
| 80ZJ-A39 | 15-55 | 57-189 | 12-61 | 700-1480 | 65 | 2.4 | 24 | 1042 |
| 80ZJ-A36 | 11-45 | 46-190 | 9.6-51 | 700-1480 | 67.7 | 2.5 | 24 | 980 |
| 80ZJ-A33 | 7.5-37 | 43-174 | 8.0-43.2 | 700-1480 | 65.7 | 2.3 | 24 | 973 |
| 65ZJ-A30 | 4-15 | 23-79 | 7.4-34.8 | 700-1460 | 63.5 | 2 | 19 | 504 |
| 65ZJ-A27 | 3-11 | 20-71 | 6-28.2 | 700-1460 | 61.5 | 1.8 | 19 | 500 |
| 50ZJ-A50 | 22-90 | 27-111 | 22.3-110 | 700-1480 | 45 | 3 | 13 | 1378 |
| 50ZJ-A46 | 15-55 | 23-94 | 17-86 | 700-1480 | 44.7 | 1.4 | 14 | 1082 |
| 50ZJ-A33 | 4-18.5 | 12-54 | 7.7-43 | 700-1480 | 42 | 2.9 | 13 | 537 |
| 40ZJ-A19 | 1.5-11 | 8-35 | 12.8-57 | 1430-2930 | 58.8 | 1.3 | 11 | 173 |
| 40ZJ-A17 | 0.55-7.5 | 4.5-23 | 9.4-44.6 | 1400-2900 | 52.4 | 2.5 | 11 | 121 |
