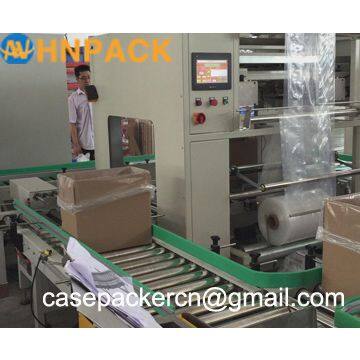

Help CenterHennopack MB40 Poly Bag Inserter Machine for Palm Oil or Fats Poly Bag Inserter
Related Products
-
Hennopack MB40P Plastic Bag Inserter Machine for Margarine pe Bag InserterUS$ 25000 - 30000MOQ: 1 Unit -
Hennopack MB40P Carton Box Bag Inserter Machine Wit CEUS$ 25000 - 30000MOQ: 1 Unit
-
2019-hot-sale-fully-auto-conveyorized-turntable Pallet Stretch WrapperUS$ 10000 - 25000MOQ: 1 Set
-
Hennopack-online Turntable Pallet Wrapper With Top Cover MachineUS$ 10000 - 25000MOQ: 1 Set
-
Hennopack MS303 Full-Automatic-In-line-Electric-Turntable-Pallet Stretch Wrapper MachineUS$ 10000 - 25000MOQ: 1 Set
This machine adopts the servo control, it can be connected to the front automatic carton erector, and the rear automatic cartoning machine realizes unmanned automatic packaging. The automatic bag inserter MB-40P can automatically complete the carton input, positioning, film output, back cover, box entry, film cutting, sides folding, and carbon output. Applicable to food, solid oil, oil, edible oil, condiments, biscuits, snack foods, bulk food, raw materials, beverages, chemicals, hardware, screws, electronics, rubber, plastic, plastic, and another carton bagging.
-High Applicability: it can be combined with the carton erectors and different packaging equipments, and is suitable for various packaging methods.
-Bagging accurately: the way of entering the carton can be divided into the upper part, the bottom part.
-Simple operation: stable performance and easy adjustment.
-Better protect the products in cartons: the advantage of the bag inserting is that it can protect the product, avoid product moisture, wetting and other factors affecting product quality.
| Model | MB40P Ploy bag inserter |
|---|---|
| Carton Box Size | L(200-500)mm*W(200-350)*H(150-400)mm（accept customized） |
| Insert speed | 7-8 cases per minute（different size, different speed） |
| Power Supply | 220V-380V,50Hz, |
| Power | 1.5kw |
| Air pressure | 6-7 bar |
| Air consumption | 100NL per minute |
| Poly film width | 460-840mm |
| Input Table Height | 450±50mm |
| Machine Size | L:2100mm*W:1800*H:1800mm |
| Machine Weight | 700kg |
| Machine Color | Milky white body, aluminum frame, blue plexiglass（accept customized） |
Specification:
1 Cartons can be added at any time without stopping the machine;
2 The bag will be sealed twice on the bottom, that could avoid the bag broken;
3Manually adjust to change the carton sizes (finishing in 2-3minutes);
4Advanced photoelectricity induction control system;
5Rationally designed, the forming, folding and sealing process are accomplished simultaneously;
6 Widely applied on the electronic industry,toy and food industry;
7 Heavy duty built, both steel and stainless steel types.
