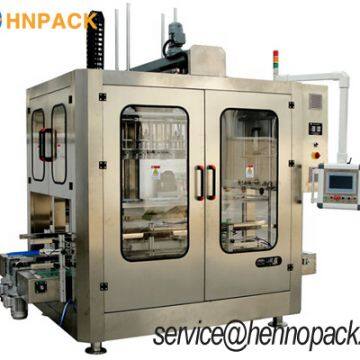

Juice Bottle, Water Bottle Case Packing Machine for Mineral Water Bottle Carton Packer

Case Packer is aimed at characteristics and applications in beverage and food industry,which features small space occupation, high efficiency,low stoppage rate and easy to operation.It is applicable for 18000～60000BPH.

Applications:

Case Packer is used for beverage, beer, food, non-food glass, plastic bottles and medicine industries packages.

 Product Description

1. Description of MZP Seies Fully Automatic Case Packer Machines :

· Bottle-feeding Part (bottle-pressing configuration), quick and stable bottle-pressing, it will be safe and efficient with SMC or AIRTAC cylinder

· Bottle-feeding Part (bottle-checking configuration I), full bottle checking, it is very convenient and easy to change.

· Bottle-feeding Part (bottle-checking configuration II) , It will be more safe and efficient to adopt SICK sensor to make second time checking and counting.

· Power unit (chain wheel unit), It has high bearing ability and conveys stable with RS80 chain transmission and bilateral symmetry design.

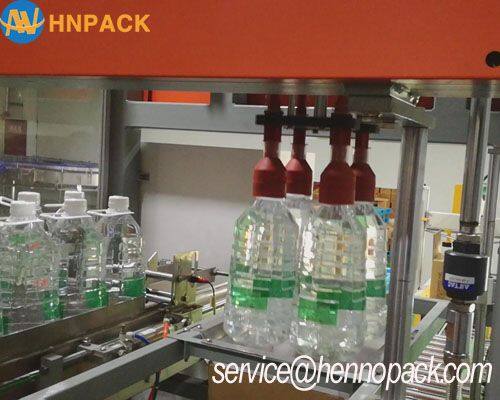

· Bottle-gripping Unit I, various series of gripper apply to different material, height and caliber bottle, It will be easy to change bottle type because gripper is easy to change.

· Bottle-gripping Unit II, Main beam adopt 120*80 high tensile overloading industrial aluminum materail, It will be more stable and energy efficient with SMC or AIRTAC air source components.

Power supply:3P AC380V+10% 50Hz 3KW

Protection lever:electric appliance cabinet IP54 / push button IP65 / low voltage electric element IP67

Worktable:customer order

Air Source:6-7kg

Packing speed:(according to customer requirements)

Suitable for:Metal can, glass bottle, boxes, cups.

Container pattern:3x4 and 2x3 (customize made)

Working noise:≤75DB

Environmental condition:Humidity≤98%, Temperature20-40℃

Machine size:2500 x 2000 x3500mm

Training :

We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipments, control and operation of the equipments. The training lessons are finished in the process of installation and adjustment. Through training, users' technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time.
