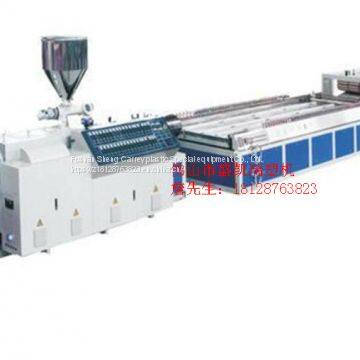

Basic introduction of PVC cabinet board production line

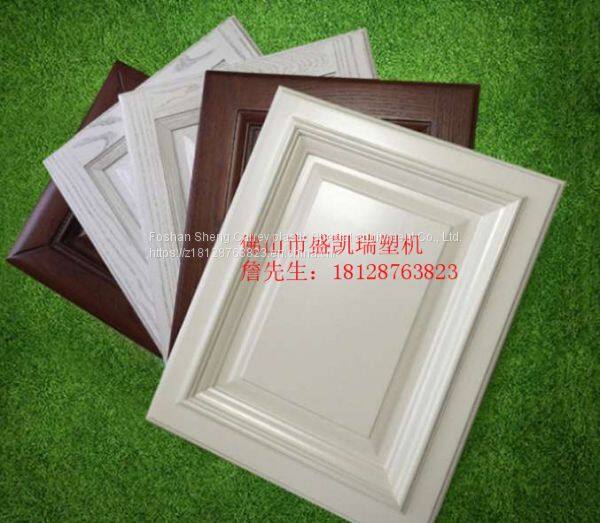

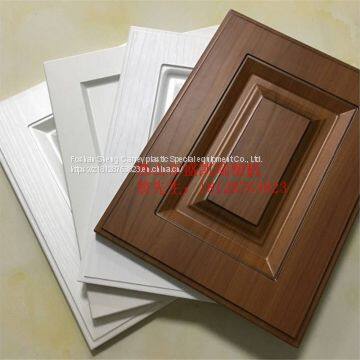

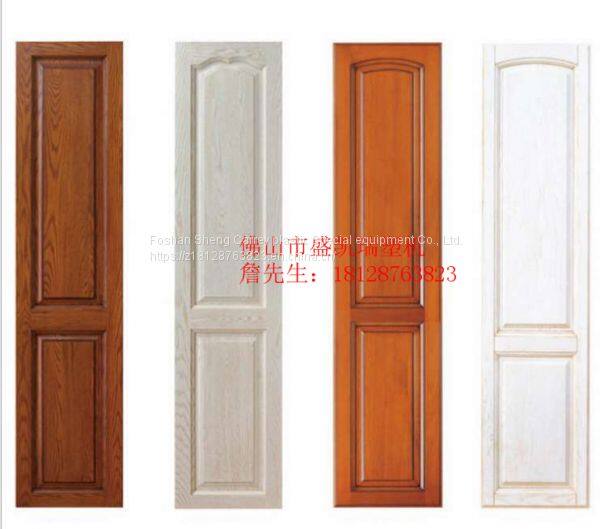

PVC wardrobe door panel equipment features

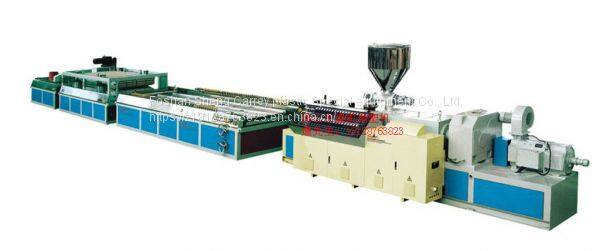

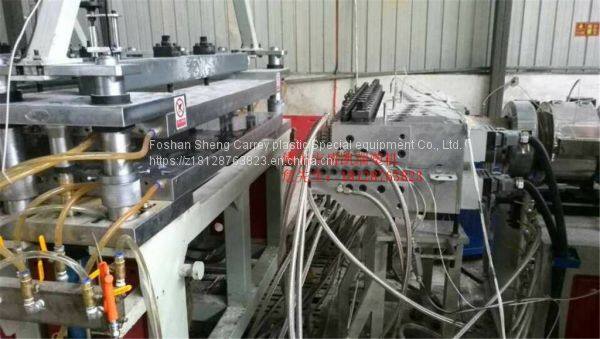

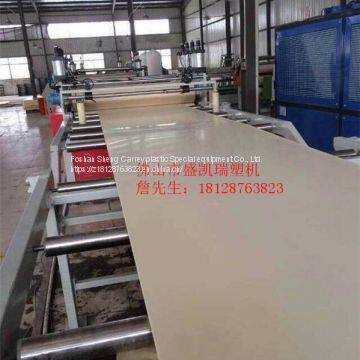

The production line adopts specially designed SJZ80/SJZ92 conical twin screw extruder, adopts dc speed regulating drive, imported temperature control instrument, with wide speed regulating range, high temperature control precision, easy and reliable operation and other advantages.The auxiliary machine is composed of vacuum shaping platform, air-cooled cooling bracket, 8 sets of roller tractor, crosscutting machine and blanking platform.Equipped with large forced cooling device to ensure the plate shaping effect.8 sets of roller tractor adopt precision reducer motor and frequency converter, which has the advantages of reasonable structure, large traction force and stable traction.The vertical and horizontal cutting machine has the advantages of reliable and accurate operation and high cutting precision.Auxiliary unit adopts programmable computer control or domestic famous brand control system, the control of the whole machine is reliable and stable.
PVC cabinet board extruder main machine configuration:
First, it is for foaming board production line (for example, 80 mm, L=1220 mm, delta =3 ~ 20 mm).
SJZ80/156 conical twin screw extruder
Foam board mold (1000/1350mm according to customer choice)
Foam mold thermostat
Vacuum setting machine
Air cooled cooling bracket
8 sets of matching roller tractors
Crosscutting machine
Dust collection device
Blanking platform
Electric control
Ii. Auxiliary equipment (optional)
Model 500/1000 high-speed mixing unit, automatic powder feeder
crusher
Model 400 high-speed eddy current multi-purpose mill
Model 500 high-speed multi-purpose eddy current mill
Model 600 high-speed multi-purpose eddy current mill
Dust removal system
