Gantry Four Axis Drilling Machining Center

Standard Package

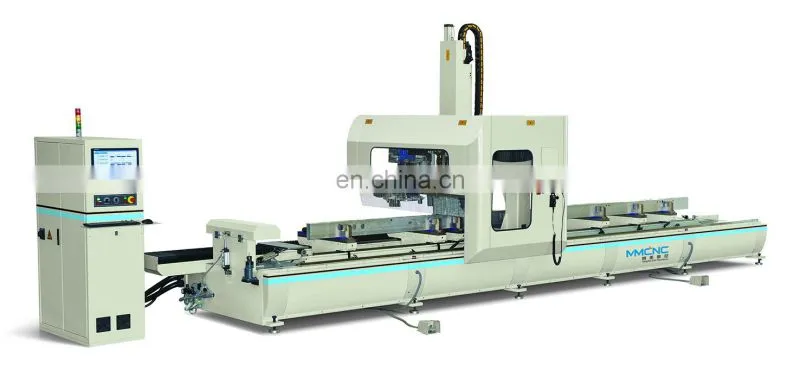

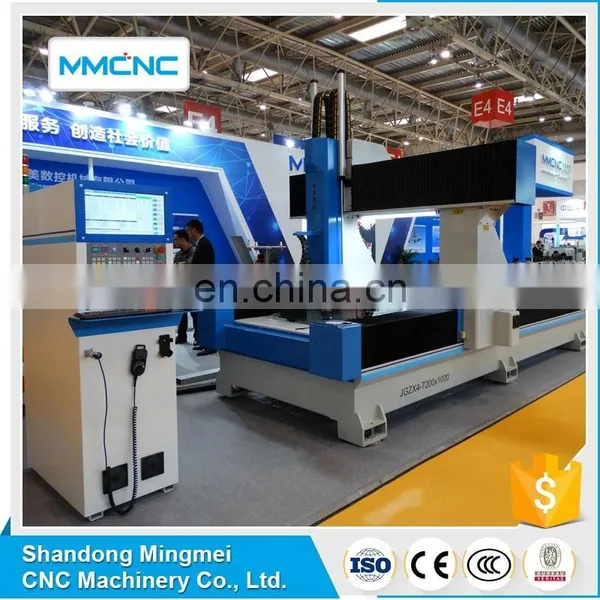

LM4-CNC-6000  Gantry Four Axis Machining Center

Feature:

1.  Adopt PA CNC control system, have the function of clear interface and easy operate.

2. With the professional COM software, the clamps can moving automatically according to require.  Machine can achieve high efficient 3D 4 axis processing work.

3. CAD patterns can input to system directly, Can draw the patterns directly on CAD platform in system , then create the NC file, editing to achieve processing.

4.  Single positioning and dual positioning design, separately loading and unloading profile without stop machine, has more high processing efficiency.

5. Lubrication adopt intermittent supply system, blades cooling adopt system control spray pump device.

6. Machine can be used on processing aluminum , aluminum wood composite profiles, copper profile and other light metal.

7. One time clamping can complete finish the profile of multi-sided drilling, tapping, chamfering, milling, milling slot and shaped hole processing.

8. Adopt imported high-precision ball screw, rail and rack to assure the high precision and stability of machine.

9. Adopt YASKAWA servo motor and driver, original Italian HSD automatic tool change spindle, make sure machine high precision.

10. Two sets of tool magazine, one is disc tool magazine 8 sets, another is linear tool magazine 8 sets, total 16 sets

11.The head adopts fully enclosed safety structure, to make sure the safety of the operator.

Technical Parameter

Power supply:380v,50Hz

Working pressure: 0.6~0.8 Mpa

Total power: 16 kw

Spindle power:9.5 kw

Spindle rotary speed: 24000rpm

Spindle maximum output torque:6.4 NM

Air consumption:

Tool magazine: 8+8

Tool shank model: ISO30

Max tool length: 100mm

Clamps No.: 8

Processing travel:X-6000

                             Y-500

                             Z-300

Feeding speed: X  50m/min

                          Y 25m/min

                          Z 10m/min

Processing size: 6000x500x300

Lubrication : automatic

Cooling :Oil mist pump

Overall dimension:9000x2230x3060

Weight: 5700kg

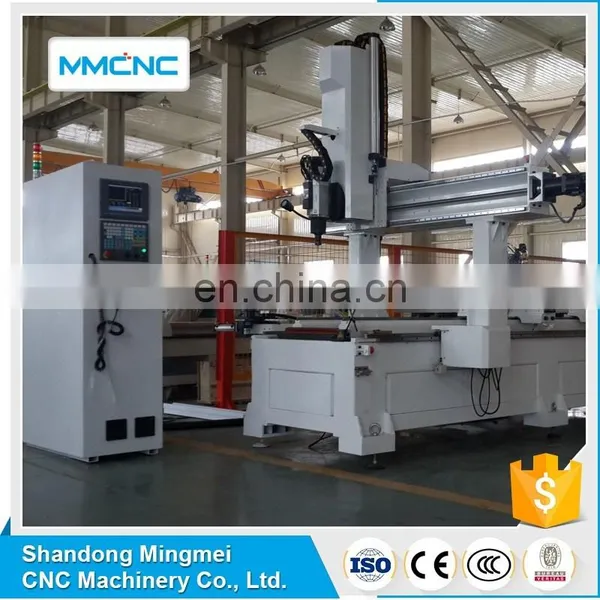

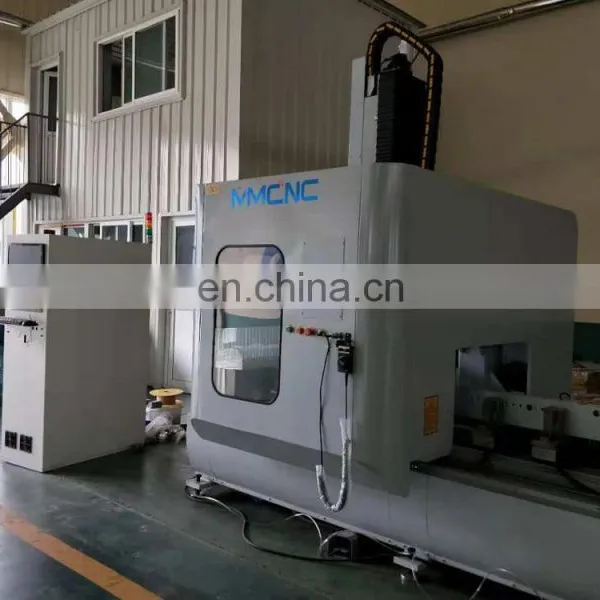

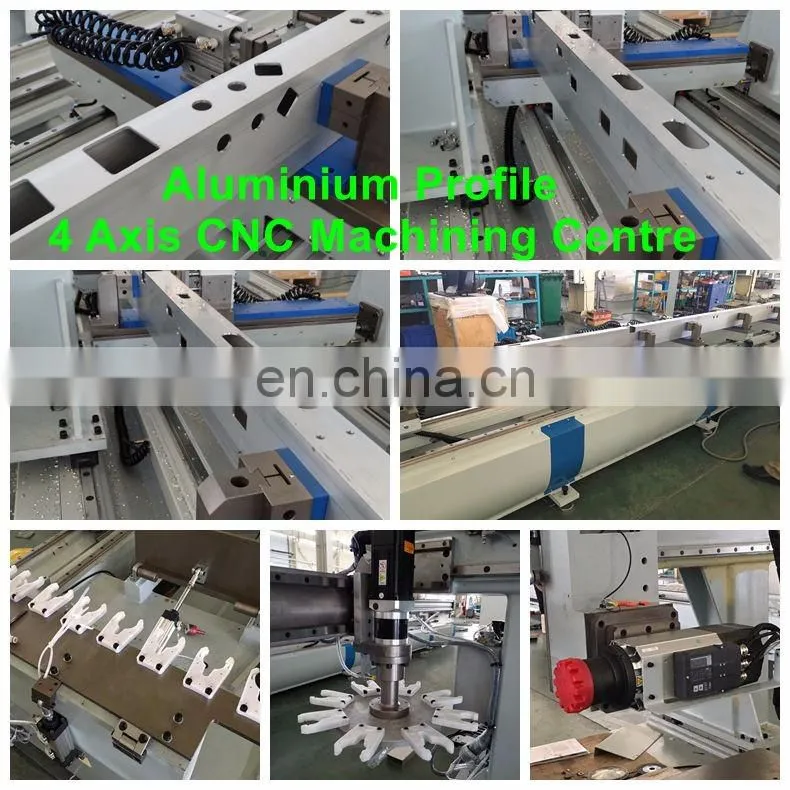

Equipment  pictures

Please contact me if necessary.
