Multi-head Combination Drilling Machine
LZZ4-13
1. Machine Features
1.1 Used for drilling holes on aluminum profiles and curtain wall profiles.Apply to volume-produce
1.2 Max processing profile section size is 250 x 250 mm,max processing length is 5000mm
1.3 Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
1.4 Feeding system adopts airdraulic-damping cylinder,which ensured smooth feeding
1.5 Imported PLC control system with steady capability
2. Technical Parameter:
2.1 Power supply 380V 50Hz
2.2 Cutting motor power 4 x 1.1 kw
2.3 Max distance between two drilling holes 500mm
2.4 Min distance between each group holes 300mm
2.5 Worktable size 300x 200 mm
2.6 Drilling head feeding travel 125mm
2.7 Feeding pressure 0.5~0.8MPa
2.8 Max processing profile section size 250 x 250mm
2.9 Overall dimension 5500x1100x1800 mm
3.0 Weight about 1175 kg
2.1 |
Power supply |
380V 50Hz |
2.2 |
Cutting motor power |
4 x 1.1 kw |
2.3 |
Max distance between two drilling holes |
5000mm |
2.4 |
Min distance between each group holes |
300mm |
2.5 |
Worktable size |
300x 200 mm |
2.6 |
Drilling head feeding travel |
125mm |
2.7 |
Feeding pressure |
0.5~0.8MPa |
2.8 |
Max processing profile section size |
250 x 250mm |
2.9 |
Overall dimension |
5500x1100x1800 mm |
3.0 |
Weight about |
1175 kg |

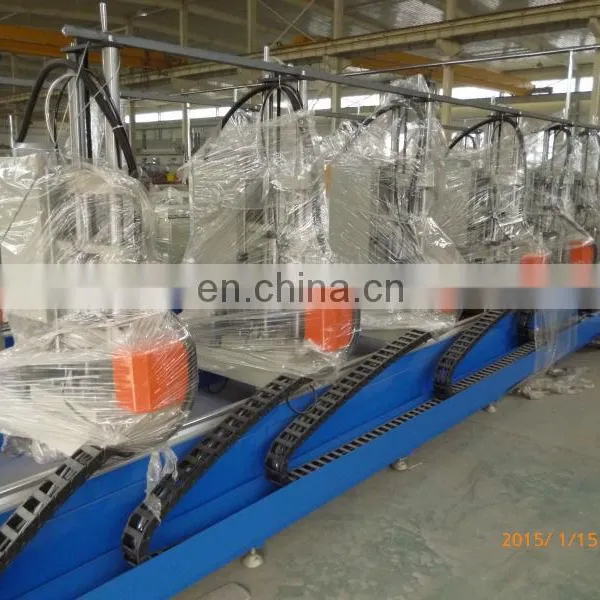

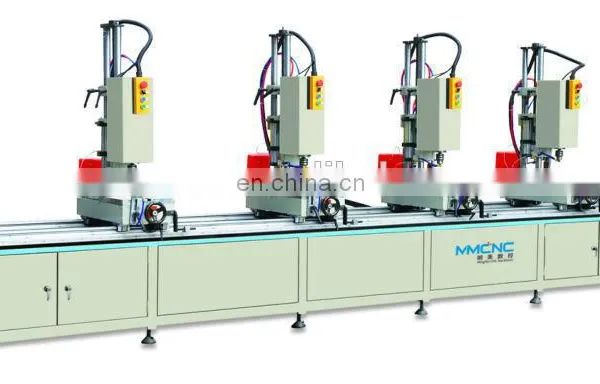

3. Product photos

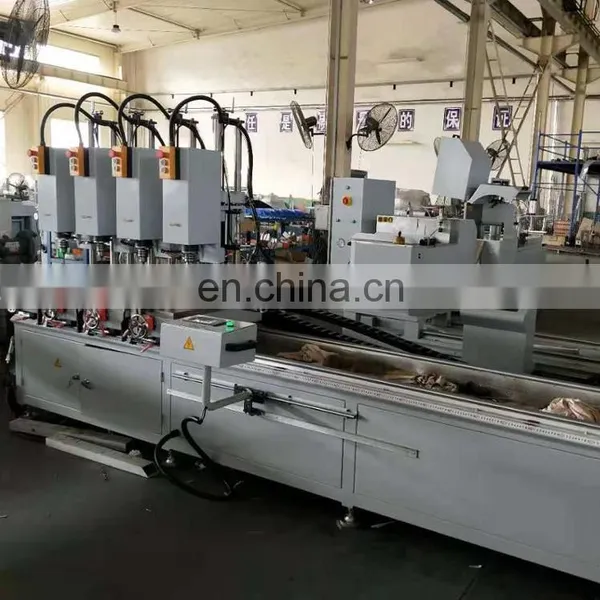

4. Company shows
