Multi-head Combination Drilling Holes Equipment
- 5 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
You May Like
Product Details
Brand Name | MMCNC | Place of Origin | Shandong, China | |
Model Number | LZZ4-13 | Certification | ISO CE | |
Weight | 1175KG | |||
Dimension(L*W*H) | 5500*1100*1800 | Voltage | 380V | |
Condition | New | Power(W) | 4*1.1 | |
CNC or Not | CNC | Drilling Speed | 1800r/prm |
Standard Package
Product Description

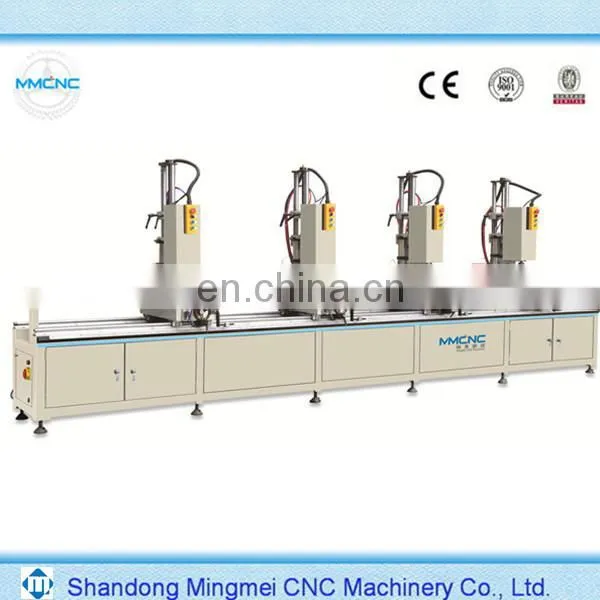

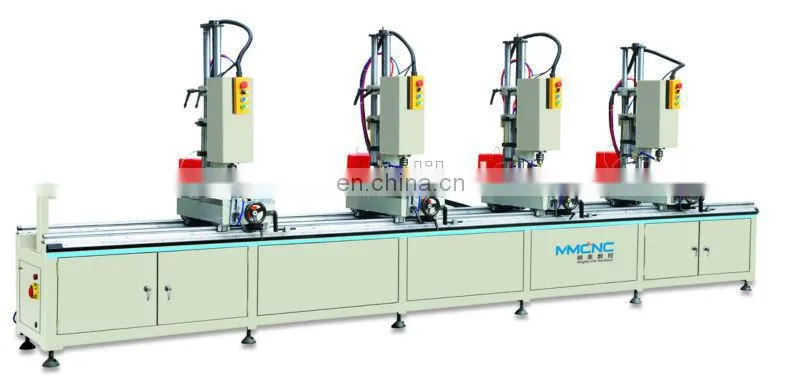

Multi-head Combination Drilling Machine
LZZ4-13
1. Machine Features
1.1 Used for drilling holes on aluminum profiles and curtain wall profiles.Apply to volume-produce
1.2 Max processing profile section size is 250 x 250 mm,max processing length is 5000mm
1.3 Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
1.4 Feeding system adopts airdraulic-damping cylinder,which ensured smooth feeding

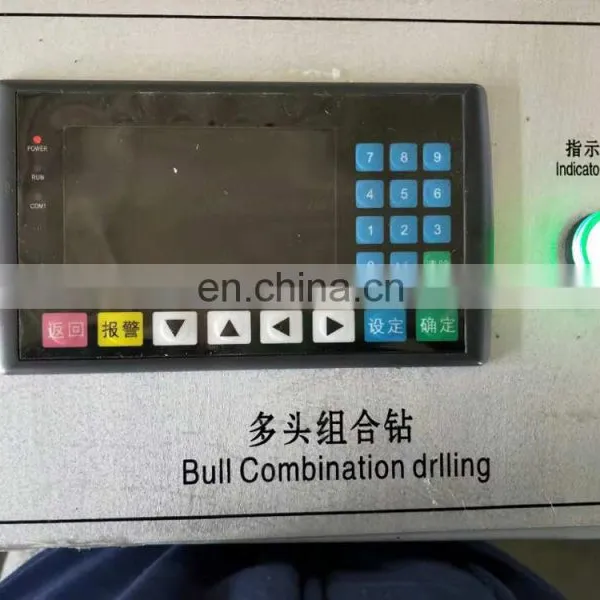

1.5 Imported PLC control system with steady capability
2. Technical Parameter:
2.1 Power supply 380V 50Hz
2.2 Cutting motor power 4 x 1.1 kw
2.3 Max distance between two drilling holes 500mm
2.4 Min distance between each group holes 300mm
2.5 Worktable size 300x 200 mm
2.6 Drilling head feeding travel 125mm
2.7 Feeding pressure 0.5~0.8MPa
2.8 Max processing profile section size 250 x 250mm
2.9 Overall dimension 5500x1100x1800 mm
3.0 Weight about 1175 kg
2.1 | Power supply | 380V 50Hz |
2.2 | Cutting motor power | 4 x 1.1 kw |
2.3 | Max distance between two drilling holes | 5000mm |
2.4 | Min distance between each group holes | 300mm |
2.5 | Worktable size | 300x 200 mm |
2.6 | Drilling head feeding travel | 125mm |
2.7 | Feeding pressure | 0.5~0.8MPa |
2.8 | Max processing profile section size | 250 x 250mm |
2.9 | Overall dimension | 5500x1100x1800 mm |
3.0 | Weight about | 1175 kg |

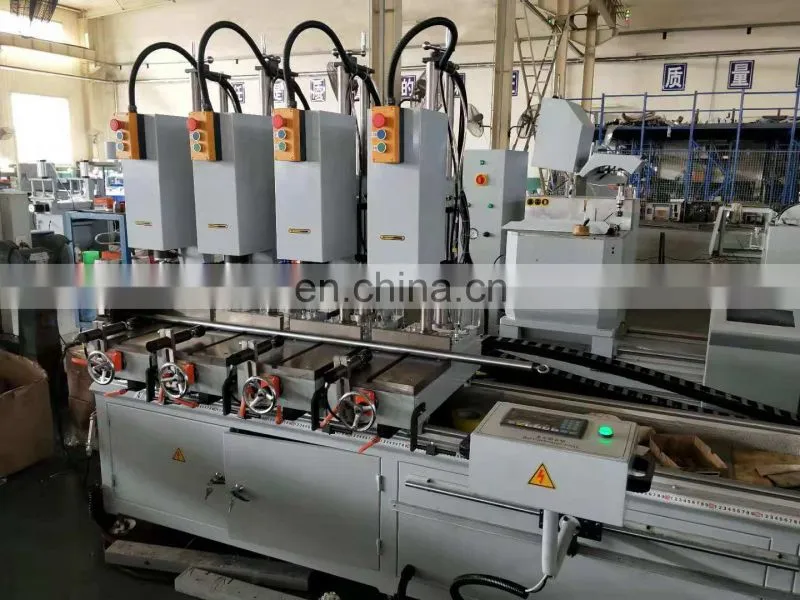

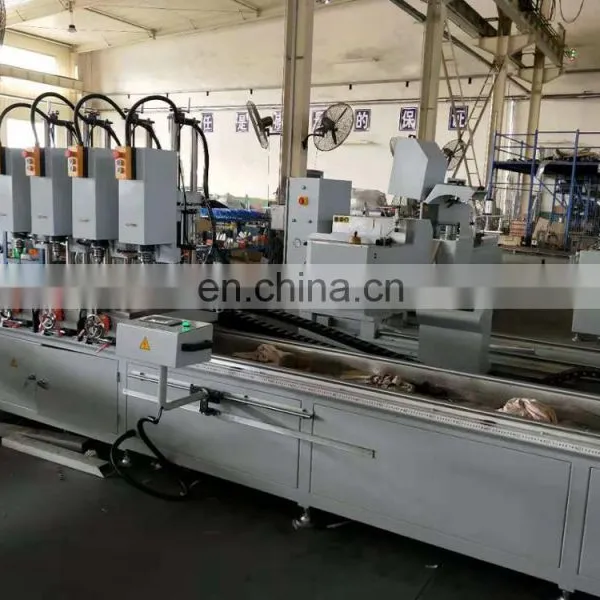

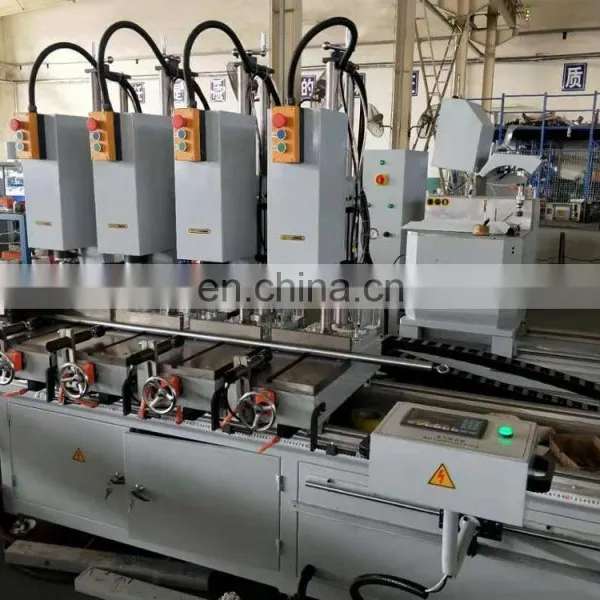

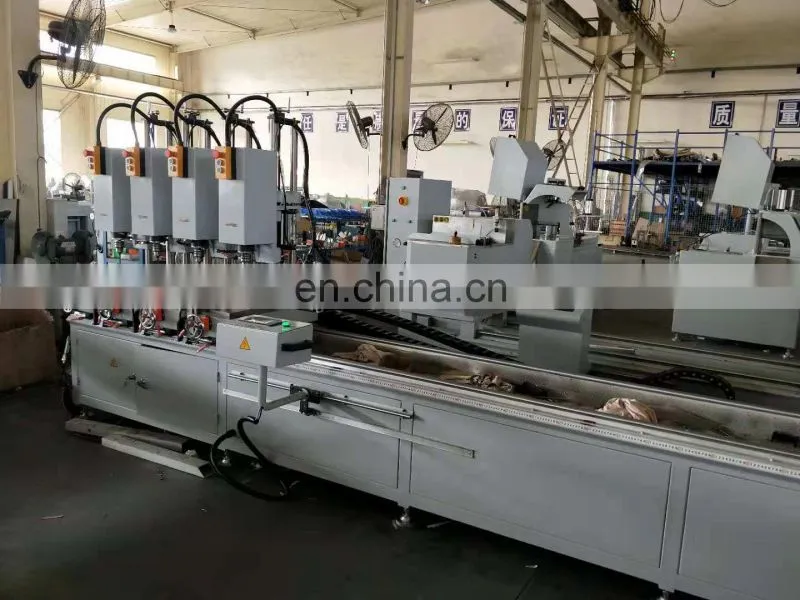

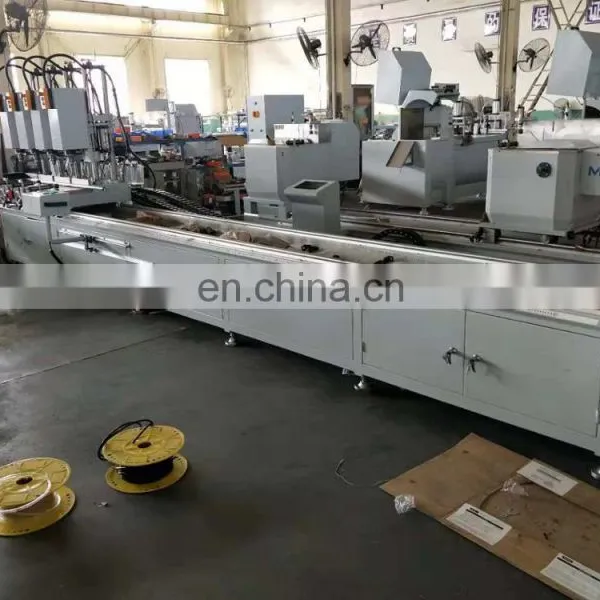

3. Product photos
4. Company shows
Company Profile

Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
