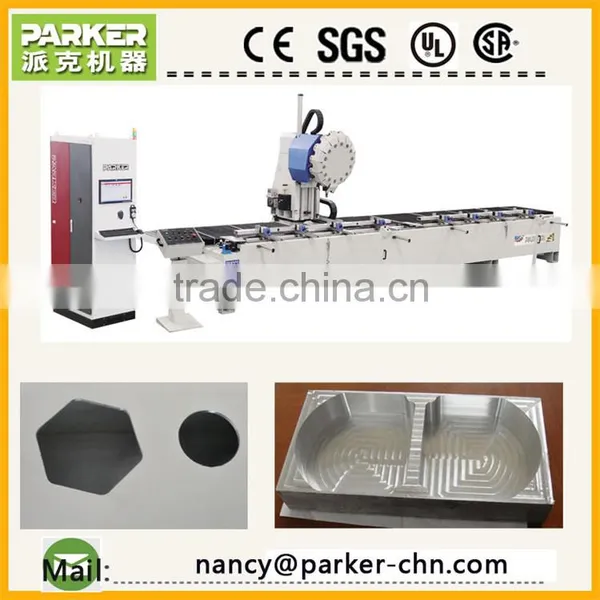

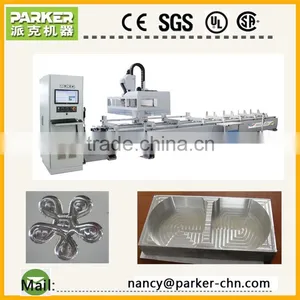

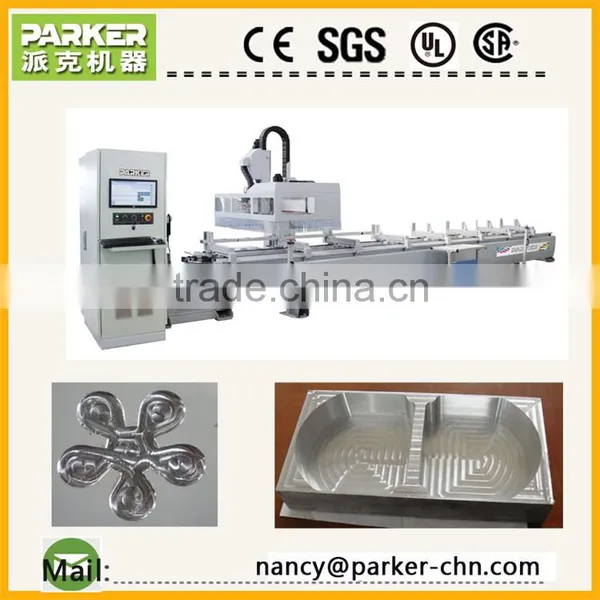

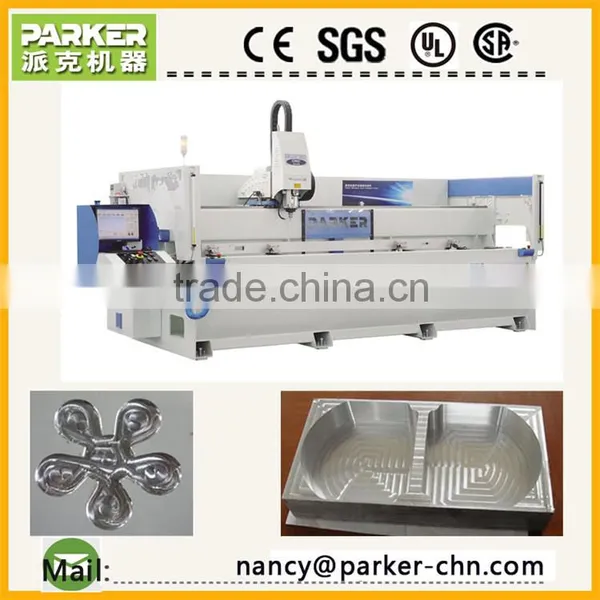

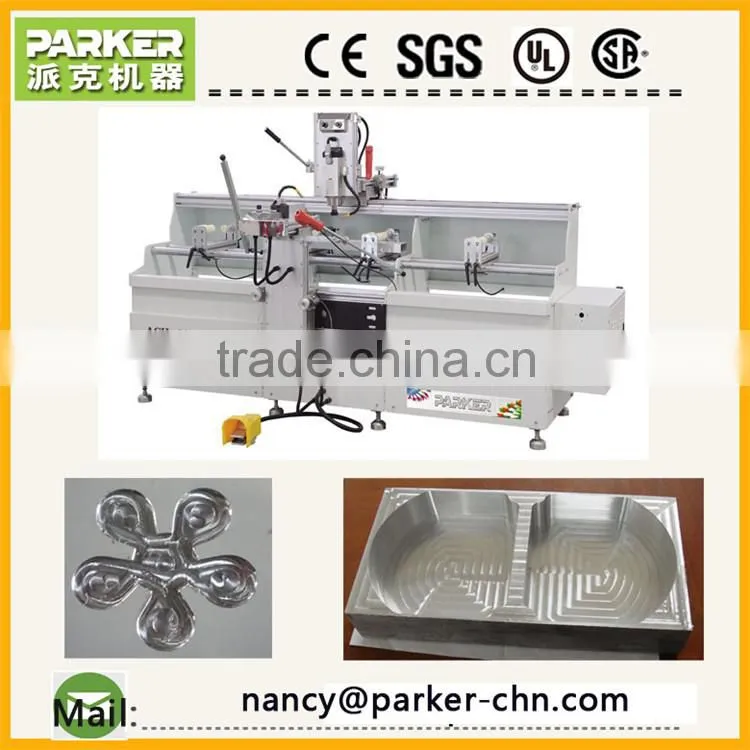

Help CenterAluminum Window-door and Wall Drilling and Milling Equipment DMCC3H
Related Products
-
Aluminum Window-door Processing Center DMCC3NegotiableMOQ: 1 -
Aluminum Window-door and Wall Curtain Processing Center DMCC82US$ 40,000 - 80,000MOQ: 1 Set
-
Aluminum Window-door and Wall Curtain Processing Center DMCC6US$ 50,000 - 100,000MOQ: 1 Set
-
Automatic Window Curtain Wall Milling and Drilling Machine CenterNegotiableMOQ: 1 Unit
-
Parker Curtain Wall Drilling Milling Tapping Processing CenterNegotiableMOQ: 1 Volt
Main feature:
Features:
1. The machine is suitable for processing varieties of holes and slots for diversified aluminum doors and windows.
2. It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.
3. It adopts Italian HSD high-speed motorized spindle to ensure the machine runs steadily with lower noise and better cutting ability.
4.It adopts vegetable oil micro crystal line cooling system to improve the tool life without poison and pollution.
5.The rotary workbench can change the position among -90°,0° and +90° arbitrarily, one time clamping can finish milling for three sides.
6.It adopts PA control system from Italy, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.
| X axsis | 3200mm |
| Y axsis | 300mm |
| Z axsis | 200mm |
| X axis running speed | 0~140m/min |
| Y axis running speed | 0-75m/min |
| Z axis running speed | 0-75m/min |
| Cutter station | 1 cutters |
| Air supply | 0.5-0.8Mpa |
| Voltage | 380V 50HZ |
| Total power | 6kw |
| Clamp station | 4 |
| Lubrication and cooling | half dry coolling system |
| Positioning accuracy | ±0.02mm |
| Overall dimension | 4525x1630x1900mm |
| Processing dimension | 160x160x3500mm |
| Processing feature | one time clamp can finish processing tree sides of the profile |
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
1.Sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
