Chinese Producer Automatic Aluminum Cutting Machine Window Door Frame Cutting Machine
- Qingdao port
- T/T Credit Card
You May Like
-
Aluminum and PVC Any Angle Single Head Mitre Saw Machine Arbitrary Angle Cutting Machine
-
Used Machine for Cutting Aluminum for Sales
-
Aluminium Window Machine Automatic Window Making Machine Automatic Cutting Machine
-
CNC Integrated Three Axis Aluminum Double Head Cutting Saw Machine
-
Aluminium Door and Window Making Machine Aluminium Doors Window Manufacturing Machine
-
Aluminum Profile CNC Integrated Double Head Cutting Saw Machinery
Product Details
| Brand Name | DECALUMA | Model Number | LJZ2C-500*4200A |
Product Description

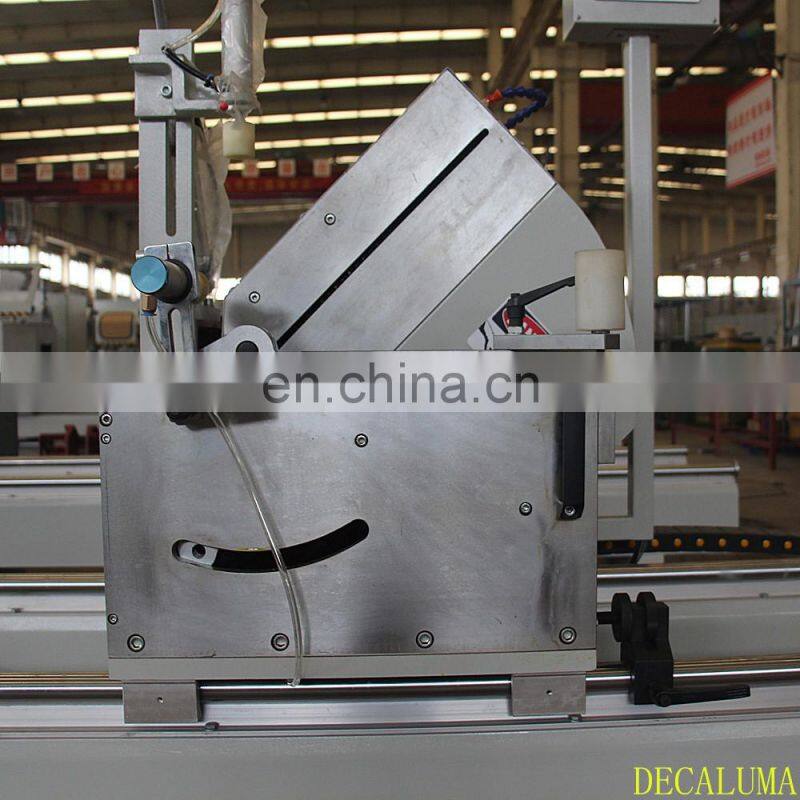

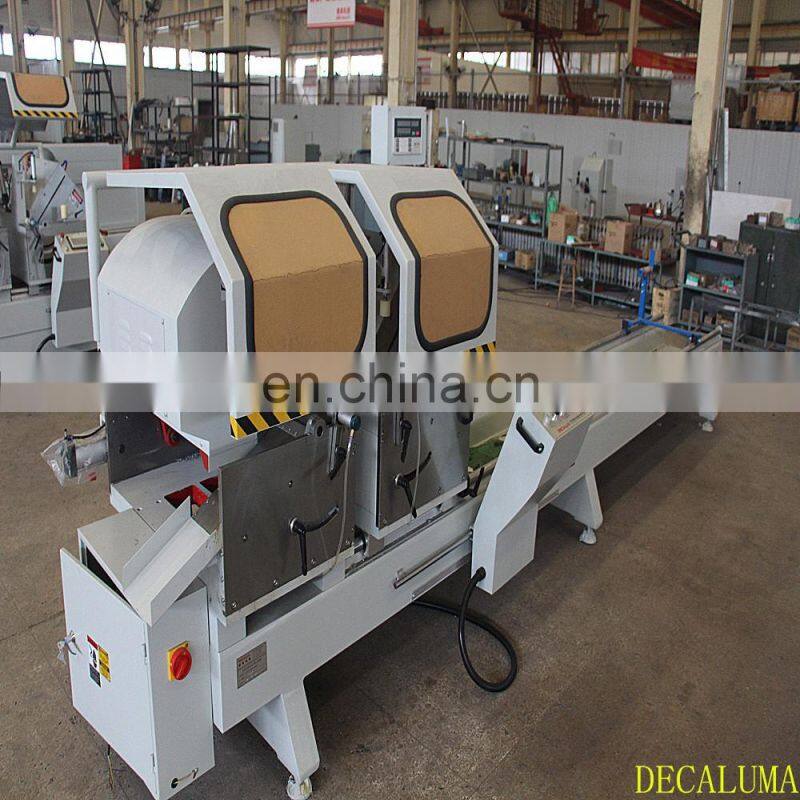

Chinese Producer Automatic Aluminum Cutting Machine Window Door Frame Cutting Machine LJZ2C-500*4200A
We are the factory.
We can provide competitive price and spot supply.
We offer door-to-door service .
1. Designed for Aluminum, PVC and Curtain-wall profile accurate Cutting
2. Digital display system equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and convenient man operation work.
3. Linear bearing system in moving and feeding device ensures the accurate the machine running and cutting, and stable performance.

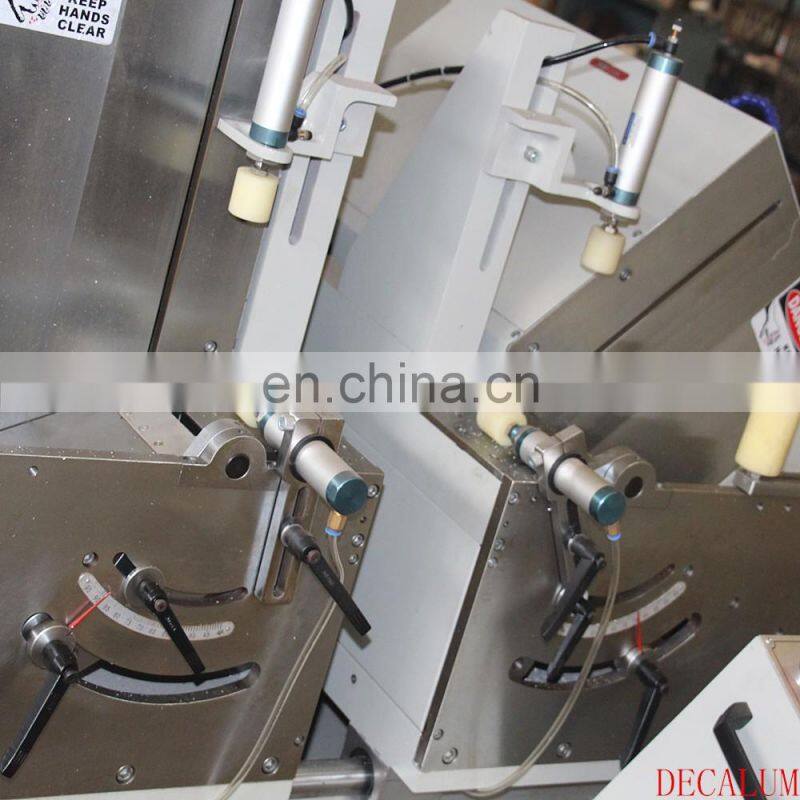

4. Two heads can work together or lonely, when together work ,one time can cut off the required length and angle.
5. Hydraulic cylinder ensured the stable speed adjusting and saw blade working.

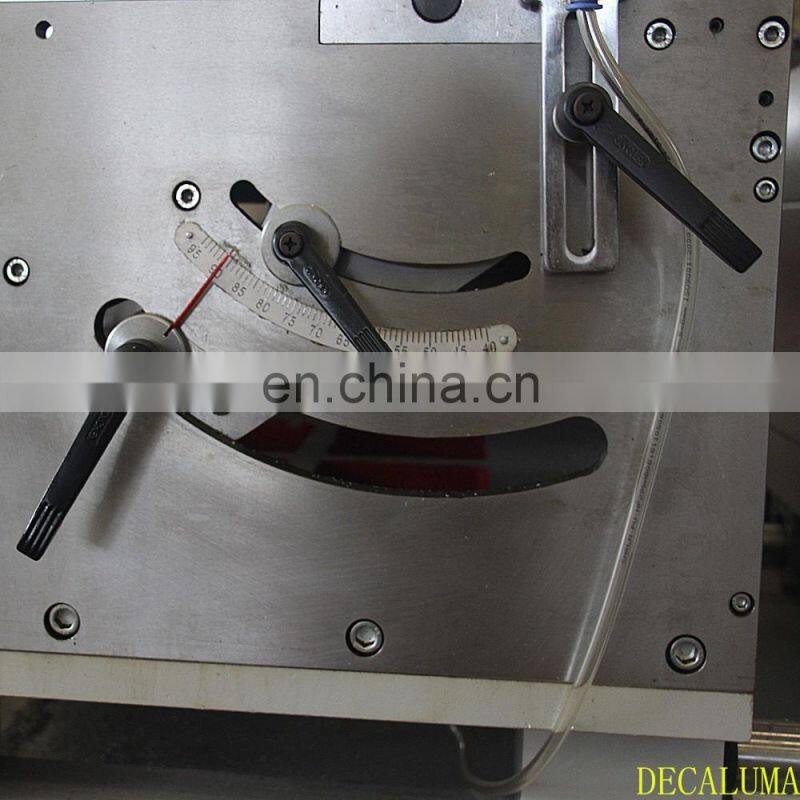

6. Automatic angle cutting can be changed in 45° and 90°.
7. Carbide saw blade for a high quality cutting and life.
Safety system of shield can ensure the safe operation of man working.
Power supply | Made to order |
Motor power | 2*2.2KW |
Motor rotary speed | 3400r/min |
Operation air pressure | 0.5~0.8Mpa |
Saw blades length | 400~4200mm |
Air consumption | 200L/min |
Cutting length | Max. 4200mm,Min. 400mm |
Cutting width | Max. 135mm |
Cutting angle | 90°,45° |
Cutting profile surface plane | ≤0.10mm |
Cutting angle tolerance | Ra12.5 μm |
Saw blade height max | 300mm*90°;200mm*45° |
Feeding speed | Stepless timing 0~3m/min |
Saw blade specification | φ500mm×4.4mm×φ30mm Z=120 |
Overall Dimension | 5530*1750*1950mm |
Weight | 1850kg |
aluminum cutting machine
aluminum cutting machine
aluminum cutting machine
aluminum cutting machine
aluminum cutting machine
Note:
If you want to know more about our machine video and operation process, welcome to log in YOUTUBE and search DECALUMA (our brand logo).
1.Sample service:
Our engineer is available to travel abroad, help the installation, maintenance and training staff.
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
We support Trade Assurance on Alibaba, which is a free payment protection service for buyer regarding product quality and transaction security.
JINAN DEGA MACHINE CO.,LTD.(decaluma)is located in Jinan city, Shandong province, China, which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.
Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine, we have Export &Import right.
2. When you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
4. Are you trading company or manufacturer?
Manufacturer(OEM)
5. Quick details about our company
Company Name | JINAN DEGA MACHINE CO.,LTD. |
Year established | 2006 |
Address | No.389,TIANCHEN ROAD,JINAN CITY,250101 CHINA |
Business type | Manufacturer |
Product range | CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage | Using advanced solidworks design platform |
Management certificate | ISO9001,national patent |
Fair we attend | Shanghai and Beijing international windows show |
E-catalog | available |
MOQ | 1 set |
Payment terms | TT or L/C |
Shipping port | Qingdao port |
