Home > Products > punch machine > AMD-357 6mm Steel Plate Hydraulic Cnc Turret Punch Machine

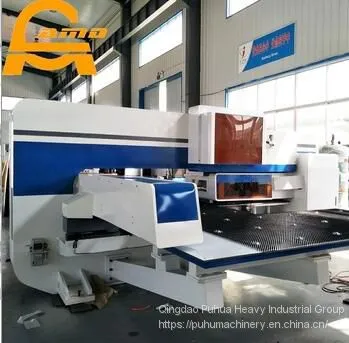

AMD-357 6mm Steel Plate Hydraulic Cnc Turret Punch Machine
- QINGDAO
- T/T L/C
- 15 days
You May Like
Product Details
| Place of Origin | China | Condition | New | |
| CNC or Not | CNC |
Product Description
plate punch machine
Item No.: 16
Our company mainly produces CNC punch press machine
Feature:
1. Adopts Siemens 3/4 axis CNC special system and match up digital AC servo motor to make it fast and reliable;
2. Fuselage is O type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation;
3. With the second positioning function, can achieve without dead zone processing;
4. The transmission system use the international brand with high precision, big guide the ball screw, linear guide rail are high precision and good performance;
5. Main pneumatic components, electric components, hydraulic components and transmission adopt perfectly;
6. Use AMADA standards casting integrated thick turret mold disc and standards internationally general thick molds.
Technical parameters
Specification | Unit | AMD-357 |
Transmission mode | / | hydraulic |
Punch force | KN | 300 |
Power rating | KW | 20 |
Processing sheet size | MM | 2500*1250 |
Processing sheet thickness | MM | ≤6 |
Max. Punch diameter | MM | Ø88.9 |
Sheet moving speed | M/MIN | 60 |
Punching frequency | HPM | 600 |
Hole accuracy | MM | ±0.1 |
Number of stations in turret disc | No. | 16/24/32 |
Turret rotational speed | RPM | 300 |
Controlled axis | No. | 3/4 |
Rotating location | No. | 0/2 |
Air pressure | Mpa | ≥0.8 |
Outline Dimension | MM | 4490*5300*2110 |
Machine Weight | T | 12/13 |
