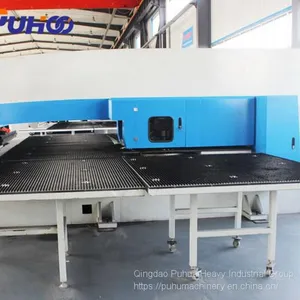

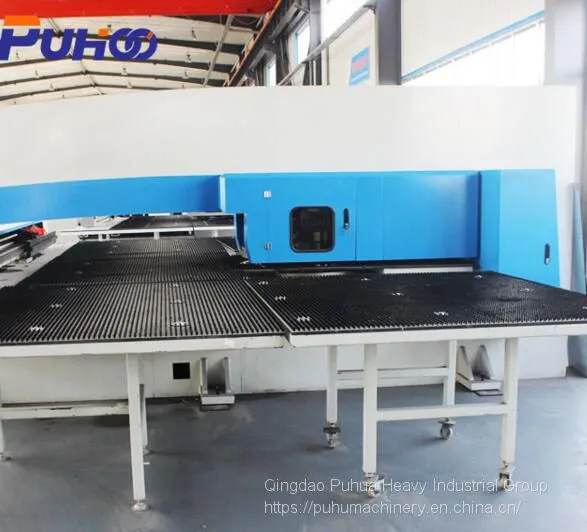

Help CenterServo Type Cnc Turret Punching Machine
Related Products
-
AMD-357 Closed Type Hydraulic Cnc Turret Punch MachineUS$ 1 - 100000MOQ: 1 Set -
Hydraulic Thick Plate CNC Turret Punching MachineNegotiableMOQ: 1 Set
-
CNC Turret Punching MachineNegotiableMOQ: 1 Set
-
Steel Plate CNC Punching MachineNegotiableMOQ: 1 Set
-
Servo CNC Turret Punching MachineNegotiableMOQ: 1 Set
mechanical cnc punching machine, China competitive auto punch machine
Item No.: 5
Technical parameters:
Specification |
Unit |
Model Specification |
|
AMD-SE2510NT |
AMD-SE3510NT |
||
Punch Force |
KN |
200 |
300 |
Max. Processing Size |
mm |
1250*2500 |
1250*2500 |
1250*5000 |
1250*5000 |
||
1500*5000 |
1500*5000 |
||
Max. sheet Thickness |
mm |
4 |
6 |
Max. Punch Hit |
hpm |
1600 |
1600 |
Max. Traversing Speed |
m/min |
80 |
80 |
Turret Speed |
rpm |
40 |
40 |
Hole Accuracy |
mm |
±0.1 |
±0.1 |
Max. Punch Diameter |
mm |
88.9 |
88.9 |
Number of stations in turret |
a |
24/32 |
24/32 |
Air Pressure |
mpa |
0.8 |
0.8 |
Controlled Axis |
No. |
5(X,Y,C,P) |
5(X,Y,C,P) |
power rating |
KW |
30 |
35 |
Outline Dimension |
Mm |
4490*5300*2110 |
4490*5300*2110 |
Machine Weight |
Kg |
13 |
14 |
Trade Information | |
MOQ |
1set |
Settlement Currency |
USD, RMB, EUR. |
Trade mode |
FOB (FCA), CIP, CFR, CIF, DDU, DDP, Turnkey. |
Payment term |
30% deposit by T/T, the balance paid before delivery or L/C at sight, etc |
Delivery time |
Within 20-60 days according to different type equipment. |
